Vision sensor · SC2000E series

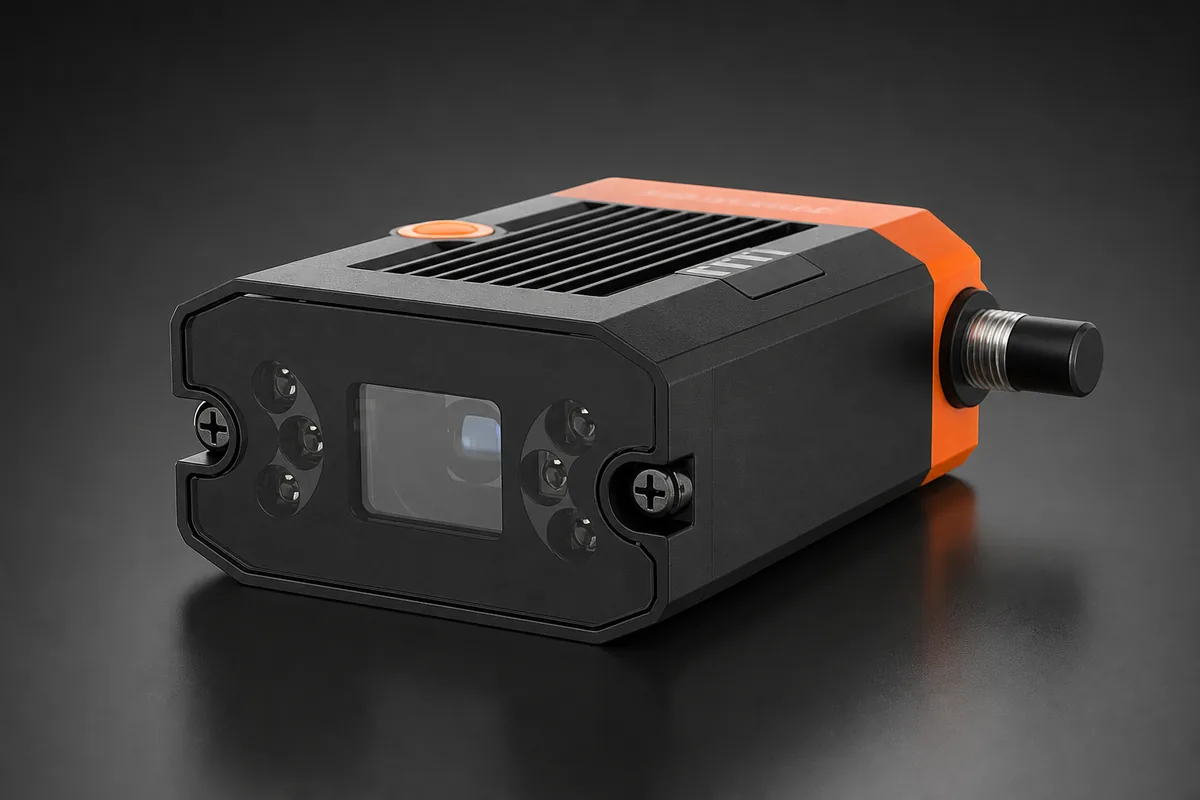

Hikrobot MV-SC2004EC-12S-WBN V3.0
704 × 540 px60 fpsFast Ethernet 100 Mbit/s12.4 mmIP65
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, global shutter |
| Sensor format | 1/2.9″ |
| Resolution | 704 × 540 px |
| Pixel size | 6.9 × 6.9 um |
| Maximum frame rate | 60 fps |
| Mono color | Color |
| Exposure time | 16 us to 1 s |
| Gain | 0 to 15 dB |
| Data interface | Fast Ethernet 100 Mbit/s |
| Digital I/O | Non-isolated input x1, non-isolated output x1, configurable non-isolated I/O x2, RS-232 × 1, external button input x1 |
| Lens mount | M12-mount |
| Focal length | 12.4 mm |
| Light source | White LED lamp |
| Power supply | 12 to 24 VDC |
| Power consumption | Avg 6 (typ), Max 22 W @24 VDC |
| Ingress protection | IP65 |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -30 to 70 °C |
| Humidity | 20 to 95 %RH (no condensation) |
| Dimensions | 46 × 57.6 × 25 mm |
| Weight | 220 g |
| Certification | CE, KC |
| Pixel format | Mono 8, RGB 8 |
| Communication protocols | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Data interface connector | 17-pin M12, provides power, Ethernet, serial port, and digital I/O |
| Available focal lengths | 8 mm, 12.4 mm, 14.8 mm |
| Field of view and installation distance (12.4 mm) | 200 mm / 78.35 × 60.10 mm; 2000 mm / 783.48 × 600.97 mm |
| Single pixel accuracy (12.4 mm) | 0.111 at 200 mm, 1.113 at 2000 mm |
| Field of view | 78.35 × 60.10 mm (12.4 mm lens, 200 mm installation distance) |
| Single pixel accuracy | 0.111 mm |
| Software | SCMVS |
| Solution capacity | Up to 8 solutions and 40 modules |
