Vision sensor · SC2000X series

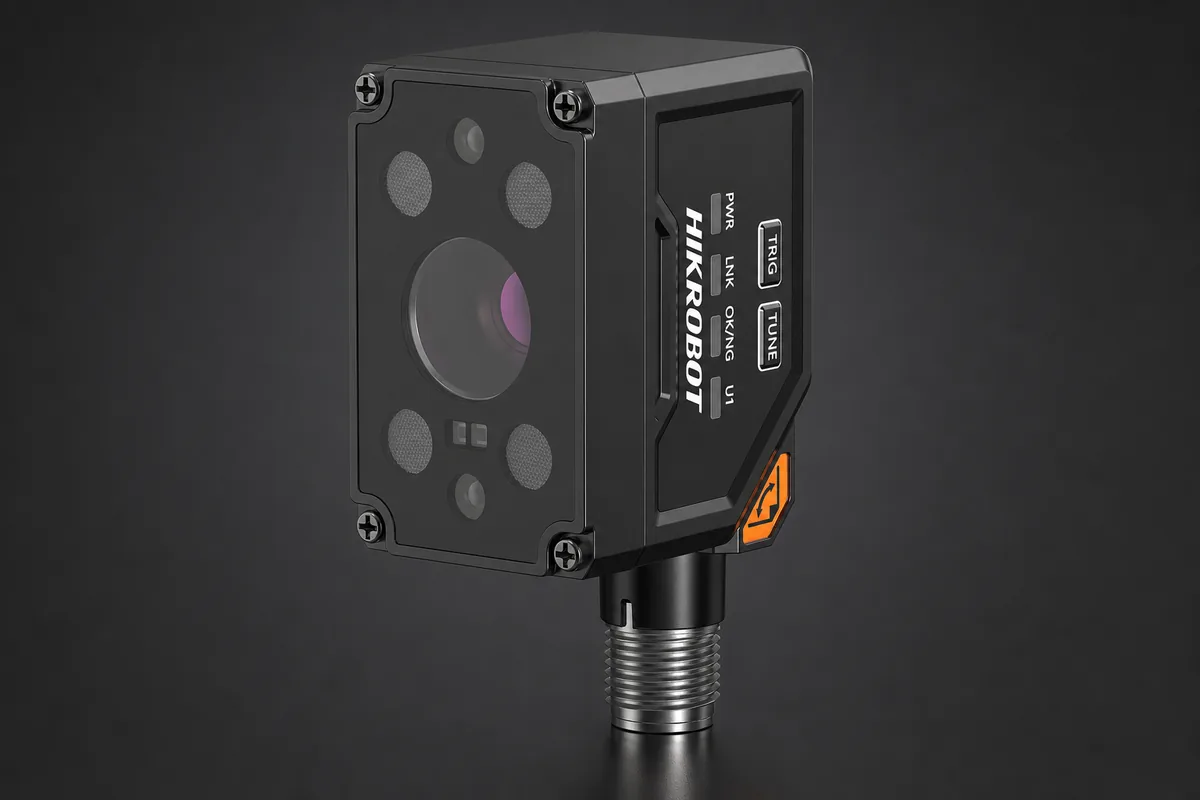

Hikrobot MV-SC2023XC-12M-WBN
1920 × 1280 px75 fpsFast Ethernet 100 Mbit/s12 mmIP65
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, global shutter |
| Resolution | 1920 × 1280 px |
| Pixel size | 2.2 × 2.2 µm |
| Maximum frame rate | 75 fps |
| Mono color | Color |
| Exposure time | 36 µs to 100 ms µs to ms |
| Data interface | Fast Ethernet 100 Mbit/s |
| Digital I/O | 17-pin M12 connector; isolated input Line0/1 × 2; isolated output Line2/3 × 2; RS-232 × 1 |
| Lens mount | M12-mount |
| Focal length | 12 mm |
| Power supply | 24 VDC |
| Power consumption max | 12 W @24 VDC |
| Ingress protection | IP65 |
| Operating temperature | 0 to 50 °C |
| Humidity | 20 to 95 % RH (no condensation) |
| Weight | 118 g |
| Dimensions (straight body) | 72.7 × 31.5 × 41 mm |
| Detection range table available | Provided for 5/12/16 mm focal lengths (working distance, FOV, single-pixel accuracy) |
