Vision sensor · SC3000X series

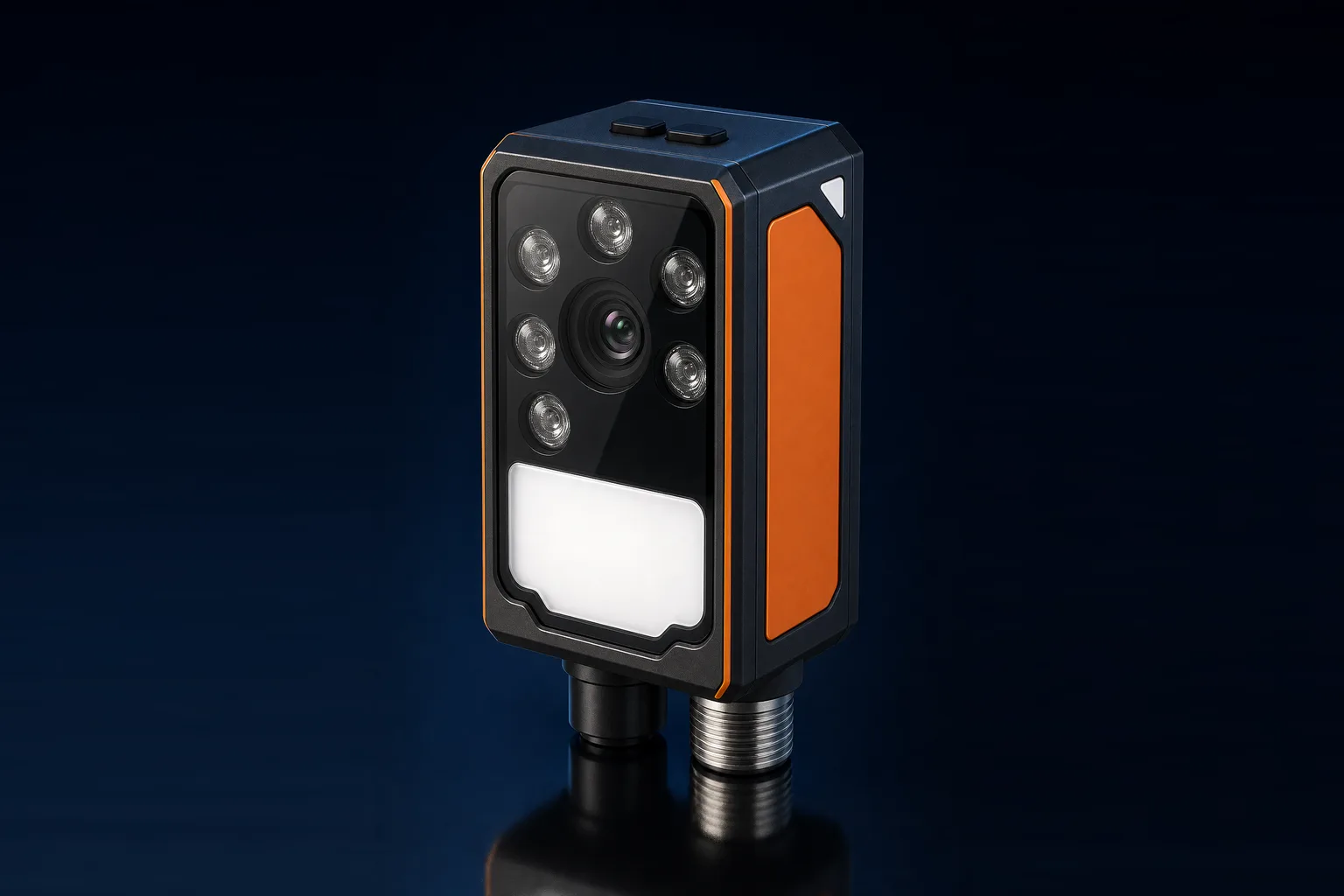

Hikrobot MV-SC3013XC-08M-WBN
1216 × 1024 px60 fpsFast Ethernet 100 Mbit/s8 mmIP67
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, global shutter |
| Resolution | 1216 × 1024 px |
| Pixel size | 6.9 × 6.9 µm |
| Maximum frame rate | 60 fps |
| Exposure time | 6-1000000 µs |
| Gain | 0 to 15 dB |
| Data interface | Fast Ethernet 100 Mbit/s |
| Lens mount | M12-mount |
| Focal length | 8 mm |
| Power supply | 24 VDC |
| Ingress protection | IP67 |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -30 to 70 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Weight | 190 g |
| Dimensions (right-angle body) | 58.5 × 43 × 65.4 mm |
| Dimensions (straight body) | 80.1 × 43 × 44.3 mm |
| Max. resolution and single-pixel accuracy sample | 8mm lens: 1000 mm H×V 1028×866, single-pixel 0.85 mm |
| Mechanical autofocus | yes |
| Pixel format | RGB 8, Mono 8 |
| Power consumption (avg) | 7 W@24VDC |
| Power consumption (max) | 22 W@24VDC |
