Smart camera · SC6000 series

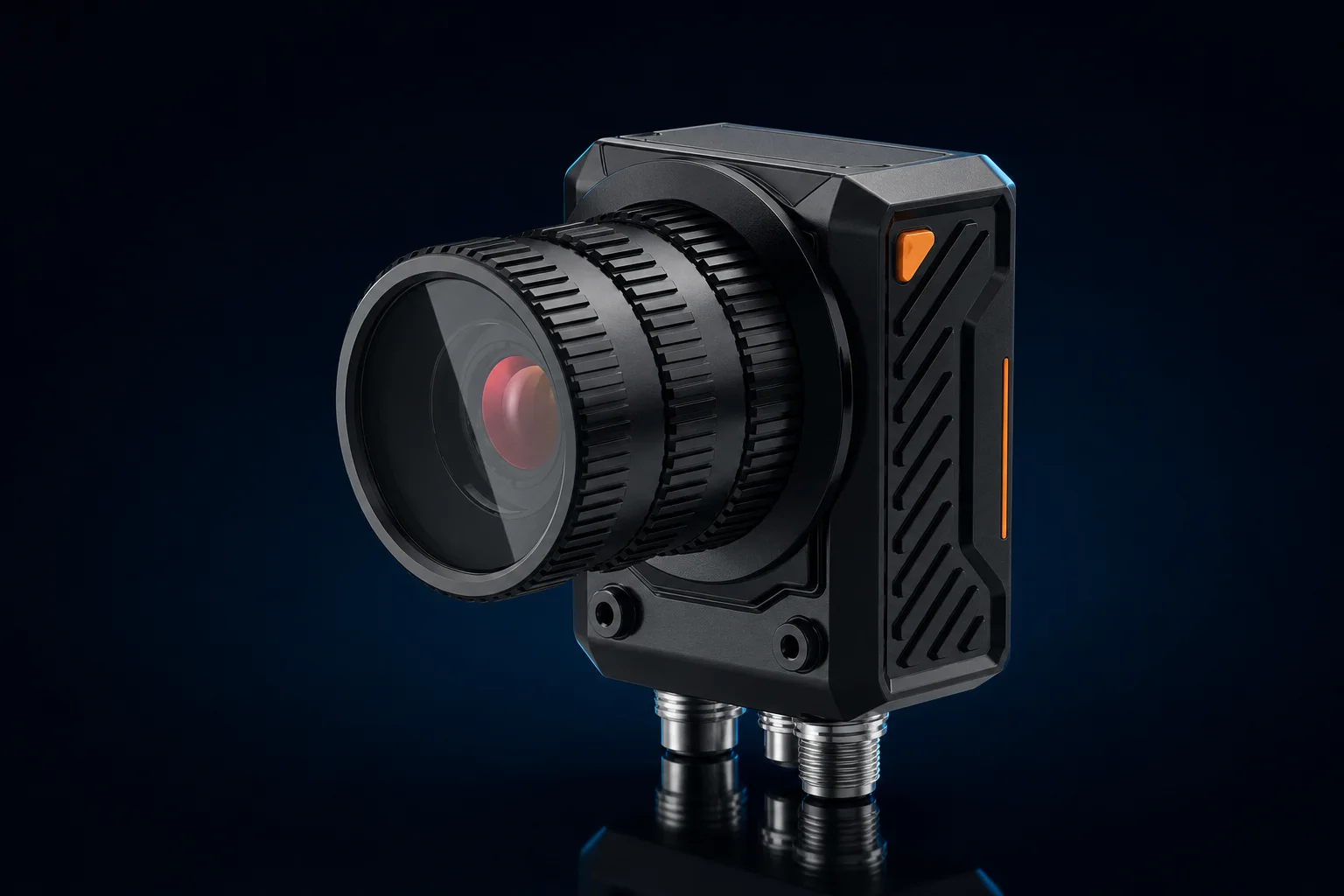

Hikrobot MV-SC6016M-06M-XBN
1408 × 1024 px120 fpsGigabit Ethernet (1000 Mbit/s)6 / 12 / 16 mmIP67
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, global shutter |
| Sensor format | 1/2.9″ |
| Resolution | 1408 × 1024 px |
| Maximum frame rate | 120 fps |
| Mono color | Mono |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Lens mount | M12-mount, mechanical focus |
| Focal length | 6 / 12 / 16 mm |
| Light source | Red, green, blue, white; switching by software |
| Power supply | 24 VDC |
| Ingress protection | IP67 |
| Operating temperature | 0 to 50 °C |
| Humidity | 20% to 95% RH |
| Dimensions | 77 × 98 × 115.7 mm |
| Weight | 750 g |
| Pixel format | Mono 8 |
| Communication protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
