Vision controller · VC3000 series

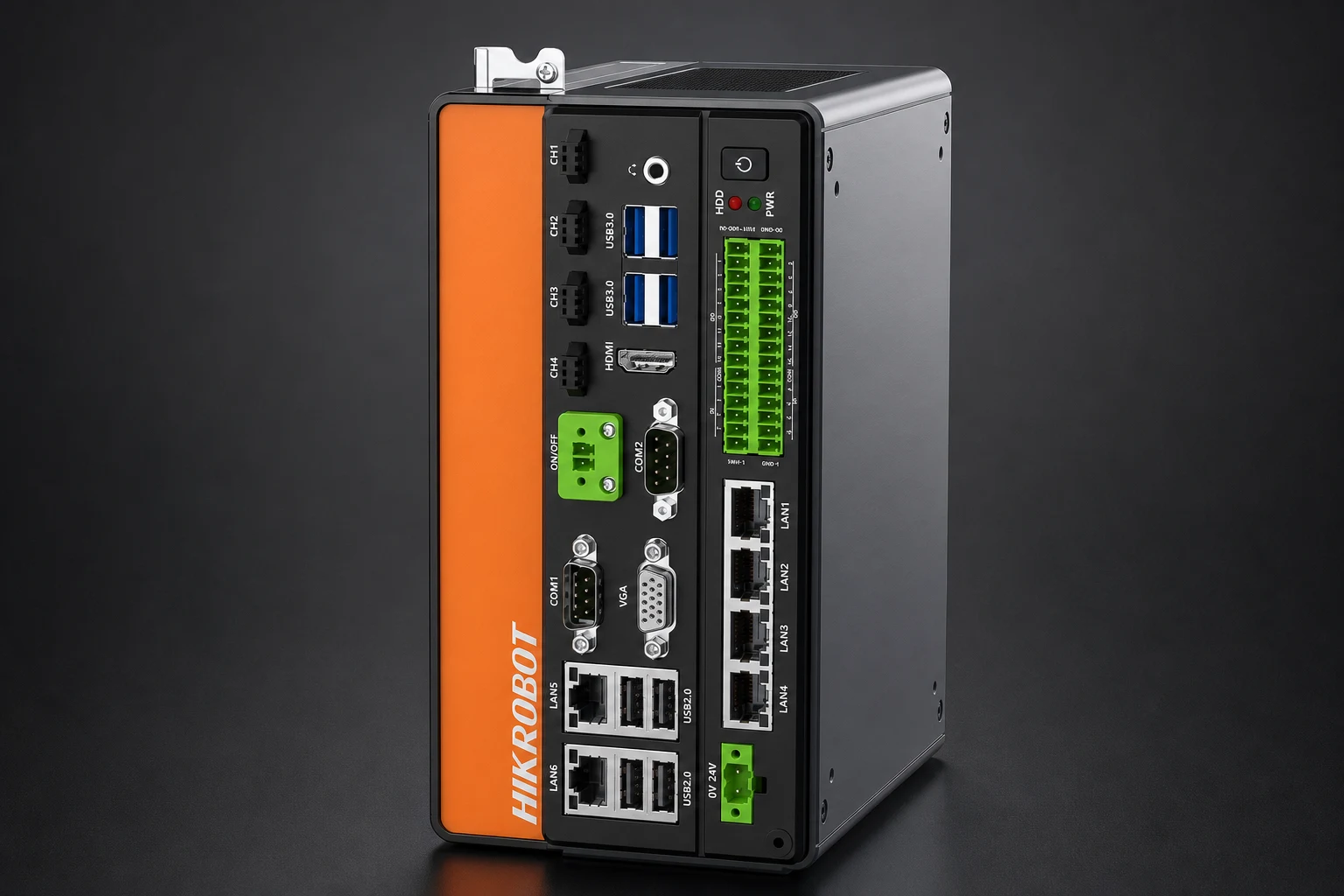

Hikrobot MV-VC3302H-128G60
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Network interface | GigE x6; one or more ports support PoE on MV-VC3303H |
| Serial port | RS-232 ×2 (switchable to RS-485/RS-422) |
| Digital I/O | Opto-isolated input x8, opto-isolated output x16 |
| Operating system | Unactivated 64-bit Windows 10 |
| Memory | 8 GB or 16 GB |
| Storage | 128 GB SSD; 128 GB SSD + 2 TB HDD options |
| Power supply | 24 VDC |
| Power consumption | Typ. 95 W / Typ. 144 W / Typ. 95 W |
| Operating temperature | 0 to 50 °C |
| Humidity | 20 to 95 %RH (no condensation) |
| Dimensions | 161.4 × 208.5 × 105.5 mm |
| Weight | 2.1 kg |
| Certification | CE, KC |
| CPU | Intel Core i3-8100 |
| Gpio | 24-channel GPIO |
| Gpio output type | NPN/PNP switching for output |
| Interface | GigE, USB 2.0 × 4, USB 3.0 × 4, built-in USB 2.0 × 1, HDMI x1, VGA x1, serial RS-232 × 2 (switching to RS-485/RS-422) |
| Video output | HDMI x1, VGA x1; independent outputs supported |
| Max output resolution | 1920 × 1080 @ 60 Hz |
| Light interface | 24 VDC constant voltage x4 (single channel max 72 W; total max 80 W) |
| Extended interface | PCIe 3.0 × 16 |
