Vision controller · VC5000 series

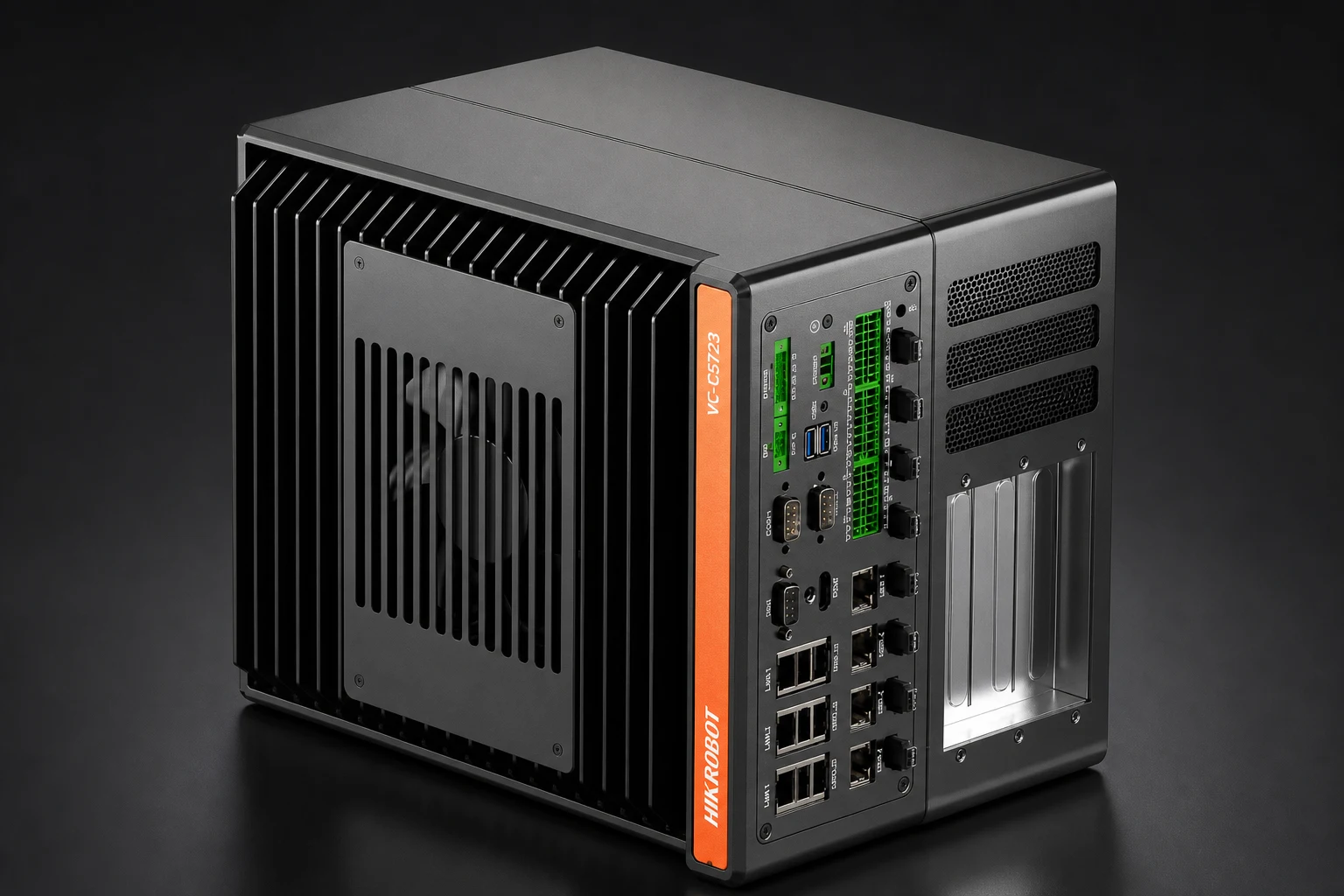

Hikrobot MV-VC5524-256G70-NN
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Network interface | GigE ×7 (including PoE ×4) |
| Serial port | RS-232 ×2 (default), supports switching to RS-485 and RS-422 |
| Digital I/O | Opto-isolated input ×8; opto-isolated output ×12 (supports NPN/PNP switching); digital-isolated low-side output ×8; non-isolated bi-directional differential I/O ×4 |
| Operating system | Unactivated Windows 10 |
| Memory | 16 GB |
| Storage | 256 GB SSD |
| Power supply | 24 VDC (4-pin system) and 24 VDC (2-pin graphics card) |
| Power consumption | Typ. 384 W (system 4-pin) |
| Operating temperature | 0 to 45 °C |
| Humidity | 20 to 95 % RH |
| Dimensions | 302.3 × 248 × 210 mm |
| Weight | Approx. 7.5 kg |
| Certification | CE, KC |
| CPU | Intel® Core™ i5-12400 |
| GPU | Intel® UHD Graphics 730 |
| Chipset | Q670 |
| Video output | HDMI ×1, VGA ×1, independent dual output |
| Max display resolution | 1920 × 1080 @ 60 Hz |
| Usb | USB 2.0 ×4, USB 3.0 ×4, built-in USB 2.0 ×1 |
| Pcie | PCIe ×16 ×1, PCIe ×8 ×1, PCIe ×4 ×2 (×8 use halves ×16 bandwidth) |
