Lenses · APS-C, large image circle

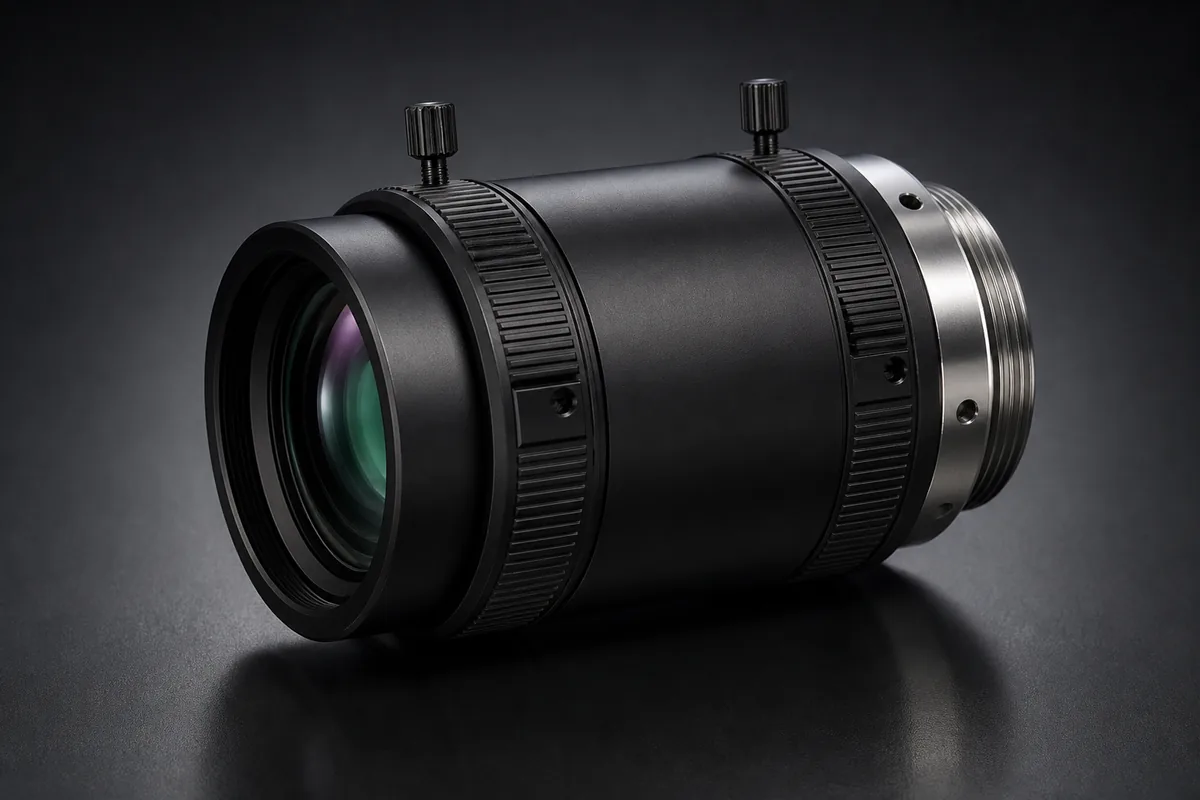

APS-C lenses with M42 mount
This range is built for the APS-C image circle — noticeably larger than 4/3″, which is why it uses an M42 thread rather than C-mount. The vendor datasheets name the main application directly: line scan cameras with large pixels, where a big image circle and resolution headroom are required. Focal lengths from 18 to 55 mm, manual focus.
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Operating temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Iris control | Manual; Fixed |
| Focus control | Manual |
| Flange focal length | 12 mm |
Part numbers and versions
| Part number | PN | Focal length | Working distance range | Aperture | Format | Image circle | Mount | |
|---|---|---|---|---|---|---|---|---|
| MVL-AF1428M-M42B | 102206448 | — | — | — | — | — | — | |
| MVL-AF1828M-M42B | 102205291 | 18 mm | 150 mm to 1500 mm | F2.8 to F22 | Φ30 mm | Φ30 mm | M42 × 1 | |
| MVL-AF2045M-M42 | 102203107 | 20 mm | 150 mm to 999 mm | F4.5 to C | Φ30 mm | Φ30 mm | M42 × 1 | |
| MVL-AF2524M-M42 | 310101826 | 25 mm | 150 mm to infinity | F2.4 to F16 | Φ29 mm | Φ29 mm | M42 × 1 | |
| MVL-AF2840M-M42 | 310100756 | 28 mm | 103 mm to 595 mm | F4.0 to F11 | Ø30 mm | Ø30 mm | M42 × 1 | |
| MVL-AF3528M-M42 | 102203108 | 35 mm | 163 mm to infinity | F2.8 to F16 | Φ42 mm | Φ42 mm | M42 × 1 | |
| MVL-AF3528M-M42A | 310101902 | 35 mm | 200 mm to infinity (tolerance: ±5 mm) | F2.8 to F16 | Φ29 mm | Φ29 mm | M42 × 1 | |
| MVL-AF4028M-M42 | 102203109 | 40 mm | 200 mm to 1051 mm | F2.8 to F22 | Φ37 mm | Φ37 mm | M42 × 1 | |
| MVL-AF5028M-M42A | 310102068 | 50 mm | 200 mm to infinity (tolerance: ±5 mm) | F2.8 to F16 | Φ29 mm | Φ29 mm | M42 × 1 | |
| MVL-AF5040M-M42 | 102203111 | 50 mm | 150 mm to infinity | F4 to F22 | Φ37 mm | Φ37 mm | M42 × 1 | |
| MVL-AF5528-M42 | 102203110 | 55 mm | 450 to 1400 mm | F2.8 | Ø 28 mm | Ø 28 mm | M42 × 1 |
How to choose
The letters AF in the part number do not mean autofocus: the whole range is fixed focal length with manual focus. Most versions have a manual iris, but some are fixed (for example MVL-AF5528-M42) — check the specific part number. Mind the flange distance too: M42 will not fit a C-mount camera without an adapter, and the adapter adds its own thickness.
