Lenses Hikrobot
Machine vision lenses for sensors from 1/2″ to 1.2″: fixed focal length, C-mount, matched to your field of view and working distance.
| Model | Focal length | Aperture | Image circle | Mount |
|---|---|---|---|---|
| MVL-KF1628M-12MPFA lens | 16 mm | F2.8 to F16 | Ø 17.6 mm | C-mount |
| MVL-KF5024M-25MPFA lens | 50 mm | F2.4 to F16 | Ø19.3 mm (1.2″) | C-mount |

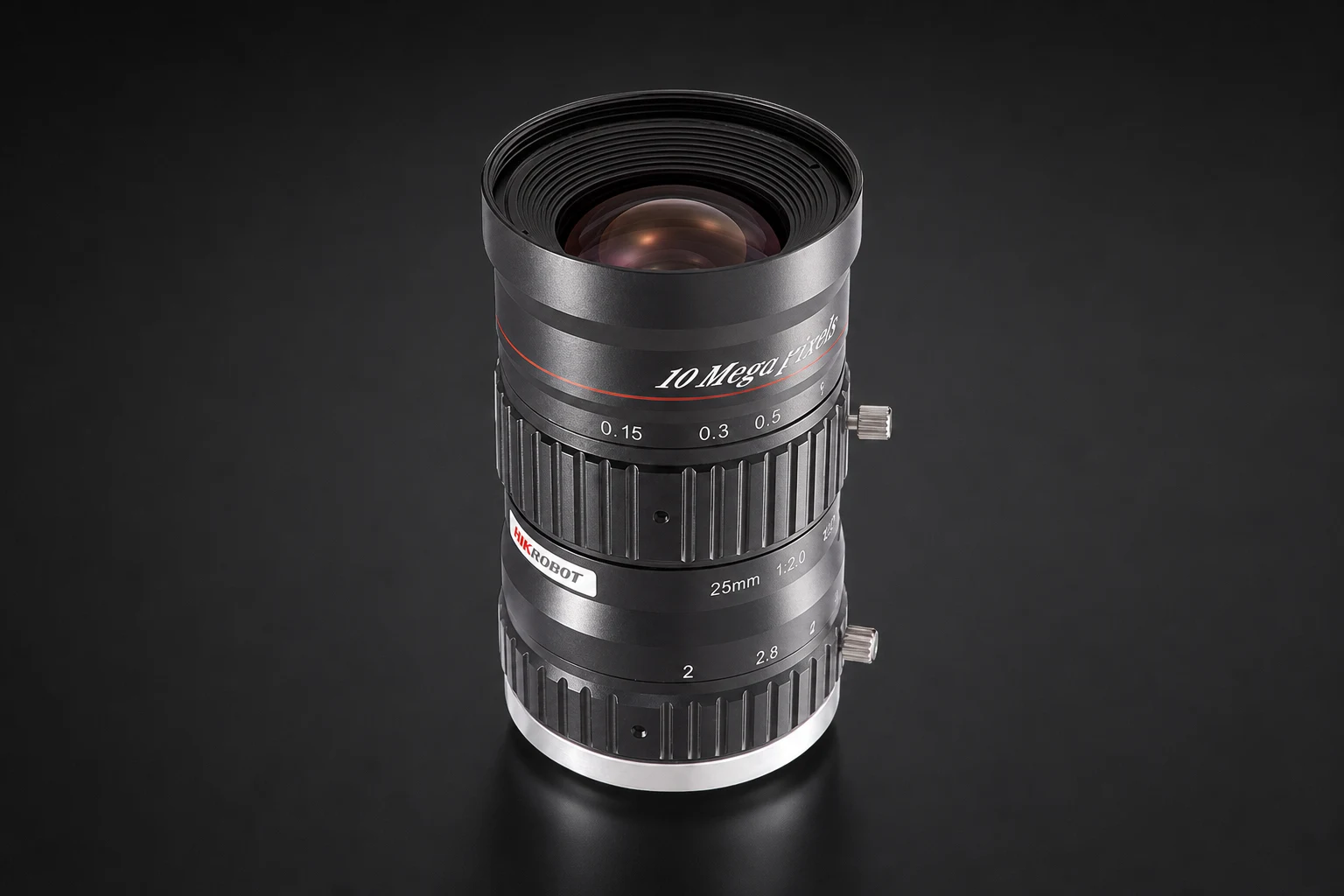

| SA2520M-10MPFA lens | 25 mm | F2.0 to F22 | Φ23 mm (4/3’’) | C-mount |

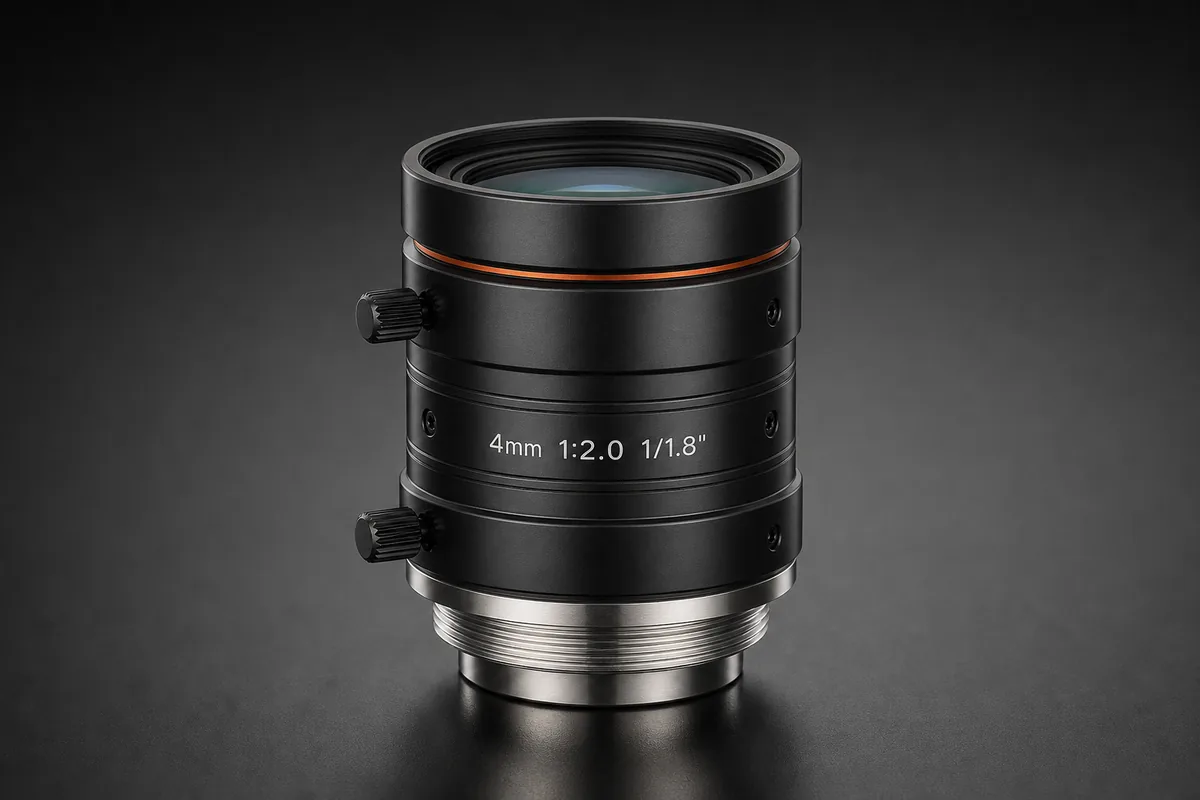

| HF0420MFA lens | 4 mm | F2.0 to C | 9 mm (1/1.8″) | C-Mount |

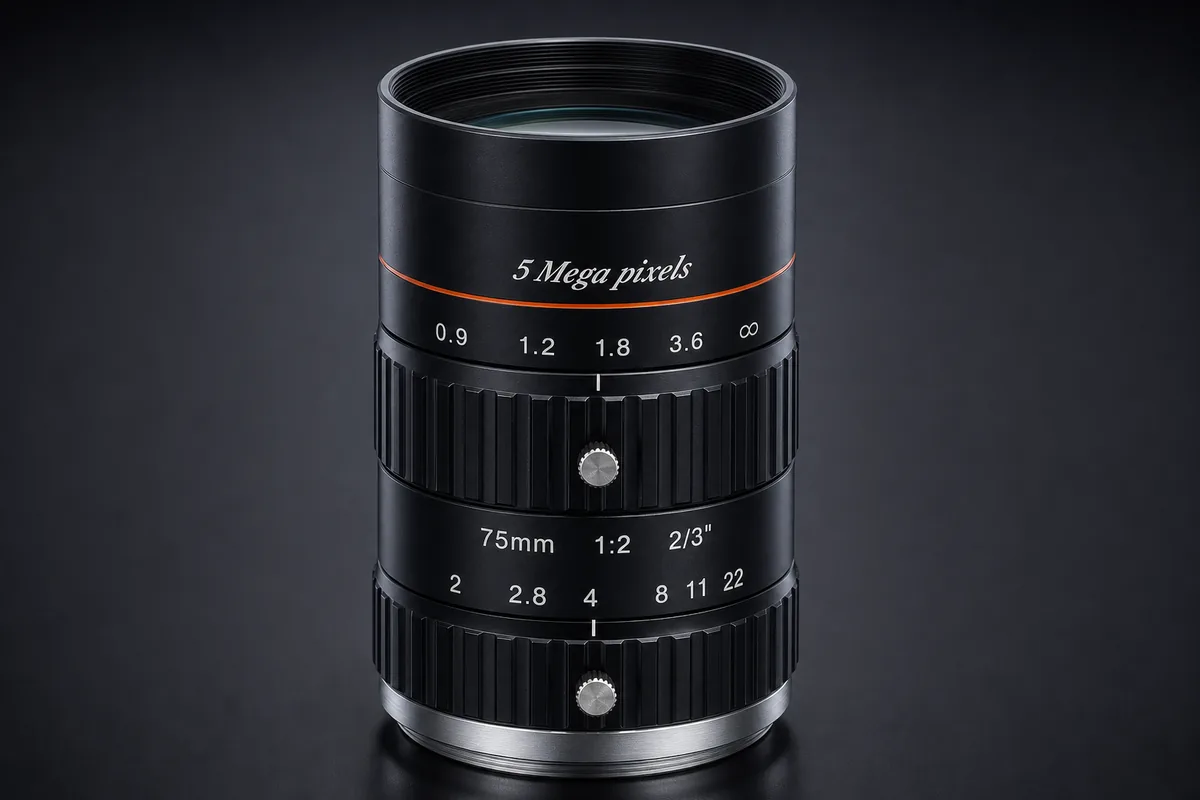

| MA7520M-5MPFA lens | 75 mm | F2.0 to F22 | Φ11 mm | C-mount |
| MVL-HF0828M-6MPEFA lens | 8 mm | F2.8 to F16 | Ø 9 mm (1/1.8’’) | C-mount |

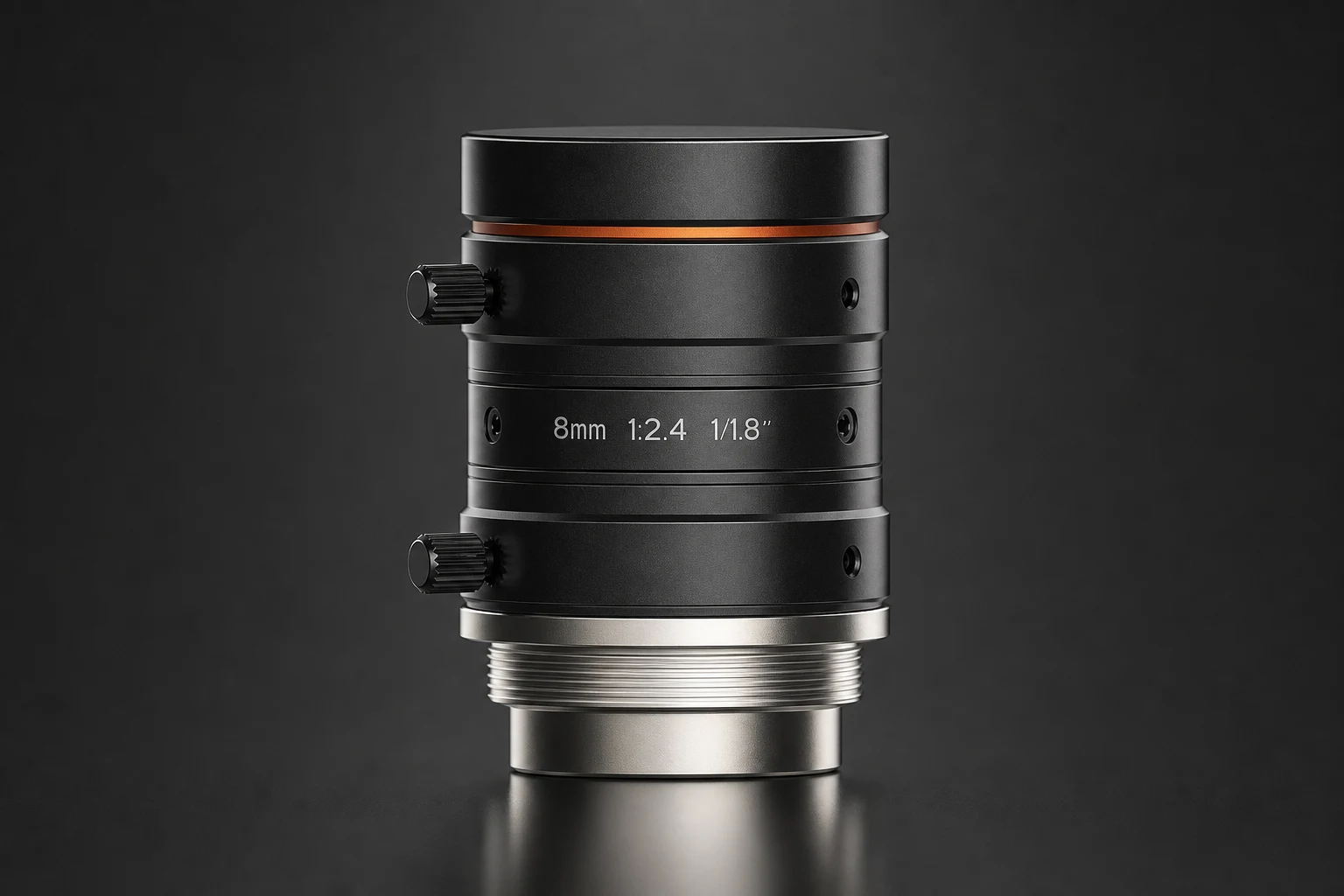

| MVL-HF0824M-10MPFA lens | 8 mm | F2.4 to F16 | Ø9 mm (1/1.8″) | C-mount |

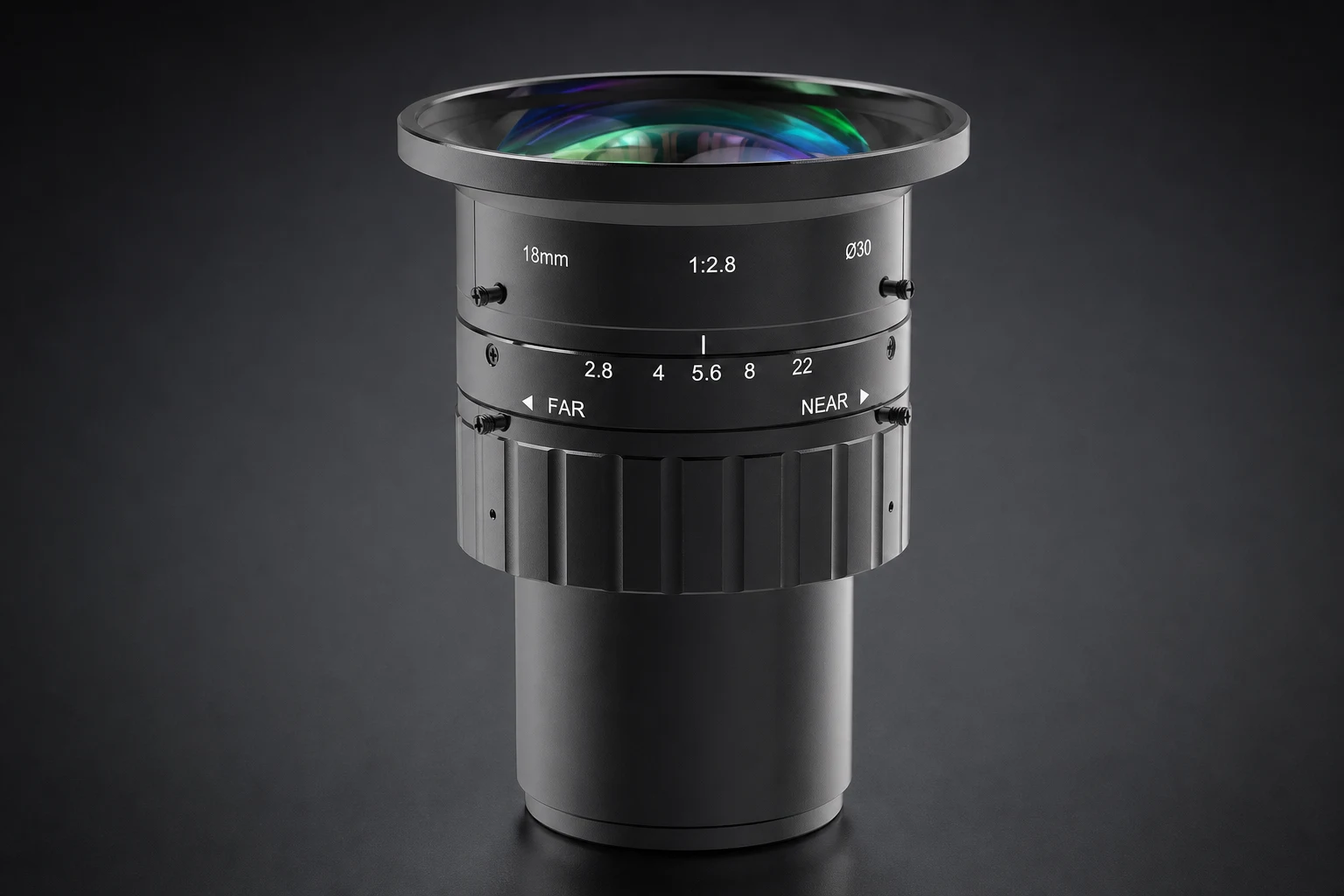

| MVL-AF1828M-M42BFA lens | 18 mm | F2.8 to F22 | Φ30 mm | M42 × P1 |
| MVL-KF2528M-12MPFA lens | 25 mm | F2.8 to F16 | Ø 17.6 mm | C-mount |
| MVL-KF0814M-12MPEFA lens | 8 mm | F1.4 to F16 | Ø 17.6 mm (1.1″) | C-mount |

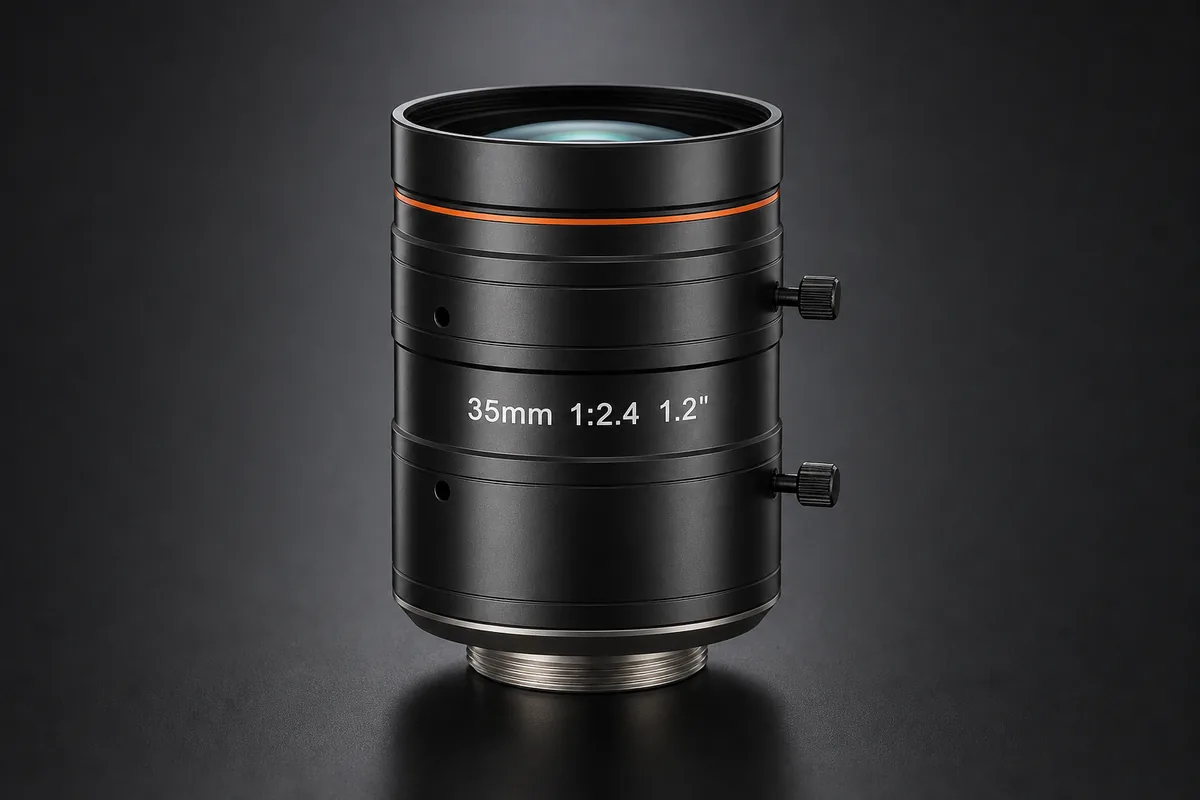

| MVL-KF3524M-25MPFA lens | 35 mm | F2.4 to F16 | Ø19.3 mm (1.2″) | C-mount |
| MVL-MF1228M-10MPEFA lens | 12 mm | F2.8 to F16 | Φ11.2 mm (2/3″) | C-mount |
| MVL-MF0824M-5MPEFA lens | 8 mm | F2.4 to F16 | Ø 11 mm (2/3″) | C-mount |
| MVL-MF1228M-8MPLens | 12 mm | F2.8 to F16 | Ø11 mm (2/3″) | C-mount |
| MVL-HF0628M-6MPEFA lens | 6 mm | F2.8 to F16 | Ø 9 mm (1/1.8’’) | C-mount |
| MVL-HF1228M-6MPEFA lens | 12 mm | F2.8 to F16 | Ø 9 mm (1/1.8’’) | C-mount |
| MVL-HF1628M-6MPEFA lens | 16 mm | F2.8 to F16 | Ø 9 mm (1/1.8’’) | C-mount |
| MVL-HF2528M-6MPEFA lens | 25 mm | F2.8 to F16 | Ø9 mm (1/1.8″) | C-mount |
| MVL-KF0818M-12MPFA lens | 8 mm | F1.8 to F11 | Φ16 mm (1″) | C-mount |
| MVL-KF1228M-12MPFA lens | 12 mm | F2.8 to F16 | Ø 17.6 mm | C-mount |
| MVL-KF3528M-12MPFA lens | 35 mm | F2.8 to F16 | Ø 17.6 mm | C-mount |
| MVL-KF5028M-12MPFA lens | 50 mm | — | Ø 17.6 mm | C-mount |
| MVL-LF2540M-M58-65MPFA lens | 25 mm | F4.0 to F22 | Ø46 mm | M58 × P0.75 |
| MVL-LF3540M-M58-65MPFA lens | 35 mm | F4.0 to F22 | Ø42 mm | M58 × P0.75 |
| MVL-LF5036M-M58-65MPFA lens | 50 mm | F3.6 to F22 | Ø46 mm | M58 × P0.75 |
| MVL-LF8040M-021V-M72FA lens | 80 mm | F4 to F22 | Ø60 mm | M72 × P0.75 |
| MVL-LF6040M-013-M72FA lens | 60 mm | F4.0 to F22 | Ø58 mm | M72 × P0.75 |
| MVL-LF12040M-033V-M90FA lens | 120 mm | F4.0 to F16 | Φ82 mm | M90 × P1 |
| MVL-LF11638M-0625V-M90FA lens | 116 mm | F3.8 to F16 | Φ82 mm | M90 × P1 |
| MVL-HF3028M-6MPEFA lens | 30 mm | F2.8 to F16 | Ø 9 mm (1/1.8″) | C-mount |
| MVL-KF1628M-12MPEFA lens | 16 mm | F2.8 to F16 | Ø 17.6 mm (1.1″) | C-mount |
| MVL-MF2528M-10MPEFA lens | 25 mm | F2.8 to F16 | Φ11.2 mm (2/3″) | C-mount |
