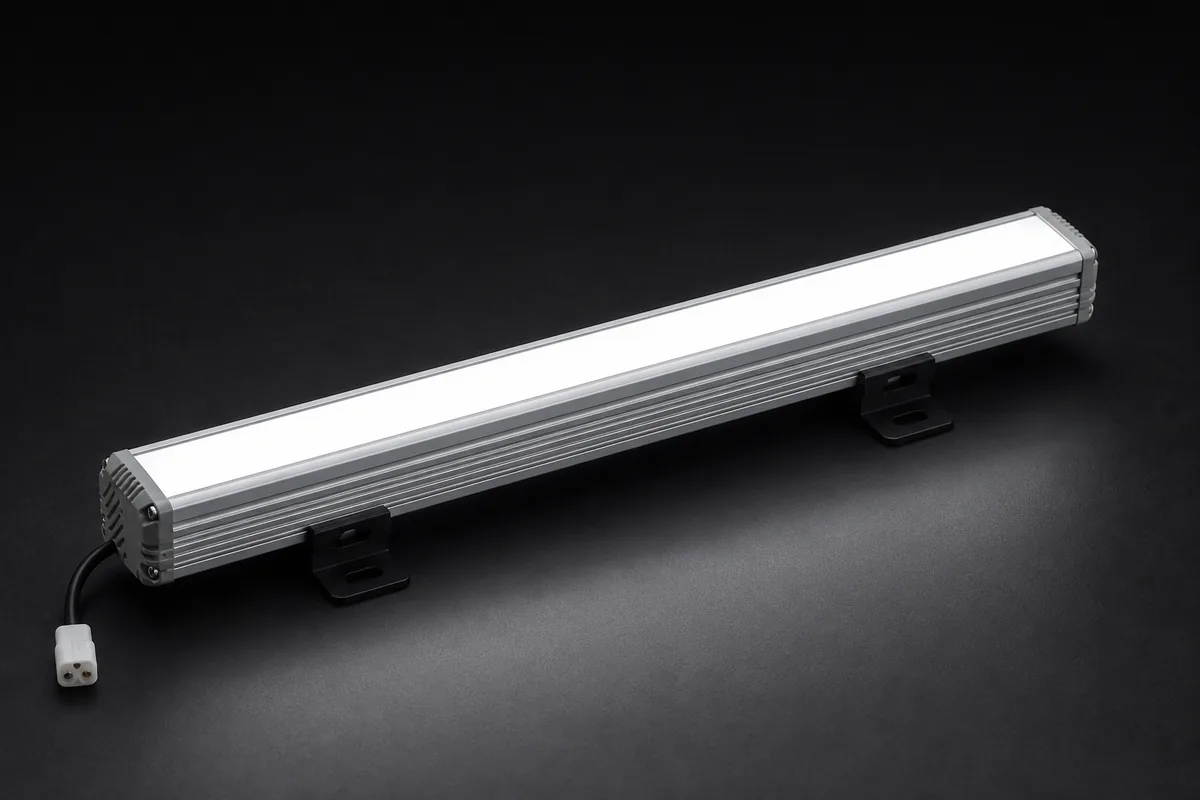

Bar lights for machine vision

Bar lights

Bar lights are mounted at an angle to the surface — that is what brings out relief, scratches and part edges instead of flooding the frame with flat light. Length is matched to the field of view: Hikrobot offers 50 to 1800 mm. White, red, blue, 850 and 940 nm infrared, 365 nm UV.

Price on requestAn engineer will confirm pricing and lead time in the first reply.

Find the right model

Specifications

Product type	Standard Bar Light; Standard Bar Light with Enhanced Brightness
Wavelength	365 nm
Operating temperature	0 °C to 40 °C; 0 to 40 °C
Light source type	high-quality LEDs; high-quality and large LEDs
Input voltage	24 VDC
Best working distance	30 to 500 mm
Cooling mode	Natural cooling
Diffuse plate material	PMMA
Cable length	1 m
Connector type	SMR-03V-B
Diffuse plate included	no

Part numbers and versions

White

Part number	PN	Housing	Emitting area	Power	Cable
MV-LLDS-H-50-30-W	310100998	50 × 30 mm	51 mm × 21.6 mm	3.4 W	1 m
MV-LLDS-H-50-40-W	310100999	50 × 40 mm	51 mm × 31.6 mm	5.3 W	1 m
MV-LLDS-57-18-W(C)	365000895	57 × 18 mm	45 × 12 mm	1.2 W	0.5 m
MV-LLDS-57-28-W(C)	365006236	57 × 28 mm	45 × 22 mm	2.4 W	0.5 m
MV-LLDH-57-38-W(C)	365003504	57 × 38 mm	45 × 32 mm	1.7 W	0.5 m
MV-LLDS-57-38-W(C)	365002358	57 × 38 mm	45 × 32 mm	3.6 W	0.5 m
MV-LLDS-90-18-W(C)	365002233	90 × 18 mm	78 × 12 mm	2 W	0.5 m
MV-LLDS-H-100-30-W	310101016	100 × 30 mm	96 mm × 21.6 mm	6.9 W	1 m
MV-LLDS-H-100-40-W	310101026	100 × 40 mm	96 mm × 31.6 mm	10.6 W	1 m
MV-LLDH-102-18-W(C)	365003315	102 × 18 mm	90 × 12 mm	1 W	0.5 m
MV-LLDS-102-18-W(C)	365001296	102 × 18 mm	90 × 12 mm	2.4 W	0.5 m
MV-LLDS-102-28-W(C)	365002057	102 × 28 mm	90 × 22 mm	3.2 W	0.5 m
MV-LLDS-102-38-W(C)	365001843	102 × 38 mm	90 × 32 mm	7.2 W	0.5 m
MV-LLAS-112-W(C)	365004576	112 mm	44 × 15.4 mm	8 W	0.5 m
MV-LLAS-140-W(C)	365003778	140 mm	90 × 15 mm	12.8 W	0.5 m
MV-LLDS-147-18-W(C)	310100727	147 × 18 mm	135 × 12 mm	3.6 W	0.5 m
MV-LLDS-147-28-W(C)	365001982	147 × 28 mm	135 × 22 mm	7.2 W	0.5 m
MV-LLDH-147-38-W(C)	365002607	147 × 38 mm	135 × 32 mm	5.1 W	0.5 m
MV-LLDS-147-38-W(C)	365001818	147 × 38 mm	135 × 32 mm	10.8 W	0.5 m
MV-LLDS-H-150-30-W	310101017	150 × 30 mm	141 mm × 21.6 mm	10 W	1 m
MV-LLDS-H-150-40-W	310101027	150 × 40 mm	141 mm × 31.6 mm	15.7 W	1 m
MV-LLAS-154-W(C)	365003661	154 mm	74 × 26 mm	25.2 W	0.5 m
MV-LLDS-192-28-W(C)	365001777	192 × 28 mm	180 × 22 mm	9.6 W	0.5 m
MV-LLDH-192-38-W(C)	365003503	192 × 38 mm	180 × 32 mm	6.8 W	0.5 m
MV-LLDS-192-38-W(C)	365001738	192 × 38 mm	180 × 32 mm	14.4 W	0.5 m
MV-LLDS-H-200-30-W	310101018	200 × 30 mm	186 mm × 21.6 mm	13.5 W	1 m
MV-LLDS-H-200-40-W	310101028	200 × 40 mm	186 mm × 31.6 mm	20.9 W	1 m
MV-LLDS-237-18-W(C)	365000897	237 × 18 mm	225 × 12 mm	6 W	0.5 m
MV-LLDS-237-28-W(C)	365001185	237 × 28 mm	225 × 22 mm	12 W	0.5 m
MV-LLDH-237-38-W(C)	365003292	237 × 38 mm	225 × 32 mm	8.5 W	0.5 m
MV-LLDS-237-38-W(C)	365001358	237 × 38 mm	225 × 32 mm	18 W	0.5 m
MV-LLDS-H-250-30-W	310101019	250 × 30 mm	231 mm × 21.6 mm	16.9 W	1 m
MV-LLDS-H-250-40-W	310101029	250 × 40 mm	231 mm × 31.6 mm	26.2 W	1 m
MV-LLDS-282-18-W(C)	310100860	282 × 18 mm	270 × 18 mm	7.2 W	0.5 m
MV-LLDS-282-28-W(C)	365000927	282 × 28 mm	270 × 22 mm	14.4 W	0.5 m
MV-LLDH-282-38-W(C)	365003293	282 × 38 mm	270 × 32 mm	10.2 W	0.5 m
MV-LLDS-282-38-W(C)	365002404	282 × 38 mm	270 × 32 mm	21.6 W	0.5 m
MV-LLDM-300-26-W(C)	365005820	300 × 26 mm	288 × 18 mm	34 W	0.5 m
MV-LLDS-H-300-30-W	310100932	300 × 30 mm	276 mm × 21.6 mm	20.1 W	1 m
MV-LLDS-H-300-40-W	310100933	300 × 40 mm	276 mm × 31.6 mm	31.3 W	1 m
MV-LLAS-322-232-W(C)	365005515	322 × 232 mm	Long side 225 × 22 mm short side 135 × 22 mm	39 W	0.5 m
MV-LLDS-327-18-W(C)	310100728	327 × 18 mm	315 × 12 mm	8.4 W	0.5 m
MV-LLDH-327-28-W(C)	365004415	327 × 28 mm	315 × 22 mm	16.8 W	0.5 m
MV-LLDS-327-28-W(C)	365001199	327 × 28 mm	315 × 22 mm	16.8 W	0.5 m
MV-LLDS-327-38-W(C)	365001115	327 × 38 mm	315 × 32 mm	25.2 W	0.5 m
MV-LLDS-H-350-30-W	310101020	350 × 30 mm	321 mm × 21.6 mm	23.5 W	1 m
MV-LLDS-H-350-40-W	310101030	350 × 40 mm	321 mm × 31.6 mm	36.6 W	1 m
MV-LLDS-372-28-W(C)	365001327	372 × 28 mm	360 × 22 mm	20 W	0.5 m
MV-LLDS-372-38-W(C)	365001279	372 × 38 mm	360 × 32 mm	28.8 W	0.5 m
MV-LLDS-H-400-30-W	310101021	400 × 30 mm	366 mm × 21.6 mm	26.9 W	1 m
MV-LLDS-H-400-40-W	310101031	400 × 40 mm	366 mm × 31.6 mm	41.9 W	1 m
MV-LLDS-417-28-W(C)	365002211	417 × 28 mm	405 × 22 mm	21.6 W	0.5 m
MV-LLDH-417-38-W(C)	365004004	417 × 38 mm	405 × 32 mm	15.3 W	0.5 m
MV-LLDS-417-38-W(C)	365001241	417 × 38 mm	405 × 32 mm	32.4 W	0.5 m
MV-LLDS-H-450-30-W	310101022	450 × 30 mm	411 mm × 21.6 mm	30.1 W	1 m
MV-LLDS-H-450-40-W	310101032	450 × 40 mm	411 mm × 31.6 mm	47 W	1 m
MV-LLDS-462-18-W(C)	365006636	462 × 18 mm	450 × 12 mm	12 W	0.5 m
MV-LLDS-462-38-W(C)	365003517	462 × 38 mm	450 × 32 mm	36 W	0.5 m
MV-LLDS-H-500-30-W	310101000	500 × 30 mm	456 mm × 21.6 mm	33.5 W	1 m
MV-LLDS-H-500-40-W	310101001	500 × 40 mm	456 mm × 31.6 mm	52.2 W	1 m
MV-LLDS-507-28-W(C)	365004191	507 × 28 mm	495 × 22 mm	26.4 W	0.5 m
MV-LLDH-507-38-W(C)	365003397	507 × 38 mm	495 × 32 mm	18.7 W	0.5 m
MV-LLDS-507-38-W(C)	310100795	507 × 38 mm	495 × 32 mm	44 W	0.5 m
MV-LLDS-552-18-W(C)	365002657	552 × 18 mm	540 × 12 mm	14.4 W	0.5 m
MV-LLDS-552-38-W(C)	365007016	552 × 38 mm	540 × 32 mm	43.2 W	0.5 m
MV-LLDS-597-18-W(C)	365005941	597 × 18 mm	585 × 12 mm	16 W	0.5 m
MV-LLDS-597-28-W(C)	365003518	597 × 28 mm	585 × 22 mm	31.2 W	0.5 m
MV-LLDS-597-38-W(C)	365001116	597 × 38 mm	585 × 32 mm	47 W	0.5 m
MV-LLDS-H-600-30-W	310101023	600 × 30 mm	546 mm × 21.6 mm	40.1 W	1 m
MV-LLDS-H-600-40-W	310101033	600 × 40 mm	546 mm × 31.6 mm	62.6 W	1 m
MV-LLDS-642-38-W(C)	365002999	642 × 38 mm	630 × 32 mm	50.4 W	0.5 m
MV-LLDS-662-38-W(C)	365007123	662 × 38 mm	650 × 32 mm	3.6 W	0.5 m
MV-LLDS-H-700-30-W	310101024	700 × 30 mm	636 mm × 21.6 mm	47 W	1 m
MV-LLDS-700-38-W(C)	365002190	700 × 38 mm	688 × 32 mm	48 W	0.5 m
MV-LLDS-H-700-40-W	310101034	700 × 40 mm	636 mm × 31.6 mm	73.2 W	1 m
MV-LLDS-732-38-W(C)	365003519	732 × 38 mm	720 × 32 mm	57.6 W	0.5 m
MV-LLDS-H-800-30-W	310101007	800 × 30 mm	726 mm × 21.6 mm	53.6 W	1 m
MV-LLDS-H-800-40-W	310101008	800 × 40 mm	726 mm × 31.6 mm	70.9 W	1 m
MV-LLDS-822-38-W(C)	365006850	822 × 38 mm	810 × 32 mm	65 W	0.5 m
MV-LLDS-H-900-30-W	310101037	900 × 30 mm	816 mm × 21.6 mm	60.2 W	1 m
MV-LLDS-H-900-40-W	310101035	900 × 40 mm	816 mm × 31.6 mm	93.9 W	1 m
MV-LLDS-912-38-W(C)	365004391	912 × 38 mm	900 × 32 mm	72 W	0.5 m
MV-LLDS-H-1000-30-W	310101002	1000 × 30 mm	906 mm × 21.6 mm	67.1 W	1 m
MV-LLDS-H-1000-40-W	310101003	1000 × 40 mm	906 mm × 31.6 mm	104.5 W	1 m
MV-LLDS-1002-38-W(C)	365002191	1002 × 38 mm	990 × 32 mm	79.2 W	0.5 m
MV-LLDS-1092-38-W(C)	365003516	1092 × 38 mm	1080 × 32 mm	86.4 W	0.5 m
MV-LLDS-H-1200-30-W	310101025	1200 × 30 mm	1086 mm × 21.6 mm	80.3 W	1 m
MV-LLDS-H-1200-40-W	310101036	1200 × 40 mm	1086 mm × 31.6 mm	116.4 W	1 m
MV-LLDH-1227-38-W(C)	365006827	1227 × 38 mm	1215 × 32 mm	45.9 W	0.5 m
MV-LLDS-H-1300-40-W	310102076	1300 × 40 mm	1172.6 mm × 31.6 mm	116 W	1 m
MV-LLDS-H-1400-30-W	310101009	1400 × 30 mm	1266 mm × 21.6 mm	93.7 W	1 m
MV-LLDS-H-1400-40-W	310101010	1400 × 40 mm	1266 mm × 31.6 mm	116.5 W	1 m
MV-LLDS-1407-38-W(C)	365004229	1407 × 38 mm	1395 × 32 mm	111.6 W	0.5 m
MV-LLDH-1632-18-W(C)	365001920	1632 × 18 mm	1620 × 12 mm	18 W	0.5 m
MV-LLDS-1632-38-W(C)	365002666	1632 × 38 mm	1620 × 32 mm	129.6 W	0.5 m
MV-LLDS-H-1800-40-W	310102121	1800 × 40 mm	1622.6 mm × 31.6 mm	162.2 W	1 m

Red

Part number	PN	Housing	Emitting area	Power	Cable
MV-LLDS-H-50-30-R	310101894	50 × 30 mm	51 mm × 21.6 mm	1.9 W	1 m
MV-LLDS-H-50-40-R	310101969	50 × 40 mm	51 mm × 31.6 mm	2.9 W	1 m
MV-LLDS-H-100-30-R	310101996	100 × 30 mm	96 mm × 21.6 mm	4.1 W	1 m
MV-LLDS-H-100-40-R	310101993	100 × 40 mm	96 mm × 31.6 mm	6 W	1 m
MV-LLDH-102-38-R(C)	365005514	102 × 38 mm	90 × 32 mm	2.6 W	0.5 m
MV-LLDS-147-38-R(C)	365002886	147 × 38 mm	135 × 32 mm	7.2 W	0.5 m
MV-LLDS-H-150-30-R	310101933	150 × 30 mm	141 mm × 21.6 mm	6 W	1 m
MV-LLDS-H-150-40-R	310101951	150 × 40 mm	141 mm × 31.6 mm	8.9 W	1 m
MV-LLDS-192-18-W(C)	365005623	192 × 18 mm	180 × 12 mm	4.8 W	0.5 m
MV-LLDS-H-200-30-R	310101773	200 × 30 mm	186 mm × 21.6 mm	6 W	1 m
MV-LLDS-H-200-40-R	310101775	200 × 40 mm	186 mm × 31.6 mm	12 W	1 m
MV-LLDS-H-250-30-R	310101903	250 × 30 mm	231 mm × 21.6 mm	9.8 W	1 m
MV-LLDS-H-250-40-R	310101978	250 × 40 mm	231 mm × 31.6 mm	14.9 W	1 m
MV-LLDS-H-300-30-R	310101924	300 × 30 mm	276 mm × 21.6 mm	12 W	1 m
MV-LLDS-H-300-40-R	310101868	300 × 40 mm	276 mm × 31.6 mm	18 W	1 m
MV-LLDS-327-38-R(C)	365001328	327 × 38 mm	315 × 32 mm	17 W	0.5 m
MV-LLDS-H-350-30-R	310101927	350 × 30 mm	321 mm × 21.6 mm	13.9 W	1 m
MV-LLDS-H-350-40-R	310101963	350 × 40 mm	321 mm × 31.6 mm	20.9 W	1 m
MV-LLDS-H-400-30-R	310101915	400 × 30 mm	366 mm × 21.6 mm	15.8 W	1 m
MV-LLDS-H-400-40-R	310101987	400 × 40 mm	366 mm × 31.6 mm	23.8 W	1 m
MV-LLDS-417-28-R(C)	365002931	417 × 28 mm	405 × 22 mm	14.4 W	0.5 m
MV-LLDS-H-450-30-R	310101909	450 × 30 mm	411 mm × 21.6 mm	18 W	1 m
MV-LLDS-H-450-40-R	310101960	450 × 40 mm	411 mm × 31.6 mm	26.9 W	1 m
MV-LLDS-462-38-R(C)	365000951	462 × 38 mm	450 × 32 mm	24 W	0.5 m
MV-LLDS-H-500-30-R	310101936	500 × 30 mm	456 mm × 21.6 mm	19.9 W	1 m
MV-LLDS-H-500-40-R	310101966	500 × 40 mm	456 mm × 31.6 mm	29.8 W	1 m
MV-LLDS-H-600-30-R	310101948	600 × 30 mm	546 mm × 21.6 mm	23.8 W	1 m
MV-LLDS-H-600-40-R	310101984	600 × 40 mm	546 mm × 31.6 mm	35.8 W	1 m
MV-LLDS-H-700-30-R	310101912	700 × 30 mm	636 mm × 21.6 mm	27.8 W	1 m
MV-LLDS-H-700-40-R	310101954	700 × 40 mm	636 mm × 31.6 mm	41.8 W	1 m
MV-LLDS-H-800-30-R	310101921	800 × 30 mm	726 mm × 21.6 mm	31.9 W	1 m
MV-LLDS-H-800-40-R	310101942	800 × 40 mm	726 mm × 31.6 mm	47.8 W	1 m
MV-LLDS-H-900-30-R	310101918	900 × 30 mm	816 mm × 21.6 mm	35.8 W	1 m
MV-LLDS-H-900-40-R	310101981	900 × 40 mm	816 mm × 31.6 mm	53.8 W	1 m
MV-LLDS-H-1000-30-R	310101945	1000 × 30 mm	906 mm × 21.6 mm	39.8 W	1 m
MV-LLDS-H-1000-40-R	310101975	1000 × 40 mm	906 mm × 31.6 mm	59.5 W	1 m
MV-LLDS-H-1200-30-R	310101906	1200 × 30 mm	1086 mm × 21.6 mm	47.8 W	1 m
MV-LLDS-H-1200-40-R	310101990	1200 × 40 mm	1086 mm × 31.6 mm	71.5 W	1 m
MV-LLDS-H-1400-30-R	310101774	1400 × 30 mm	1266 mm × 21.6 mm	47.8 W	1 m
MV-LLDS-H-1400-40-R	310101776	1400 × 40 mm	1266 mm × 31.6 mm	83.5 W	1 m

Blue

Part number	PN	Housing	Emitting area	Power	Cable
MV-LLDS-H-50-30-B	310102020	50 × 30 mm	51 mm × 21.6 mm	2.6 W	1 m
MV-LLDS-H-50-40-B	310101893	50 × 40 mm	51 mm × 31.6 mm	3.6 W	1 m
MV-LLDS-H-100-30-B	310101997	100 × 30 mm	96 mm × 21.6 mm	5 W	1 m
MV-LLDS-H-100-40-B	310101994	100 × 40 mm	96 mm × 31.6 mm	7.7 W	1 m
MV-LLDS-102-18-B(C)	365001646	102 × 18 mm	90 × 12 mm	2.4 W	0.5 m
MV-LLDS-H-150-30-B	310101934	150 × 30 mm	141 mm × 21.6 mm	7.7 W	1 m
MV-LLDS-H-150-40-B	310101952	150 × 40 mm	141 mm × 31.6 mm	11.3 W	1 m
MV-LLDS-192-28-B(C)	310100526	192 × 28 mm	180 × 22 mm	9.6 W	0.5 m
MV-LLDS-H-200-30-B	310101769	200 × 30 mm	186 mm × 21.6 mm	10.3 W	1 m
MV-LLDS-H-200-40-B	310101771	200 × 40 mm	186 mm × 31.6 mm	16.8 W	1 m
MV-LLDS-237-38-B(C)	365001156	237 × 38 mm	225 × 32 mm	18 W	0.5 m
MV-LLDS-H-250-30-B	310101904	250 × 30 mm	231 mm × 21.6 mm	12.7 W	1 m
MV-LLDS-H-250-40-B	310101979	250 × 40 mm	231 mm × 31.6 mm	19 W	1 m
MV-LLDH-282-28-B(C)	365004723	282 × 28 mm	270 × 22 mm	7.8 W	0.5 m
MV-LLDS-H-300-30-B	310101925	300 × 30 mm	276 mm × 21.6 mm	15.4 W	1 m
MV-LLDS-H-300-40-B	310101973	300 × 40 mm	276 mm × 31.6 mm	23 W	1 m
MV-LLDS-327-38-B(C)	365002663	327 × 38 mm	315 × 32 mm	25.2 W	0.5 m
MV-LLDS-H-350-30-B	310101928	350 × 30 mm	321 mm × 21.6 mm	17.8 W	1 m
MV-LLDS-H-350-40-B	310101964	350 × 40 mm	321 mm × 31.6 mm	26.6 W	1 m
MV-LLDS-H-400-30-B	310101916	400 × 30 mm	366 mm × 21.6 mm	20.4 W	1 m
MV-LLDS-H-400-40-B	310101988	400 × 40 mm	366 mm × 31.6 mm	30.7 W	1 m
MV-LLDS-H-450-30-B	310101910	450 × 30 mm	411 mm × 21.6 mm	23 W	1 m
MV-LLDS-H-450-40-B	310101961	450 × 40 mm	411 mm × 31.6 mm	34.3 W	1 m
MV-LLDS-H-500-30-B	310101937	500 × 30 mm	456 mm × 21.6 mm	25.4 W	1 m
MV-LLDS-H-500-40-B	310101967	500 × 40 mm	456 mm × 31.6 mm	38.4 W	1 m
MV-LLDS-H-600-30-B	310101949	600 × 30 mm	546 mm × 21.6 mm	30.7 W	1 m
MV-LLDS-H-600-40-B	310101985	600 × 40 mm	546 mm × 31.6 mm	45.6 W	1 m
MV-LLDS-H-700-30-B	310101913	700 × 30 mm	636 mm × 21.6 mm	35.8 W	1 m
MV-LLDS-H-700-40-B	310101955	700 × 40 mm	636 mm × 31.6 mm	53.3 W	1 m
MV-LLDS-H-800-30-B	310101922	800 × 30 mm	726 mm × 21.6 mm	40.6 W	1 m
MV-LLDS-H-800-40-B	310101943	800 × 40 mm	726 mm × 31.6 mm	61 W	1 m
MV-LLDS-H-900-30-B	310101919	900 × 30 mm	816 mm × 21.6 mm	45.6 W	1 m
MV-LLDS-H-900-40-B	310101982	900 × 40 mm	816 mm × 31.6 mm	68.6 W	1 m
MV-LLDS-H-1000-30-B	310101946	1000 × 30 mm	906 mm × 21.6 mm	50.9 W	1 m
MV-LLDS-H-1000-40-B	310101976	1000 × 40 mm	906 mm × 31.6 mm	76.3 W	1 m
MV-LLDS-H-1200-30-B	310101907	1200 × 30 mm	1086 mm × 21.6 mm	61 W	1 m
MV-LLDS-H-1200-40-B	310101991	1200 × 40 mm	1086 mm × 31.6 mm	91.7 W	1 m
MV-LLDS-H-1400-30-B	310101770	1400 × 30 mm	1266 mm × 21.6 mm	71.3 W	1 m
MV-LLDS-H-1400-40-B	310101772	1400 × 40 mm	1266 mm × 31.6 mm	107 W	1 m

Green

Part number	PN	Housing	Emitting area	Power	Cable
MV-LLDS-57-28-G(C)	365003569	57 × 28 mm	45 × 22 mm	2.4 W	0.5 m

Infrared 850 nm

Part number	PN	Housing	Emitting area	Power	Cable
MV-LLDS-H-50-30-IR850	310101895	50 × 30 mm	51 mm × 21.6 mm	2.9 W	1 m
MV-LLDS-H-50-40-IR850	310101971	50 × 40 mm	51 mm × 31.6 mm	4.3 W	1 m
MV-LLDS-54-18-IR850(C)	365002731	54 × 18 mm	44 × 15.4 mm	2 W	0.5 m
MV-LLDS-H-100-30-IR850	310101998	100 × 30 mm	96 mm × 21.6 mm	5.5 W	1 m
MV-LLDS-H-100-40-IR850	310101995	100 × 40 mm	96 mm × 31.6 mm	8.4 W	1 m
MV-LLDS-H-150-30-IR850	310101935	150 × 30 mm	141 mm × 21.6 mm	8.4 W	1 m
MV-LLDS-H-150-40-IR850	310101953	150 × 40 mm	141 mm × 31.6 mm	12.7 W	1 m
MV-LLDS-H-200-30-IR850	310101777	200 × 30 mm	186 mm × 21.6 mm	11.3 W	1 m
MV-LLDS-H-200-40-IR850	310101779	200 × 40 mm	186 mm × 31.6 mm	17.3 W	1 m
MV-LLDS-H-250-30-IR850	310101905	250 × 30 mm	231 mm × 21.6 mm	14.2 W	1 m
MV-LLDS-H-250-40-IR850	310101980	250 × 40 mm	231 mm × 31.6 mm	21.1 W	1 m
MV-LLDS-H-300-30-IR850	310101926	300 × 30 mm	276 mm × 21.6 mm	16.8 W	1 m
MV-LLDS-H-300-40-IR850	310101974	300 × 40 mm	276 mm × 31.6 mm	25.4 W	1 m
MV-LLDS-H-350-30-IR850	310101929	350 × 30 mm	321 mm × 21.6 mm	19.7 W	1 m
MV-LLDS-H-350-40-IR850	310101965	350 × 40 mm	321 mm × 31.6 mm	29.5 W	1 m
MV-LLDS-H-400-30-IR850	310101917	400 × 30 mm	366 mm × 21.6 mm	22.6 W	1 m
MV-LLDS-H-400-40-IR850	310101989	400 × 40 mm	366 mm × 31.6 mm	33.8 W	1 m
MV-LLDS-H-450-30-IR850	310101911	450 × 30 mm	411 mm × 21.6 mm	25.4 W	1 m
MV-LLDS-H-450-40-IR850	310101962	450 × 40 mm	411 mm × 31.6 mm	37.9 W	1 m
MV-LLDS-H-500-30-IR850	310101938	500 × 30 mm	456 mm × 21.6 mm	28.1 W	1 m
MV-LLDS-H-500-40-IR850	310101968	500 × 40 mm	456 mm × 31.6 mm	42.2 W	1 m
MV-LLDS-H-600-30-IR850	310101950	600 × 30 mm	546 mm × 21.6 mm	33.8 W	1 m
MV-LLDS-H-600-40-IR850	310101986	600 × 40 mm	546 mm × 31.6 mm	50.6 W	1 m
MV-LLDS-H-700-30-IR850	310101914	700 × 30 mm	636 mm × 21.6 mm	39.4 W	1 m
MV-LLDS-H-700-40-IR850	310101956	700 × 40 mm	636 mm × 31.6 mm	59 W	1 m
MV-LLDS-H-800-30-IR850	310101923	800 × 30 mm	726 mm × 21.6 mm	45.1 W	1 m
MV-LLDS-H-800-40-IR850	310101944	800 × 40 mm	726 mm × 31.6 mm	67.7 W	1 m
MV-LLDS-H-900-30-IR850	310101920	900 × 30 mm	816 mm × 21.6 mm	50.6 W	1 m
MV-LLDS-H-900-40-IR850	310101983	900 × 40 mm	816 mm × 31.6 mm	76.1 W	1 m
MV-LLDS-H-1000-30-IR850	310101947	1000 × 30 mm	906 mm × 21.6 mm	56.4 W	1 m
MV-LLDS-H-1000-40-IR850	310101977	1000 × 40 mm	906 mm × 31.6 mm	84.5 W	1 m
MV-LLDS-H-1200-30-IR850	310101908	1200 × 30 mm	1086 mm × 21.6 mm	67.7 W	1 m
MV-LLDS-H-1200-40-IR850	310101992	1200 × 40 mm	1086 mm × 31.6 mm	101.3 W	1 m
MV-LLDS-H-1400-30-IR850	310101778	1400 × 30 mm	1266 mm × 21.6 mm	79 W	1 m
MV-LLDS-H-1400-40-IR850	310101780	1400 × 40 mm	1266 mm × 31.6 mm	118.3 W	1 m

Infrared 940 nm

Part number	PN	Housing	Emitting area	Power	Cable
MV-LLDS-H-50-30-IR940	310102019	50 × 30 mm	51 mm × 21.6 mm	2.9 W	1 m
MV-LLDS-H-50-40-IR940	310102004	50 × 40 mm	51 mm × 31.6 mm	4.3 W	1 m
MV-LLDS-H-100-30-IR940	310102000	100 × 30 mm	96 mm × 21.6 mm	5.8 W	1 m
MV-LLDS-H-100-40-IR940	310102005	100 × 40 mm	96 mm × 31.6 mm	8.6 W	1 m
MV-LLDS-140-20-IR940(C)	365002343	140 × 20 mm	130 × 16 mm	4 W	0.5 m
MV-LLDS-H-150-30-IR940	310102001	150 × 30 mm	141 mm × 21.6 mm	8.6 W	1 m
MV-LLDS-H-150-40-IR940	310102006	150 × 40 mm	141 mm × 31.6 mm	13 W	1 m
MV-LLDS-H-200-30-IR940	310101999	200 × 30 mm	186 mm × 21.6 mm	11.5 W	1 m
MV-LLDS-H-200-40-IR940	310101866	200 × 40 mm	186 mm × 31.6 mm	15.4 W	1 m
MV-LLDS-H-250-30-IR940	310101972	250 × 30 mm	231 mm × 21.6 mm	14.4 W	1 m
MV-LLDS-H-250-40-IR940	310102007	250 × 40 mm	231 mm × 31.6 mm	21.6 W	1 m
MV-LLDS-270-42-IR940(C)	365003713	270 × 42 mm	260 × 36 mm	17 W	0.5 m
MV-LLDS-H-300-30-IR940	310101970	300 × 30 mm	276 mm × 21.6 mm	17.3 W	1 m
MV-LLDS-H-300-40-IR940	310102008	300 × 40 mm	276 mm × 31.6 mm	25.7 W	1 m
MV-LLDS-H-350-30-IR940	310101959	350 × 30 mm	321 mm × 21.6 mm	20.2 W	1 m
MV-LLDS-H-350-40-IR940	310102009	350 × 40 mm	321 mm × 31.6 mm	30 W	1 m
MV-LLDS-380-40-IR940(C)	365003714	380 × 40 mm	368 × 31 mm	20 W	0.5 m
MV-LLDS-H-400-30-IR940	310101957	400 × 30 mm	366 mm × 21.6 mm	22.8 W	1 m
MV-LLDS-H-400-40-IR940	310102010	400 × 40 mm	366 mm × 31.6 mm	34.3 W	1 m
MV-LLDS-H-450-30-IR940	310101958	450 × 30 mm	411 mm × 21.6 mm	25.7 W	1 m
MV-LLDS-H-450-40-IR940	310102011	450 × 40 mm	411 mm × 31.6 mm	38.6 W	1 m
MV-LLDS-H-500-30-IR940	310101940	500 × 30 mm	456 mm × 21.6 mm	28.6 W	1 m
MV-LLDS-H-500-40-IR940	310102012	500 × 40 mm	456 mm × 31.6 mm	43 W	1 m
MV-LLDS-H-600-30-IR940	310101941	600 × 30 mm	546 mm × 21.6 mm	34.3 W	1 m
MV-LLDS-H-600-40-IR940	310102013	600 × 40 mm	546 mm × 31.6 mm	51.6 W	1 m
MV-LLDS-H-700-30-IR940	310101939	700 × 30 mm	636 mm × 21.6 mm	40.1 W	1 m
MV-LLDS-H-700-40-IR940	310102014	700 × 40 mm	636 mm × 31.6 mm	60.2 W	1 m
MV-LLDS-H-800-30-IR940	310101931	800 × 30 mm	726 mm × 21.6 mm	45.8 W	1 m
MV-LLDS-H-800-40-IR940	310102015	800 × 40 mm	726 mm × 31.6 mm	68.6 W	1 m
MV-LLDS-H-900-30-IR940	310101932	900 × 30 mm	816 mm × 21.6 mm	51.6 W	1 m
MV-LLDS-H-900-40-IR940	310102016	900 × 40 mm	816 mm × 31.6 mm	77.3 W	1 m
MV-LLDS-H-1000-30-IR940	310101930	1000 × 30 mm	906 mm × 21.6 mm	57.4 W	1 m
MV-LLDS-H-1000-40-IR940	310102017	1000 × 40 mm	906 mm × 31.6 mm	85.9 W	1 m
MV-LLDS-H-1200-30-IR940	310102002	1200 × 30 mm	1086 mm × 21.6 mm	68.6 W	1 m
MV-LLDS-H-1200-40-IR940	310102018	1200 × 40 mm	1086 mm × 31.6 mm	103.2 W	1 m
MV-LLDS-H-1400-30-IR940	310102003	1400 × 30 mm	1266 mm × 21.6 mm	80.2 W	1 m
MV-LLDS-H-1400-40-IR940	310101867	1400 × 40 mm	1266 mm × 31.6 mm	120 W	1 m

Ultraviolet 365 nm

Part number	PN	Housing	Emitting area	Power	Cable
MV-LLDH-57-38-UV365(C)	365006490	57 × 38 mm	45 × 32 mm	1.4 W	0.5 m
MV-LLDS-150-30-UV365(C)	365002344	150 × 30 mm	140 × 25 mm	6.3 W	0.5 m
MV-LLDM-H-200-40-UV365	310102435	200 × 40 mm	176.2 mm × 3.7 mm	21.5 W	1 m
MV-LLDS-205-40-UV365(C）	365005083	205 × 40 mm	175 × 33 mm	13 W	0.5 m
MV-LLDS-282-38-UV365(C)	365003019	282 × 38 mm	270 × 32 mm	18.6 W	0.5 m
MV-LLDM-H-600-30-UV365	310102436	600 × 30 mm	536.2 mm × 3.7 mm	64 W	1 m

Ultraviolet 395 nm

Part number	PN	Housing	Emitting area	Power	Cable
MV-LLDS-205-40-UV395(C）	365005084	205 × 40 mm	175 × 33 mm	13 W	0.5 m
