Lighting Hikrobot
Hikrobot machine vision lighting: bar, ring, flat, coaxial, dome and spot fixtures, plus strobe controllers and cables. Lighting does half the job — whether the algorithm sees the defect at all depends on it.
| Family | Sizes | Colours | Power |
|---|---|---|---|
| Bar lights for machine vision255 PNs | 50–1800 mm | White, Red, Blue, Green | 1–162.2 W |
| Ring lights for machine vision cameras212 PNs | 24–300 mm | Red, White, Blue, Ultraviolet 365 nm | 0.4–61 W |
| Flat panel lights for machine vision102 PNs | 27–900 mm | White, Red, Blue, Green | 1.7–380 W |

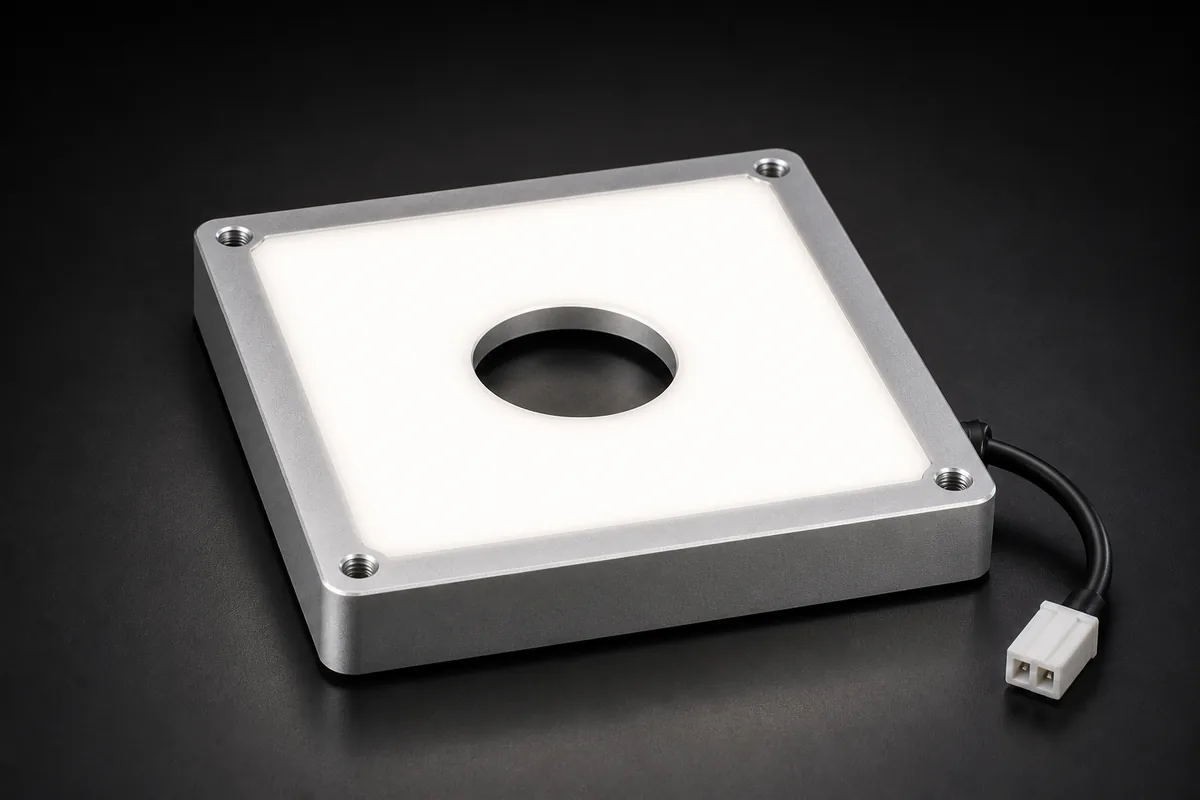

| Flat lights with a lens hole81 PNs | 50–620 mm | White, Red, Blue, Infrared 940 nm | 1.7–298.8 W |
| Coaxial lights for specular surfaces41 PNs | 16–300 mm | White, Red, Blue, Green | 0.9–384 W |
| High-brightness line lights for line scan cameras26 PNs | 100–2100 mm | White | 20–702 W |

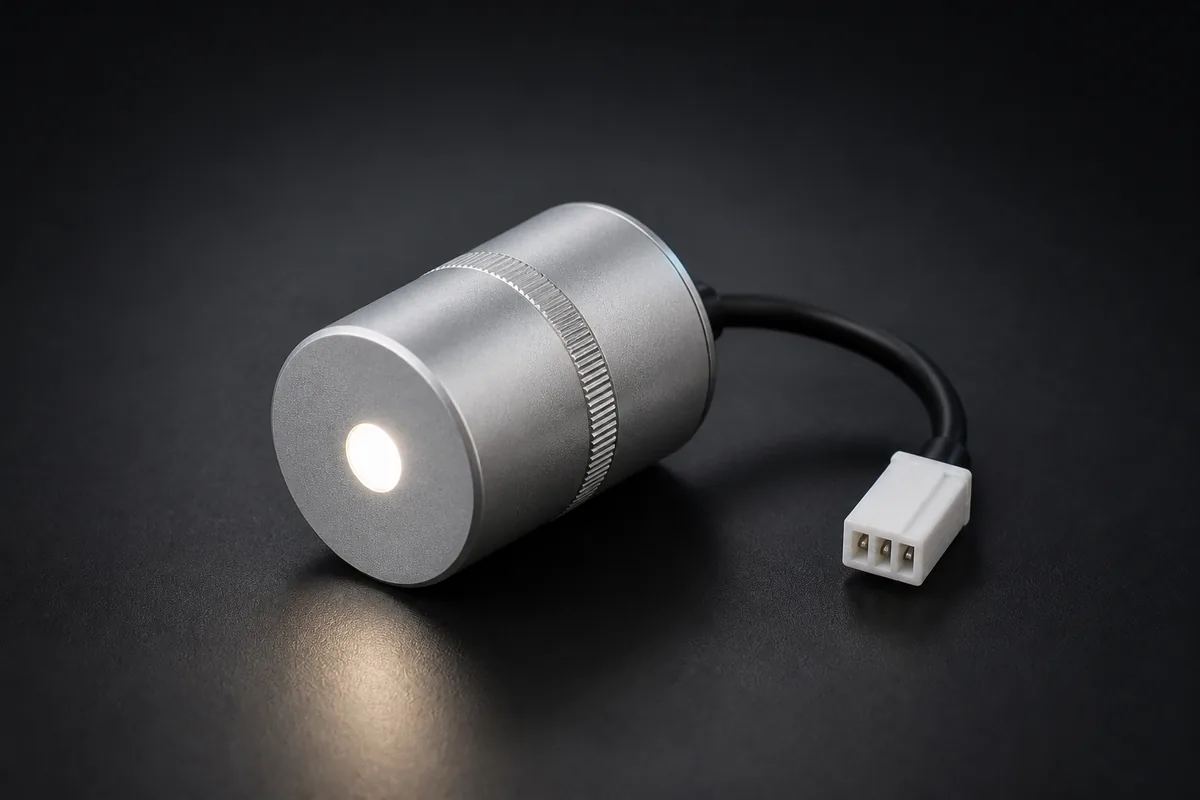

| Spot lights and fibre illuminators15 PNs | Ø8–20 mm | White, Blue, Red, Ultraviolet 365 nm | 1.1–9 W |
| Dome and shadowless lights21 PNs | 50–300 mm | White, Red, Blue | 2.3–45 W |
| Lighting controllers: strobe and brightness control42 PNs | 100~240VAC, 12 VDC, 24 VDC | — | — |
| Lighting cables: fixture to controller42 PNs | 1–30 m | — | — |
