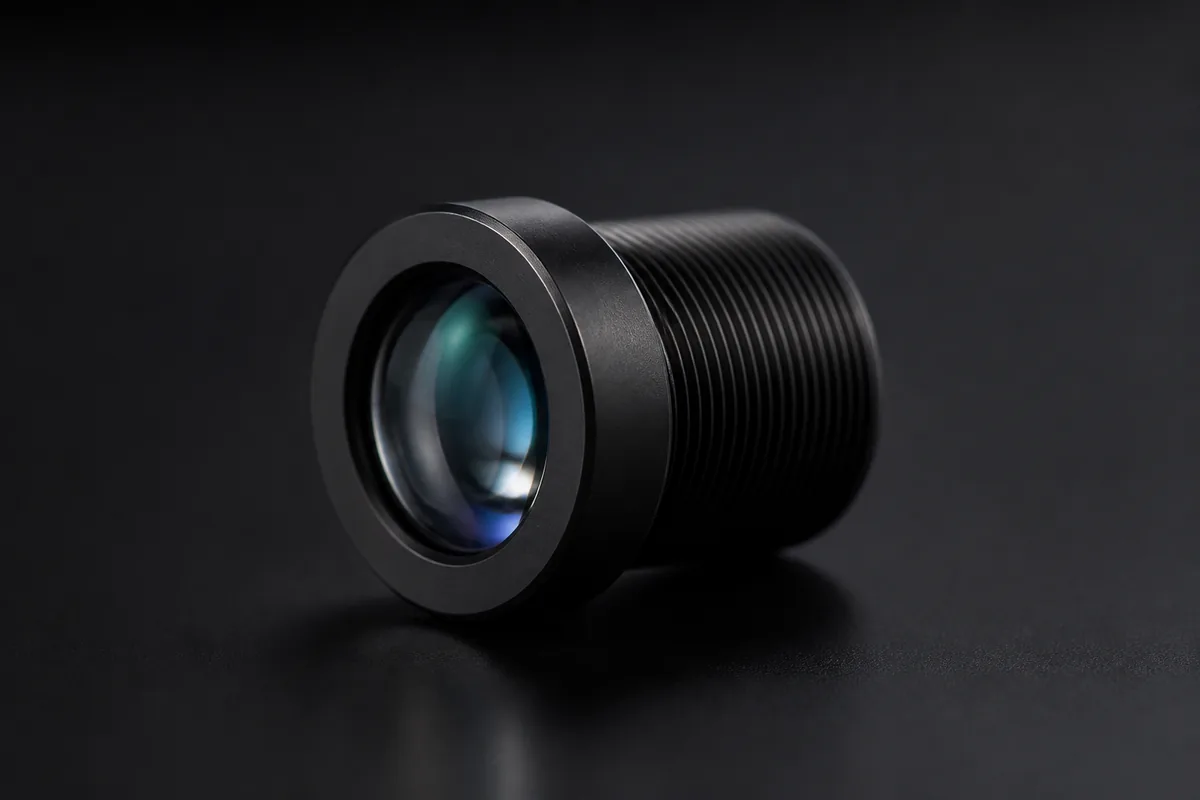

Compact S-mount (M12) lenses
The M12 thread (S-mount) covers optics for embedded cameras and code readers where space is measured in millimetres. Focal lengths from 3.37 to 25 mm: short ones give a wide angle for close-up work, longer ones keep a normal field of view inside a tight housing.
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Operating temperature | -10 ~ 50°C; –10 °C to 50 °C (14 °F to 122 °F) |
Part numbers and versions
| Part number | PN | Focal length | Working distance range | Aperture | Format | Mount | |
|---|---|---|---|---|---|---|---|
| MVL-HF0328-05S | 102202185 | 3.37 mm | 100 ~ 850 mm | F2.8 | Φ8 mm(1/2'') | S-mount (M12) | |
| MVL-HF0628-05S | 102202750 | 6 mm | 100 ~ 850 mm | F2.8 | Φ9 mm(1/1.8'') | S-mount (M12) | |
| MVL-HF0828-05S | 102202206 | 8 mm | 120 ~ 900 mm | F2.8 | Φ9 mm(1/1.8'') | S-mount (M12) | |
| MVL-HF0856-05S | 310100759 | 8 mm | 100 mm to infinity | F5.6 | Φ9.4 mm (1/1.7") | S-mount (M12) | |
| MVL-HF1228-05S | 102202751 | 12 mm | 100 ~ 850 mm | F2.8 | Φ9 mm(1/1.8'') | S-mount (M12) | |
| MVL-HF1256-05S | 310100584 | 12 mm | 100 mm to 850 mm | F5.6 | Φ8.95 mm (1/1.8'') | S-mount (M12) | |
| MVL-HF1628-05S | 102202752 | 16 mm | 100 ~ 850 mm | F2.8 | Φ9 mm(1/1.8'') | S-mount (M12) | |
| MVL-HF1656-05S | 310100796 | 16 mm | 100 mm to 850 mm | F5.6 | Φ8.95 mm (1/1.8'') | S-mount (M12) | |
| MVL-HF2528-05S | 102202501 | 25 mm | 200 ~ 950 mm | F2.8 | Φ9 mm(1/1.8'') | S-mount (M12) | |
| MVL-HF2556-05S | 310100760 | 25 mm | 200 mm to 950 mm | F5.6 | Φ8.86 mm (1/1.8") | S-mount (M12) |
How to choose
S-mount focusing is done by turning the lens in its thread, so after setup it is locked with a nut — otherwise vibration will drift the focus. Wide-angle versions show more distortion than longer ones, but the actual figure is given per part number — check it if you measure from the image.
