Lighting · Coaxial

Coaxial lights for specular surfaces

Coaxial

Light enters through a beam splitter and travels exactly along the lens axis — specular glare leaves the frame, while engraving, laser marking and polishing defects become visible. The go-to tool for metal, glass and film.

Price on requestAn engineer will confirm pricing and lead time in the first reply.

Find the right model

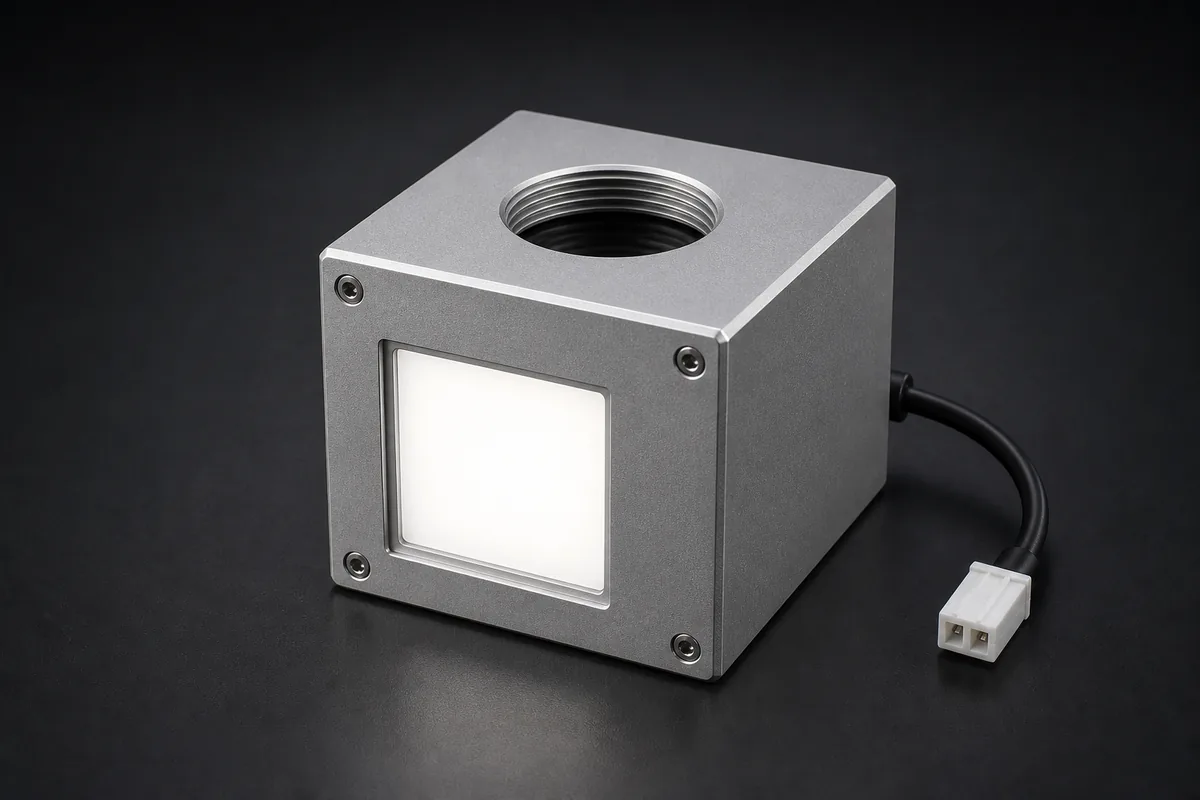

Hikrobot Coaxial lights for specular surfaces

Specifications

Operating temperature	0 °C to 40 °C
Illumination type	Standard Coaxial Light
Connector type	SMR-03V-B
Cooling mode	Natural cooling
Diffuse plate included	Included
Cable length	1 m

Part numbers and versions

White

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LCDS-16-16-W(C)	365002792	—	16 × 16 mm	0.9 W	—	1 m
MV-LCES-20-20-W(C)	365001820	20 × 20 mm	16 × 16 mm	1.8 W	—	0.5 m
MV-LCDS-30-30-W(C)	365001192	—	30 × 30 mm	4.5 W	27 × 27 mm	0.5 m
MV-LCDS-H-30-30-W	310101555	30 × 30 mm	32.5 × 32 mm	3.3 W	—	1 m
MV-LCDM-40-40-R(C)	365003726	—	40 × 40 mm	18 W	—	0.5 m
MV-LCDP-40-40-W(C)	365005902	40 × 40 mm	39 × 38 mm	384 W	33 × 33 mm	0.5 m
MV-LCDS-40-40-W(C)	365004253	40 × 40 mm	38 × 39 mm	5.4 W	—	0.5 m
MV-LCDS-H-40-40-W	310101558	—	40 × 40 mm	5.4 W	—	1 m
MV-LCES-40-40-W(C)	365003716	40 × 40 mm	38 × 40 mm	4.5 W	—	0.5 m
MV-LQPH-50-W(C)	365002608	50 mm	50 × 50 mm	7.2 W	—	0.5 m
MV-LCDS-H-50-50-W	310101561	—	50 × 50 mm	5.5 W	—	1 m
MV-LCDS-55-40-W(C)	365002891	—	55 × 40 mm	4.5 W	48 × 31 mm	0.5 m
MV-LCDM-60-60-W(C)	365002415	—	60 × 60 mm	35 W	—	0.5 m
MV-LCDS-60-60-W(C)	365001194	60 × 60 mm	60 × 61 mm	7.2 W	43 × 43	0.5 m
MV-LCDS-H-60-60-W	310101564	—	60 × 60 mm	9.6 W	—	1 m
MV-LCDS-70-40-W(C)	365002029	—	70 × 40 mm	9 W	—	0.5 m
MV-LCDM-70-70-W(C)	365005794	—	70 × 70 mm	53 W	—	0.5 m
MV-LCDS-H-70-70-W	310101567	—	70 × 70 mm	10.8 W	—	1 m
MV-LCDM-80-80-W(C)	365005912	—	80 × 80 mm	68 W	70 × 70 mm	0.5 m
MV-LCDS-80-80-W(C)	365001278	—	80 × 80 mm	14 W	—	0.5 m
MV-LQPH-100-W(C)	365002002	100 mm	100 × 100 mm	14.4 W	—	0.5 m
MV-LCDS-100-100-W(C)	365002939	100 × 100 mm	100 × 102 mm	22 W	—	0.5 m
MV-LCDS-180-130-W(C)	365005516	180 × 130 mm	130 × 180 mm	44 W	—	0.5 m
MV-LQPH-200-W(C)	365002378	200 mm	200 × 200 mm	28.8 W	—	0.5 m

Red

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LCDS-H-30-30-R	310101557	30 × 30 mm	32.5 × 32 mm	2.2 W	—	1 m
MV-LCDS-H-40-40-R	310101560	—	40 × 40 mm	4.1 W	—	1 m
MV-LCDS-H-50-50-R	310101563	—	50 × 50 mm	4.7 W	—	1 m
MV-LCDS-H-60-60-R	310101566	—	60 × 60 mm	6.7 W	—	1 m
MV-LQPH-150-R(C)	365002323	150 mm	150 × 150 mm	18 W	—	0.5 m

Blue

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LCES-20-20-B(C)	365001821	20 × 20 mm	16 × 16 mm	1.8 W	—	0.5 m
MV-LCDS-30-30-B(C)	310100528	—	30 × 30 mm	4.5 W	27 × 27 mm	0.5 m
MV-LCDS-H-30-30-B	310101556	30 × 30 mm	32.5 × 32 mm	3.6 W	—	1 m
MV-LCDS-40-40-B(C)	365006910	40 × 40 mm	38 × 39 mm	6.3 W	—	0.5 m
MV-LCDS-H-40-40-B	310101559	—	40 × 40 mm	5.9 W	—	1 m
MV-LCES-40-40-B(C)	365001764	40 × 40 mm	38 × 40 mm	5.4 W	—	0.5 m
MV-LCDS-H-50-50-B	310101562	—	50 × 50 mm	7 W	—	1 m
MV-LCDS-H-60-60-B	310101565	—	60 × 60 mm	8.7 W	—	1 m

Green

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LCES-24-24-G(C)	365004176	—	24 × 24 mm	4.6 W	—	0.5 m

Infrared 850 nm

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LCDS-H-70-70-IR850	310101568	—	70 × 70 mm	12.6 W	—	1 m
MV-LQPH-150-IR850(C)	365003373	150 mm	150 × 150 mm	13 W	—	0.5 m

Infrared 940 nm

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LQPH-300-150-IR940(C)	365002195	—	300 × 150 mm	18 W	—	0.5 m
