Lighting · Dome & shadowless
Dome and shadowless lights

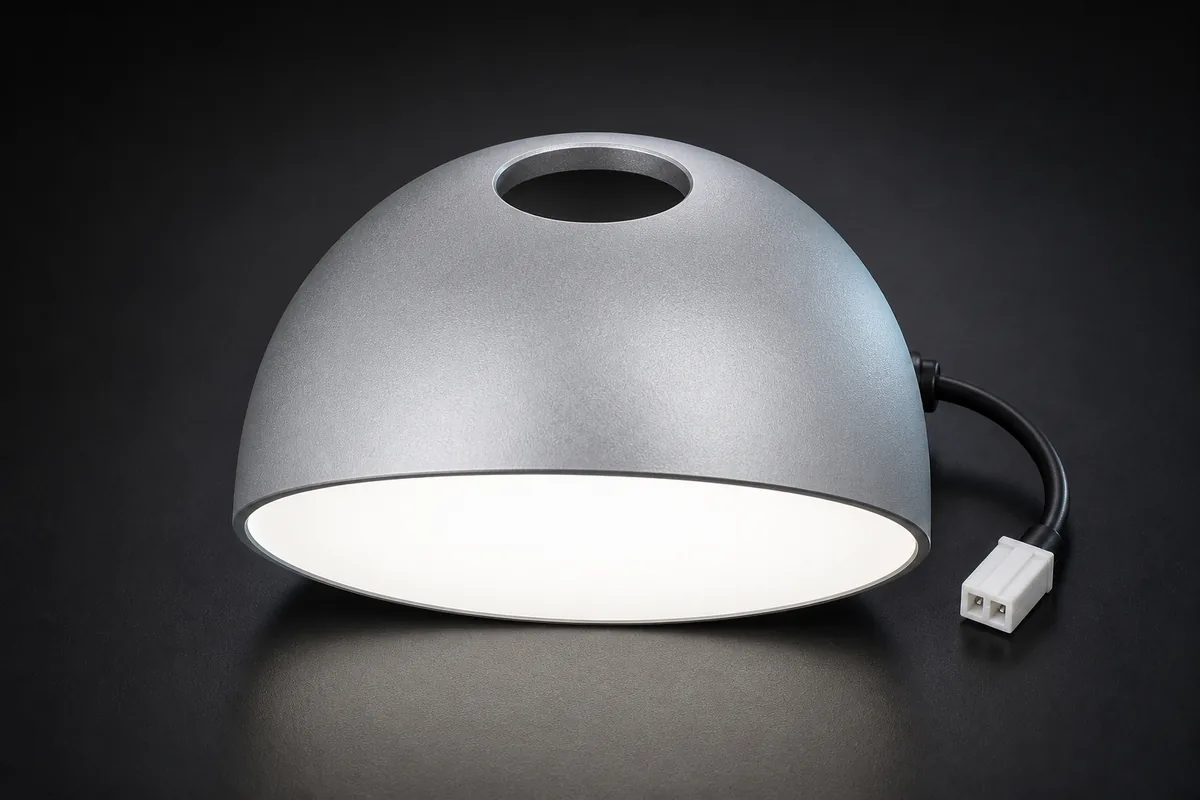

Dome lights
A dome floods the part with diffuse light from every direction — no glare, no shadows on the image. Used for complex relief, packaging, shiny and uneven surfaces where a ring or a panel would create hotspots. Shadowless square and arch fixtures are in the same group.
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Part numbers and versions
| Part number | PN | Housing | Emitting area | Colour | Power | Bore | Cable | |
|---|---|---|---|---|---|---|---|---|
| MV-LGSH-50-W(C) | 365006911 | Ø50 mm | Ø42 mm | White | 3.2 W | Ø21 mm | 0.5 m | |
| MV-LQSS-75-R(C) | 365004577 | 75 mm | 63 × 63 mm | Red | 2.3 W | 20 × 20 mm | 0.5 m | |
| MV-LQSS-75-W(C) | 365006685 | 75 mm | 63 × 63 mm | White | 3.4 W | 20 × 20 mm | 0.5 m | |
| MV-LGSS-80-W(C) | 365003058 | Ø80 mm | Ø48 mm | White | 5.6 W | Ø20 mm | 0.5 m | |
| MV-LGSS-84-B(C) | 365003677 | Ø84 mm | Ø62 mm | Blue | 5.5 W | Ø36 mm | 0.5 m | |
| CST-FQS96-R | 365001275 | 96 mm | 84 × 84 mm | Red | 2.8 W | 30 × 30 mm | 0.5 m | |
| MV-LQSS-96-W(C) | 365002375 | 96 mm | 84 × 84 mm | White | 4.5 W | 30 × 30 mm | 0.5 m | |
| MV-LGSH-100-W(C) | 310100725 | Ø100 mm | Ø92 mm | White | 7.1 W | Ø71 mm | 0.5 m | |
| MV-LGSS-116-W(C) | 365001193 | Ø116 mm | Ø66 mm | White | 17 W | Ø25 mm | 0.5 m | |
| MV-LGSS-120-W(C) | 365002727 | Ø120 mm | Ø78 mm | White | 9.5 W | Ø51 mm | 0.5 m | |
| MV-LQSS-120-W(C) | 365002376 | 120 mm | 108 × 108 mm | White | 4.5 W | 40 × 40 mm | 0.5 m | |
| MV-LGAT-120-120-W(C) | 365002345 | 120 mm | 110 × 72 mm | White | 14 W | Ø40 mm | 0.5 m | |
| MV-LGSH-150-W(C) | 365002341 | Ø150 mm | Ø142 mm | White | 23 W | Ø80 mm | 0.5 m | |
| MV-LGSS-150-W(C) | 365004429 | Ø150 mm | Ø96 mm | White | 21 W | Ø35 mm | 0.5 m | |
| MV-LGSS-175-B(C) | 365001983 | Ø175 mm | Ø116 mm | Blue | 28 W | Ø35 mm | 0.5 m | |
| MV-LGSS-175-W(C) | 365002350 | Ø175 mm | Ø116 mm | White | 28 W | Ø35 mm | 0.5 m | |
| MV-LGSH-180-W(C) | 365002194 | Ø180 mm | Ø172 mm | White | 13 W | Ø151 mm | 0.5 m | |
| MV-LGSS-198-R(C) | 310100726 | Ø198 mm | Ø138 mm | Red | 23 W | Ø30 mm | 0.5 m | |
| MV-LGAT-200-200-W(C) | 365002346 | 200 mm | 190 × 152 mm | White | 28 W | Ø40 mm | 0.5 m | |
| MV-LGSS-260-W(C) | 365002377 | Ø260 mm | Ø193 mm | White | 45 W | Ø48 mm | 0.5 m | |
| MV-LQSS-300-200-W(C) | 365005509 | 300 × 200 mm | 274 × 174 mm | White | 18 W | — | 0.5 m |
