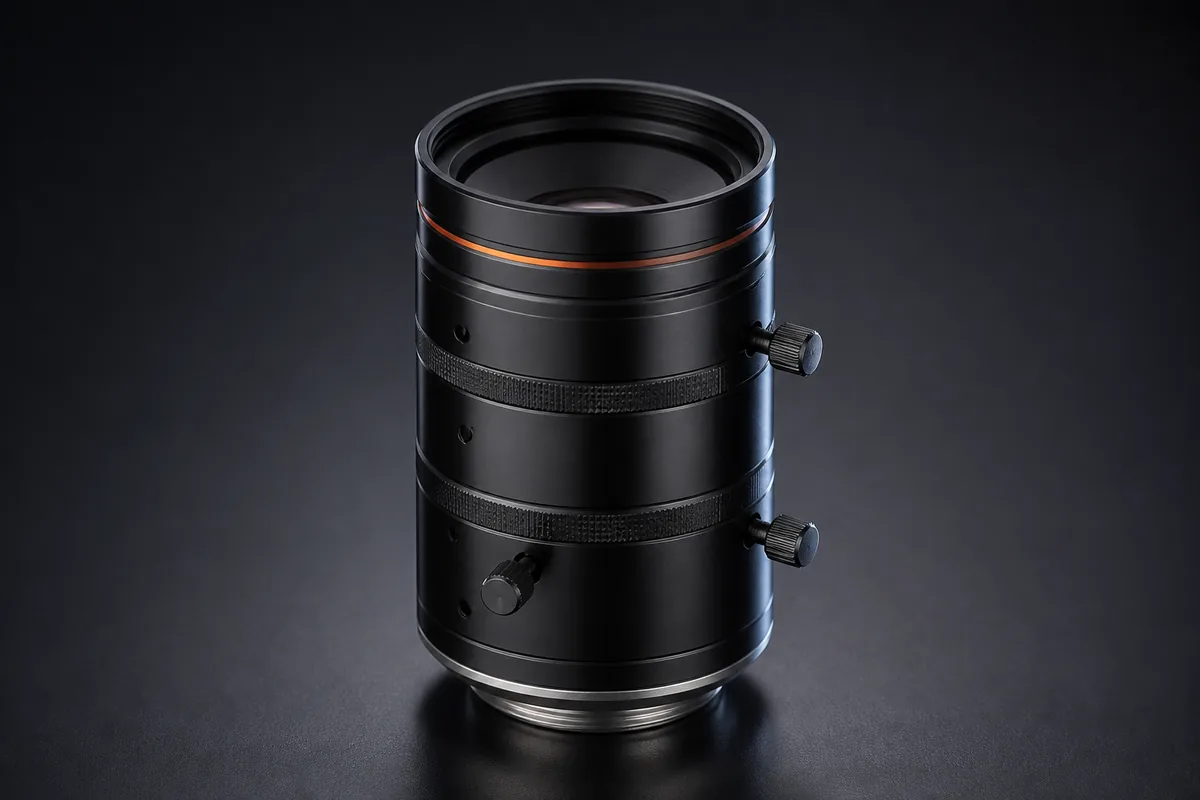

Lenses for 1.2″ sensors (25 MP)
Optics for 25 MP cameras in the 1.2″ format serve tasks where one frame must show both a large part and a small defect on it: PCB inspection, print verification, measurement across the whole product. Focal lengths from 12 to 50 mm, C-mount, Ø19.3 mm image circle.
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Operating temperature | –10 °C to 50 °C (14 °F to 122 °F); –10°C to 50°C (14 °F to 122 °F) |
| Iris control | Manual; Fixed |
| Focus control | Manual |
| Flange focal length | 17.526 mm |
| Filter thread | M40.5 × 0.5; M37 × 0.5; M40.5 × P0.5; M35.5 × P0.5 |
Part numbers and versions
| Part number | PN | Focal length | Aperture | Format | Mount | MOD | |
|---|---|---|---|---|---|---|---|
| MVL-KF1224M-25MP | 310100649 | 12 mm | F2.4 to F16 | Ø19.3 mm (1.2’’) | C-mount | 0.1 m | |
| MVL-KF1624M-25MP | 310100650 | 16 mm | F2.4 to F16 | Ø19.3 mm (1.2’’) | C-mount | 0.1 m | |
| MVL-KF1640-25MP | 310101890 | 16 mm | F4.0 | Ø 19.3 mm (1.2") | C-mount | 0.08 m | |
| MVL-KF2524M-25MP | 310100651 | 25 mm | F2.4 to F16 | Ø19.3 mm (1.2’’) | C-mount | 0.15 m | |
| MVL-KF2540-25MP | 310101891 | 25 mm | F4.0 | Ø19.3 mm (1.2’’) | C-mount | 0.08 m | |
| MVL-KF3524M-25MP | 310100652 | 35 mm | F2.4 to F16 | Ø19.3 mm (1.2’’) | C-mount | 0.15 m | |
| MVL-KF3540-25MP | 310102163 | 35 mm | F4.0 | Ø 19.3 mm (1.2’’) | C-mount | 0.12 m | |
| MVL-KF5024M-25MP | 310100653 | 50 mm | F2.4 to F16 | Ø19.3 mm (1.2’’) | C-mount | 0.25 m | |
| MVL-KF5040-25MP | 310102164 | 50 mm | F4.0 | Ø19.3 mm (1.2’’) | C-mount | 0.15 m |
How to choose
The 24–25 MP class on 1.2″ means a 2.74 μm pixel, half the usual size. A lens rated for 5 MP becomes the limiting factor on such a camera: resolution is capped by the optics, not the sensor. Vibration resistance matters too — at this pixel size a shift is already visible.
