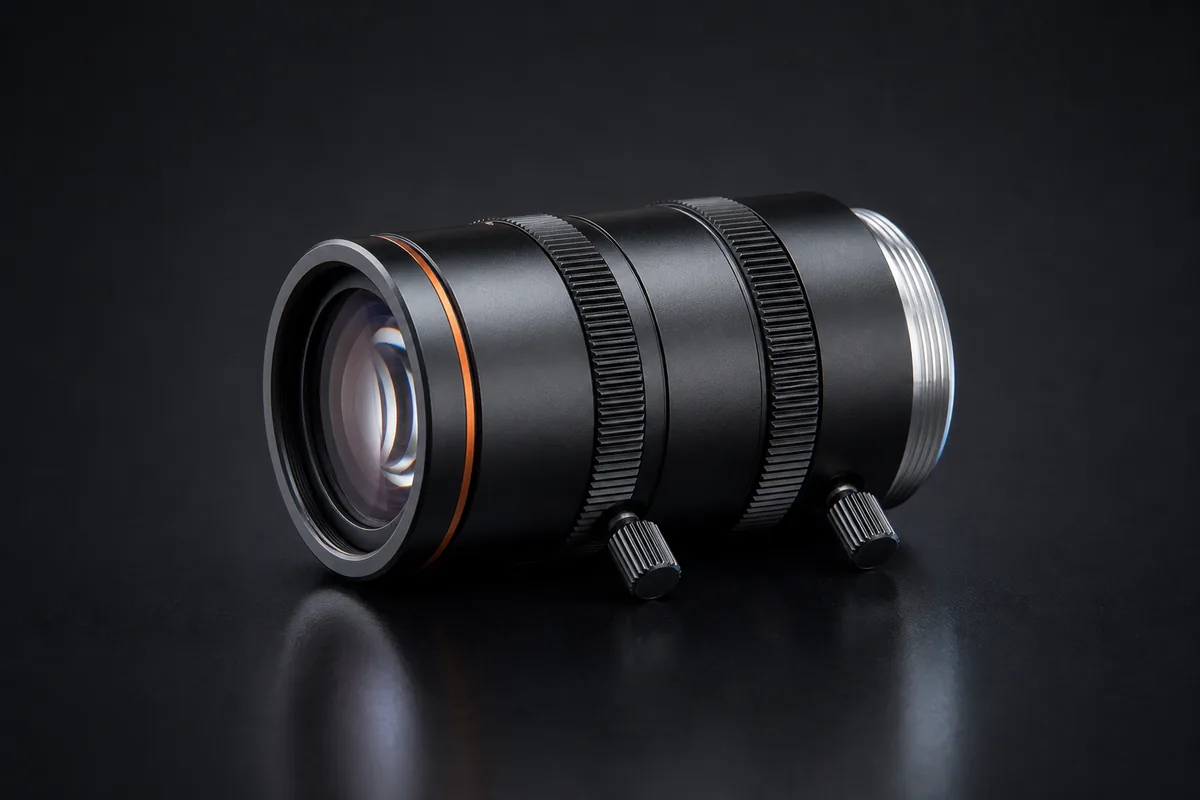

Lenses · Fixed focal length
Lenses for 2/3″ sensors (5–10 MP)
2/3″ is the format of 5–10 MP cameras with larger pixels: at the same resolution the sensor collects more light, so exposure can be shorter and a moving conveyor is captured without blur. Focal lengths from 8 to 75 mm, C-mount. Such a lens also covers smaller formats — 1/1.8″, 1/2″, 1/2.5″ — which is why it is chosen when the camera may still change.
Specifications
| Operating temperature | –10 °C to 50 °C (14 °F to 122 °F); –20 °C to 70 °C (–4 °F to 158 °F) |
| Iris control | Manual; Manuals |
| Focus control | Manual |
| Flange focal length | 17.526 mm |
Part numbers and versions
| Part number | PN | Focal length | Aperture | Format | Mount | MOD | |
|---|---|---|---|---|---|---|---|
| MVL-MF0824M-5MPE | 310100768 | 8 mm | F2.4 to F16 | Ø 11 mm (2/3") | C-mount | 0.1 m | |
| MVL-MF0824M-8MPS | 310103005 | 8 mm | F2.4 to F16 | Ø11.0 mm (2/3’’) | C-mount | 0.1 m | |
| MVL-MF0828M-10MPE | 310102367 | 8 mm | F2.8 to F16 | Φ11.2 mm (2/3") | C-mount | 0.1 m | |
| MVL-MF0828M-8MP | 310100626 | 8 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | 0.1 m | |
| MVL-MF1224M-5MPE | 310100769 | 12 mm | F2.4 to F16 | Ø 11 mm (2/3") | C-mount | 0.15 m | |
| MVL-MF1228M-10MPE | 310102368 | 12 mm | F2.8 to F16 | Φ11.2 mm (2/3") | C-mount | 0.1 m | |
| MVL-MF1228M-8MP | 310100627 | 12 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | 0.1 m | |
| MVL-MF1228M-8MPS | 310102702 | 12 mm | F2.8 to F16 | Φ11 mm (2/3’’) | C-mount | 0.1 m | |
| MVL-MF1618M-5MPE | 310100770 | 16 mm | F1.8 to F16 | Ø 11 mm (2/3") | C-mount | 0.2 m | |
| MVL-MF1628M-10MPE | 310102369 | 16 mm | F2.8 to F16 | Φ11.2 mm (2/3") | C-mount | 0.1 m | |
| MVL-MF1628M-8MP | 310100628 | 16 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | 0.1 m | |
| MVL-MF1628M-8MPS | 310102703 | 16 mm | F2.8 to F16 | Φ11 mm (2/3’’) | C-mount | 0.1 m | |
| MVL-MF2518M-5MPE | 310100771 | 25 mm | F1.8 to F16 | Ø 11 mm (2/3") | C-mount | 0.2 m | |
| MVL-MF2528M-10MPE | 310102370 | 25 mm | F2.8 to F16 | Φ11.2 mm (2/3") | C-mount | 0.15 m | |
| MVL-MF2528M-8MP | 310100629 | 25 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | 0.1 m | |
| MVL-MF3518M-5MPE | 310100772 | 35 mm | F1.8 to F16 | Ø 11 mm (2/3") | C-mount | 0.25 m | |
| MVL-MF3528M-10MPE | 310102371 | 35 mm | F2.8 to F16 | Φ11.2 mm (2/3") | C-mount | 0.15 m | |
| MVL-MF3528M-8MP | 310100630 | 35 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | 0.15 m | |
| MVL-MF5028M-10MPE | 310102377 | 50 mm | F2.8 to F16 | Φ11.2 mm (2/3") | C-mount | 0.237 m | |
| MVL-MF5028M-5MPE | 310100773 | 50 mm | F2.8 to F16 | Ø 11 mm (2/3") | C-mount | 0.4 m | |
| MVL-MF5028M-8MP | 310100631 | 50 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | 0.4 m | |
| MA7520M-5MP | 102200963 | 75 mm | F2.0 to F22 | Ø11 mm (2/3") | C-mount | 0.9 m |
How to choose
These lenses have an 11 mm image circle; a 2/3″ sensor is about 8.5 mm wide (check your camera datasheet for the exact figure). The estimate is the same: f ≈ WD × sensor width / field width, with the exact field taken from the lens FOV table. Watch the minimum object distance: closer than that there is no focus, and an extension ring buys closer focus only at the cost of infinity.
