Lighting · Flat panel

Flat panel lights for machine vision

Flat lights

Flat panels deliver an even field of light across the whole inspection area — mounted above for code reading and general inspection, or below as a backlight when you need the part silhouette. Sizes from 27 × 27 to 900 × 750 mm, plus Ø116–160 mm round panels.

Price on requestAn engineer will confirm pricing and lead time in the first reply.

Find the right model

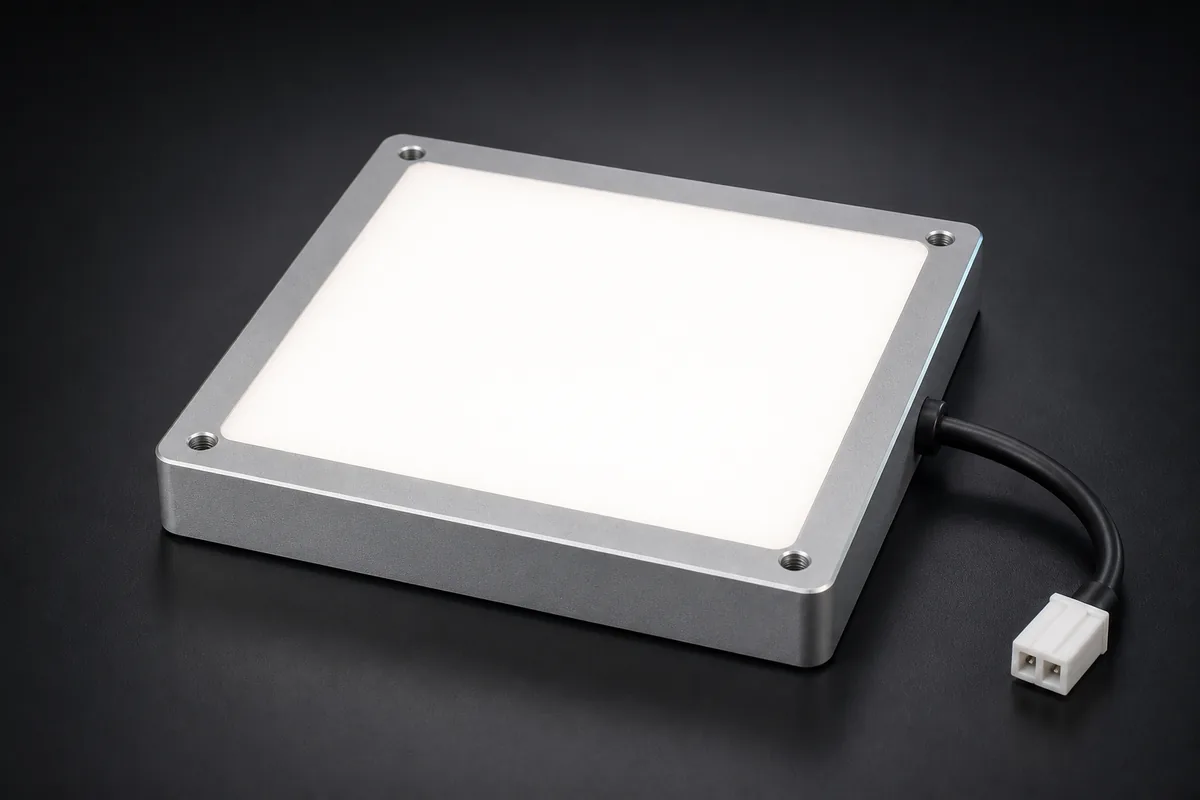

Hikrobot Flat panel lights for machine vision

Specifications

Product type	Standard Flat Light
Operating temperature	0 to 40 C
Light source type	high-density array LED
Lighting type	backplane light
Input voltage	24 VDC
Cooling mode	Natural cooling
Diffuse plate included	yes
Cable length	1 m

Part numbers and versions

White

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LBPS-27-27-W(C)	365005002	—	27 × 27 mm	1.7 W	—	0.5 m
MV-LBSS-27-27-W(C)	365004324	—	27 × 27 mm	1.7 W	—	0.5 m
MV-LBSS-H-30-30-W2	310102839	30 × 30 mm	30 mm × 30 mm	2.3 W	—	1 m
MV-LBSS-H-50-30-W2	310102849	50 × 30 mm	50 mm × 30 mm	3.4 W	—	1 m
MV-LBFS-50-50-B(C)	365003355	—	50 × 50 mm	6.8 W	—	0.5 m
MV-LBPS-50-50-W(C)	310100797	—	50 × 50 mm	3 W	—	0.5 m
MV-LBSS-50-50-W(C)	365001435	—	50 × 50 mm	3 W	—	0.5 m
MV-LBSS-H-50-50-W2	310102835	50 × 50 mm	50 mm × 50 mm	4.4 W	—	1 m
MV-LBSS-70-70-W(C)	365002609	—	70 × 70 mm	6.3 W	—	0.5 m
MV-LBSS-H-80-80-W2	310102848	80 × 80 mm	80 mm × 80 mm	14.9 W	—	1 m
MV-LBPS-100-50-W(C)	365004932	—	100 × 50 mm	5.5 W	—	0.5 m
MV-LBSS-100-80-W(C)	365003761	—	100 × 80 mm	8.4 W	—	0.5 m
MV-LBFS-100-100-W(C)	365001578	—	100 × 100 mm	13.6 W	—	0.5 m
MV-LBPS-100-100-W(C)	310100798	—	100 × 100 mm	11 W	—	0.5 m
MV-LBSS-100-100-W(C)	365002324	—	100 × 100 mm	11 W	—	0.5 m
MV-LBSS-H-100-100-W2	310102843	100 × 100 mm	100 mm × 100 mm	23 W	—	1 m
MV-LBFS-110-50-W(C)	365002958	—	110 × 50 mm	10.2 W	—	0.5 m
MV-LBSS-120-120-W(C)	365003107	—	120 × 120 mm	12 W	—	0.5 m
MV-LBSS-H-120-120-W2	310102859	120 × 120 mm	120 mm × 120 mm	25.1 W	—	1 m
MV-LBPS-150-100-W(C)	310100723	—	150 × 100 mm	16 W	—	0.5 m
MV-LBSS-150-100-W(C)	365002575	—	150 × 100 mm	16 W	—	0.5 m
MV-LBSS-H-150-100-W2	310102860	150 × 100 mm	150 mm × 100 mm	27.3 W	—	1 m
MV-LBFH-150-150-W(C)	365001801	—	150 × 150 mm	18 W	—	0.5 m
MV-LBSS-H-150-150-W2	310102861	150 × 150 mm	150 mm × 150 mm	40 W	—	1 m
MV-LBSS-180-150-W(C)	365001925	—	180 × 150 mm	34 W	—	0.5 m
MV-LBSS-182-182-W(C)	365004076	—	182 × 182 mm	29 W	—	0.5 m
MV-LBSS-200-150-W(C)	365001297	—	200 × 150 mm	42 W	—	0.5 m
MV-LBSS-200-180-W(C)	365003337	—	200 × 180 mm	31 W	—	0.5 m
MV-LBFH-200-200-W(C)	365005021	—	200 × 200 mm	24 W	—	0.5 m
MV-LBSS-200-200-W(C)	365003338	—	200 × 200 mm	42 W	—	0.5 m
MV-LBSS-H-200-200-W2	310102862	200 × 200 mm	200 mm × 200 mm	64.7 W	—	1 m
MV-LBSS-210-140-W(C)	365001819	—	210 × 140 mm	16 W	—	0.5 m
MV-LBSS-236-86-W(C)	365003762	—	236 × 86 mm	27 W	—	0.5 m
MV-LBSS-H-250-150-W2	310102863	250 × 150 mm	250 mm × 150 mm	53.9 W	—	1 m
MV-LBFH-250-200-W(C)	365002342	—	250 × 200 mm	28 W	—	0.5 m
MV-LBPS-250-200-W(C)	310101325	—	250 × 200 mm	39 W	—	0.5 m
MV-LBSS-250-250-W(C)	365001822	—	250 × 250 mm	48 W	—	0.5 m
MV-LBSS-H-250-250-W2	310102850	250 × 250 mm	250 mm × 250 mm	54.9 W	—	1 m
MV-LBSS-300-100-W(C)	365006982	300 × 100 mm	288 × 88 mm	25 W	—	0.5 m
MV-LBSS-300-150-W(C)	365003505	—	300 × 150 mm	48 W	—	0.5 m
MV-LBFS-300-200-W(C)	365005423	—	300 × 200 mm	32 W	—	0.5 m
MV-LBPS-300-200-W(C)	365005518	—	300 × 200 mm	63 W	—	0.5 m
MV-LBSS-300-200-W(C）	365005517	—	300 × 200 mm	63 W	—	0.5 m
MV-LBSS-H-300-200-W2	310102847	300 × 200 mm	300 mm × 200 mm	65.5 W	—	1 m
MV-LBPS-300-260-W(C)	365004764	300 × 260 mm	288 × 248 mm	59 W	—	1 m
MV-LBSS-300-280-W(C)	365005566	—	300 × 280 mm	72 W	—	0.5 m
MV-LBSS-H-300-300-W2	310102836	300 × 300 mm	300 mm × 300 mm	87.9 W	—	1 m
MV-LBFS-310-110-W(C）	365005080	—	310 × 110 mm	48 W	—	0.5 m
MV-LBFS-320-120-W(C)	365002156	—	320 × 120 mm	46 W	—	0.5 m
MV-LBFS-320-320-W(C)	365001853	—	320 × 320 mm	36 W	—	0.5 m
MV-LBSS-H-350-250-W2	310102851	350 × 250 mm	350 mm × 250 mm	87.4 W	—	1 m
MV-LBFS-400-300-W(C)	365006755	—	400 × 300 mm	56 W	—	0.5 m
MV-LBPS-400-300-W(C)	365003985	—	400 × 300 mm	128 W	—	0.5 m
MV-LBSS-400-300-W(C)	365002333	—	400 × 300 mm	124 W	—	0.5 m
MV-LBSS-H-400-300-W2	310102837	400 × 300 mm	400 mm × 300 mm	124.9 W	—	1 m
MV-LBFS-400-400-W(C)	365002603	—	400 × 400 mm	56 W	—	0.5 m
MV-LBSS-400-400-W(C)	365002825	—	400 × 400 mm	142 W	—	0.5 m
MV-LBFS-450-350-W(C)	365002089	—	450 × 350 mm	56 W	—	0.5 m
MV-LBSS-500-100-W(C)	365002914	—	500 × 100 mm	52 W	—	0.5 m
MV-LBSS-500-500-W(C)	365003023	—	500 × 500 mm	192 W	—	0.5 m
MV-LBFH-600-400-W(C)	365001798	—	600 × 400 mm	80 W	—	0.5 m
MV-LBFS-600-400-W(C)	365005520	—	600 × 400 mm	80 W	—	0.5 m
MV-LBSS-780-750-W(C)	365003354	780 × 750 mm	750 × 780 mm	96 W	—	0.5 m
MV-LBSS-900-400-W(C)	365001802	—	900 × 400 mm	380 W	—	0.5 m

Red

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LBSS-H-30-30-R2	310102463	30 × 30 mm	30 mm × 30 mm	1.7 W	—	1 m
MV-LBSS-H-50-30-R2	310102538	50 × 30 mm	50 mm × 30 mm	2.4 W	—	1 m
MV-LBSS-H-50-50-R2	310102455	50 × 50 mm	50 mm × 50 mm	3.2 W	—	1 m
MV-LBSS-H-80-80-R2	310102536	80 × 80 mm	80 mm × 80 mm	10.8 W	—	1 m
MV-LBSS-100-100-R(C)	365002379	—	100 × 100 mm	8.9 W	—	0.5 m
MV-LBSS-H-100-100-R2	310102478	100 × 100 mm	100 mm × 100 mm	17.2 W	—	1 m
MV-LGES-116-R(C)	365002996	Ø116 mm	Ø90 mm	2.4 W	Ø44 mm	0.5 m
MV-LBSS-H-120-120-R2	310102644	120 × 120 mm	120 mm × 120 mm	16.9 W	—	1 m
MV-LBSS-H-150-100-R2	310102646	150 × 100 mm	150 mm × 100 mm	20 W	—	1 m
MV-LBFH-150-150-R(C)	365002055	—	150 × 150 mm	16.8 W	—	0.5 m
MV-LBSS-H-150-150-R2	310102648	150 × 150 mm	150 mm × 150 mm	27.9 W	—	1 m
MV-LBSS-H-200-200-R2	310102650	200 × 200 mm	200 mm × 200 mm	48.6 W	—	1 m
MV-LBSS-H-250-150-R2	310102652	250 × 150 mm	250 mm × 150 mm	38.3 W	—	1 m
MV-LBFH-250-200-R(C)	365001716	—	250 × 200 mm	28 W	—	0.5 m
MV-LBSS-H-250-250-R2	310102540	250 × 250 mm	250 mm × 250 mm	41.2 W	—	1 m
MV-LBSS-H-300-200-R2	310102483	300 × 200 mm	300 mm × 200 mm	37 W	—	1 m
MV-LBSS-H-300-300-R2	310102457	300 × 300 mm	300 mm × 300 mm	64.4 W	—	1 m
MV-LBSS-H-350-250-R2	310102542	350 × 250 mm	350 mm × 250 mm	64.4 W	—	1 m
MV-LBSS-H-400-300-R2	310102838	400 × 300 mm	400 mm × 300 mm	89.5 W	—	1 m

Blue

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LBSS-H-30-30-B2	310102462	30 × 30 mm	30 mm × 30 mm	1.8 W	—	1 m
MV-LBSS-H-50-30-B2	310102537	50 × 30 mm	50 mm × 30 mm	2.7 W	—	1 m
MV-LBSS-H-50-50-B2	310102450	50 × 50 mm	50 mm × 50 mm	3.7 W	—	1 m
MV-LBSS-H-80-80-B2	310102535	80 × 80 mm	80 mm × 80 mm	11.3 W	—	1 m
MV-LBPS-100-100-B(C)	365001745	—	100 × 100 mm	11 W	—	0.5 m
MV-LBSS-H-100-100-B2	310102477	100 × 100 mm	100 mm × 100 mm	18.2 W	—	1 m
MV-LBSS-H-120-120-B2	310102643	120 × 120 mm	120 mm × 120 mm	19.5 W	—	1 m
MV-LBSS-H-150-100-B2	310102645	150 × 100 mm	150 mm × 100 mm	19 W	—	1 m
MV-LBSS-H-150-150-B2	310102647	150 × 150 mm	150 mm × 150 mm	32 W	—	1 m
MV-LGES-160-B(C)	365005521	Ø160 mm	Ø132 mm	5.9 W	Ø44 mm	0.5 m
MV-LBSS-H-200-200-B2	310102649	200 × 200 mm	200 mm × 200 mm	55.2 W	—	1 m
MV-LBSS-H-250-150-B2	310102651	250 × 150 mm	250 mm × 150 mm	40.7 W	—	1 m
MV-LBSS-H-250-250-B2	310102539	250 × 250 mm	250 mm × 250 mm	45.1 W	—	1 m
MV-LBSS-H-300-200-B2	310102482	300 × 200 mm	300 mm × 200 mm	49.6 W	—	1 m
MV-LBSS-H-300-300-B2	310102456	300 × 300 mm	300 mm × 300 mm	71.8 W	—	1 m
MV-LBSS-H-350-250-B2	310102541	350 × 250 mm	350 mm × 250 mm	67.3 W	—	1 m
MV-LBSS-H-400-300-B2	310102458	400 × 300 mm	400 mm × 300 mm	102.4 W	—	1 m

Green

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LBPS-50-50-G(C)	365002610	—	50 × 50 mm	3 W	—	0.5 m

Infrared 940 nm

Part number	PN	Housing	Emitting area	Power	Bore	Cable
MV-LBSS-100-100-IR940(C）	365005081	—	100 × 100 mm	8.9 W	—	0.5 m
