Lenses · Large format

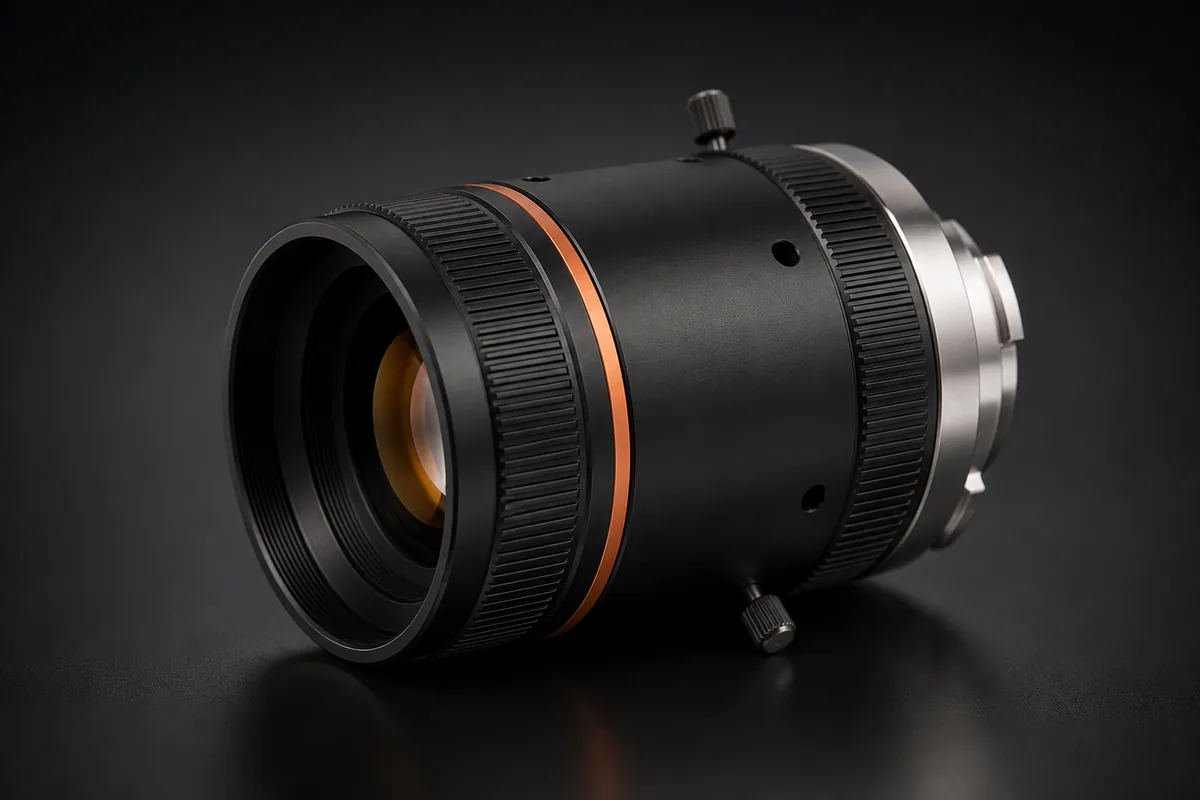

Large-format M72 and F-mount lenses
Once the sensor exceeds 4/3″, a C-mount thread physically cannot pass the required image circle — that is where M72 and the F-mount bayonet begin. These are optics for high-resolution cameras and large fields of view: glass panel inspection, solar modules, large products imaged whole. Focal lengths from 25 to 95 mm.
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Operating temperature | –10 °C to 50 °C (14 °F to 122 °F); –10 °C to 50 °C (14 °F to 122°F); –10 °C to 50°C (14 °F to 122 °F) |
| Iris control | Manual |
| Focus control | Manual |
| Flange focal length | 46.5 mm; 19.55 mm; 12 mm |
Part numbers and versions
F-mount mount
| Part number | PN | Focal length | Working distance range | Aperture | Format | |
|---|---|---|---|---|---|---|
| LF2528M-F | 102201711 | 25 mm | 140 mm to infinity | F2.8 to F32 | Φ43.2 mm | |
| MVL-LF3528M-F | 102202628 | 35 mm | 129 mm to 728 mm | F2.8 to F16 | Φ43.2 mm | |
| MVL-LF3540M-F | 310101901 | 35 mm | 700 mm to infinity (tolerance: ±5 mm) | F4.0 to F16 | Φ43.2 mm | |
| MVL-LS3528M-F(0.0292X | 102203329 | 35mm | — | F2.8 | Φ45 mm | |
| MVL-LF5040M-F | 102202292 | 50 mm | 150 mm to infinity | F4.0 to F22 | Ø 56 mm | |
| MVL-LF8040M-F | 102202048 | 80 mm | 235 mm to infinity | F4.0 to F22 | Ø 56 mm |
M72 × 0.75 mount
| Part number | PN | Focal length | Working distance range | Aperture | Format | |
|---|---|---|---|---|---|---|
| MVL-LF3040M-005-M72 | 310102270 | 30 mm | 205 mm to 1000 mm (tolerance: ± 5 mm) | F4.0 to F16 | Φ58 mm | |
| MVL-LF4040M-01-M72 | 310102150 | 40 mm | 200 mm to infinity (tolerance: ±5 mm) | F4.0 to F22 | Φ58 mm | |
| MVL-LF4056M-017V-M72 | 365002858 | 40mm | — | F5.6 | Φ60 mm | |
| LF5545M-M72 | 102202636 | 55 mm | 98 mm to infinity | F4.5 to F22 | Φ67 mm | |
| MVL-LF6040M-013-M72 | 310102151 | 60 mm | 200 mm to 900 mm (tolerance: ±5 mm) | F4.0 to F22 | Ø58 mm | |
| MVL-LF6040M-013-M72 V2.0 | 310103020 | 60mm | — | F4.0 | Φ58 mm | |
| MVL-LF6040M-0167V-M72 | 310101114 | 60 mm | 219 mm to 563 mm (tolerance: ±5 mm) | F4.0 to F32 | Φ64 mm | |
| MVL-LF6040M-0168V-M72 | 102204094 | 60 mm | 945 mm to 345 mm (tolerance: ±5 mm) | F4.0 to F22 | Φ60 mm | |
| MVL-LF8040M-021V-M72 | 102204486 | 80 mm | 750 mm to 450 mm to 325 mm ± 9 mm | F4 to F22 | Ø60 mm | |
| LF8528M-M72 | 102202929 | 85mm | — | F2.8 | Φ62 mm | |
| LF9040M-M72 | 102202895 | 90 mm | 722 mm to 1229 mm ± 5 mm | F4.0 to F16 | Ø67 mm | |
| MVL-LF9556M-025V-M72 | 102205938 | 95 mm | 350 mm to 700 mm (tolerance: ±5 mm) | F5.6 to F22 | Φ67 mm |
How to choose
F-mount is a photographic bayonet with a longer flange distance, so such a lens will not fit a C-mount camera without an adapter. M72→F and M42→F adapters are available, but each adds its own thickness that has to be accounted for in the flange distance.
