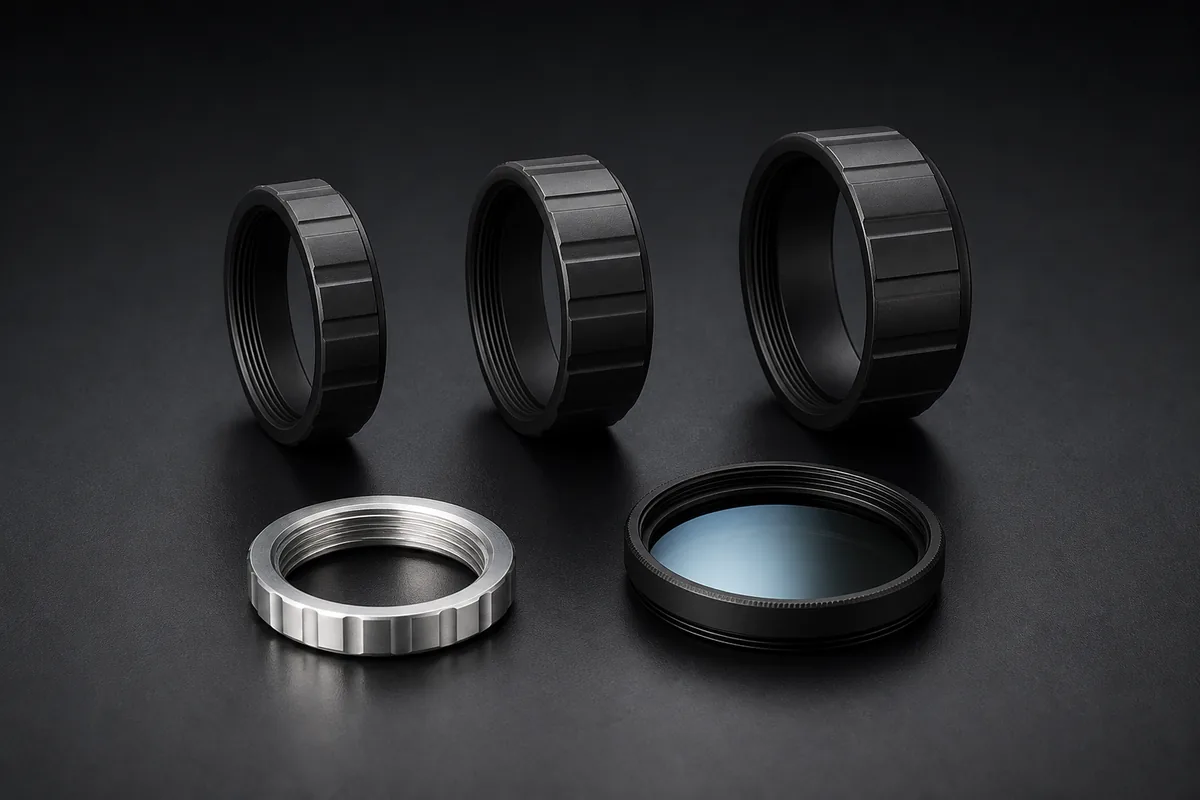

Lens accessories: adapters, rings, polarizers
The small parts without which optics will not meet the camera. Adapter rings join different mounts — M42, M58, M72 to C-mount and F-mount. C-C extension rings shorten the minimum object distance when a part has to be imaged larger. Linear polarizers suppress specular glare — primarily from glass, film and plastic; on metal they only help in a cross-polarized lighting setup.
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Part numbers and versions
Adapters and extension rings
| Part number | PN | Thread | Thickness | |
|---|---|---|---|---|
| Adapter C-C T10 | 102201857 | C-mount to C-mount | 10 mm | |
| Adapter C-C T5 | 310100686 | C-mount to C-mount | 5 mm | |
| Adapter, C-C T20 | 102201848 | C-mount to C-mount | 20 mm | |
| V004-C Transfer | 190400547 | M42 × 1.0 to C-mount | 5.5 mm | |
| V004-X CAMERA CS Adapter | 190401513 | M42 × 1.0 to CS-mount | 1 mm | |
| lens Adapter M42x1.0-F T34.5 | 102201946 | M42 × 1.0 to F-mount | 34.5 mm | |
| lens Adapter M72x1.0-F T36.4 | 102202129 | M72 × 0.75 to F-mount | 36.4 mm | |
| lens adapter, M58x0.75-C T6.02 | 102201274 | M58 × 0.75 to C-mount | 6.02 mm | |
| lens adapter, M58x0.75-F T35 | 102201275 | M58 × 0.75 to F-mount | 35 mm | |
| lens adapter, M72xF | 190405111 | M72 × 0.75 to F-mount | 34.5 mm |
Linear polarizers
| Part number | PN | Thread | Thickness | |
|---|---|---|---|---|
| Linear Polarizer PL270-1 | 102201574 | M27 × 0.5 | 8 mm | |
| Linear Polarizer PL305-3 | 102204558 | M30.5 × 0.5 | 8 mm | |
| Linear Polarizer PL355-2 | 102200454 | M35.5 × 0.5 | 8 mm | |
| Linear Polarizer PL405-1 | 102200461 | M40.5 × 0.5 | 8 mm | |
| Linear Polarizer PL430-2 | 102200531 | M43 × 0.5 | 8 mm | |
| Polarizer PL-M37mm*P0.5 | 102204526 | M37 × 0.5 | 8 mm |
Shim washers
| Part number | PN | Thread | Thickness | |
|---|---|---|---|---|
| LENS MAT-D33d26t1 | 190401027 | C-mount to C-mount | 1 mm | |
| Lens Washer-D33d26t2 | 190400763 | C-mount to C-mount | 2 mm |
How to choose
An adapter is chosen by the pair of mounts and by thickness: it counts towards the flange distance, and an extra millimetre shifts focus. A polarizer is chosen by the lens front thread (M27, M30.5, M35.5, M37, M40.5, M43) — listed in the lens specification as filter thread.
