High-brightness line lights for line scan cameras

Line scan lighting

A narrow, intense stripe of light for line scan cameras: all the output is concentrated into a line about 17 mm wide so exposure holds up at line speed. Lengths from 100 to 2100 mm; long versions are dual-channel.

Price on requestAn engineer will confirm pricing and lead time in the first reply.

Find the right model

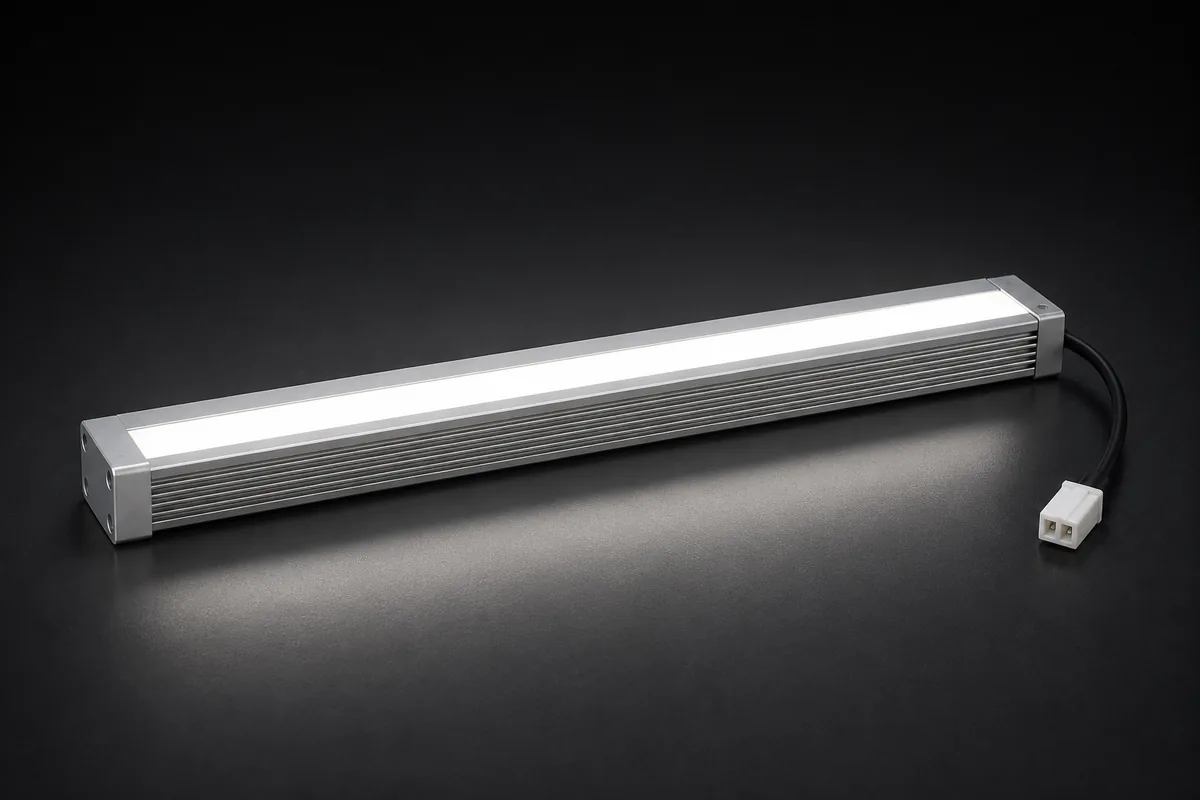

Hikrobot High-brightness line lights for line scan cameras

Specifications

Operating temperature	0 °C to 40°C
Illumination type	Line-Scan Light
Light source type	LED lamp beads
Input voltage	48 VDC
Center illuminance	≥ 1000K lux @ WD = 50 mm
Cooling mode	Fan cooling
Compatible controller	MV-LE201-200W48-2TD; MV-LE201-500W48-2TD; MV-LE201-750W48-2TD; MV-LE201-1200W48-2TD

Part numbers and versions

Part number	PN	Housing	Emitting area	Colour	Power	Cable
MV-LTDS-H-100-W	310101004	100 mm	100 × 17 mm	White	42 W	—
MV-LTDS-150-W(C)	365002351	150 mm	150 × 17 mm	White	20 W	1.5 m
MV-LTPS-150-W(C)	365001231	150 mm	140 × 15 mm	White	20 W	0.5 m
MV-LTDS-H-200-W	310101068	200 mm	200 × 17 mm	White	84 W	—
MV-LTDS-300-W(C)	365004041	300 mm	300 × 17 mm	White	40 W	1.5 m
MV-LTDS-H-300-W	310101069	300 mm	300 × 17 mm	White	126 W	—
MV-LTHS-300-W(C)	365001177	300 mm	300 × 17 mm	White	108 W	1.5 m
MV-LTDS-H-400-W	310101070	400 mm	400 × 17 mm	White	168 W	—
MV-LTHS-450-W(C)	365002554	450 mm	450 × 17 mm	White	162 W	1.5 m
MV-LTPS-450-W(C)	365005432	450 mm	442 × 17 mm	White	58 W	0.5 m
MV-LTDS-H-500-W	310100934	500 mm	500 × 17 mm	White	210 W	—
MV-LTDS-H-600-W	310101071	600 mm	600 × 17 mm	White	252 W	—
MV-LTDS-H-700-W	310101072	700 mm	700 × 17 mm	White	294 W	—
MV-LTDS-750-W(C)	365004709	750 mm	750 × 17 mm	White	96 W	1.5 m
MV-LTDS-H-800-W	310101073	800 mm	800 × 17 mm	White	336 W	—
MV-LTHS-800-W(C)	310101324	800 mm	800 × 17 mm	White	276 W	1.5 m
MV-LTDS-H-900-W	310101074	900 mm	900 × 17 mm	White	378 W	—
MV-LTDS-H-1000-W	310101005	1000 mm	1000 × 17 mm	White	420 W	—
MV-LTDS-H-1100-W	310101075	1100 mm	1100 × 17 mm	White	462 W	—
MV-LTDS-H-1200-W	310101076	1200 mm	1200 × 17 mm	White	504 W	—
MV-LTDS-H-1300-W	310101077	1300 mm	1300 × 17 mm	White	546 W	—
MV-LTDS-H-1400-W	310101078	1400 mm	1400 × 17 mm	White	588 W	—
MV-LTDS-H-1500-W	310101006	1500 mm	1500 × 17 mm	White	630 W	—
MV-LTHS-1500-W(C)	365002013	1500 mm	1500 × 17 mm	White	540 W	1.5 m
MV-LTHS-1950-W(C)	365002686	1950 mm	1950 × 17 mm	White	702 W	1.5 m
MV-LTDS-2100-W(C)	365004702	2100 mm	2100 × 17 mm	White	269 W	1.5 m
