Line scan lenses

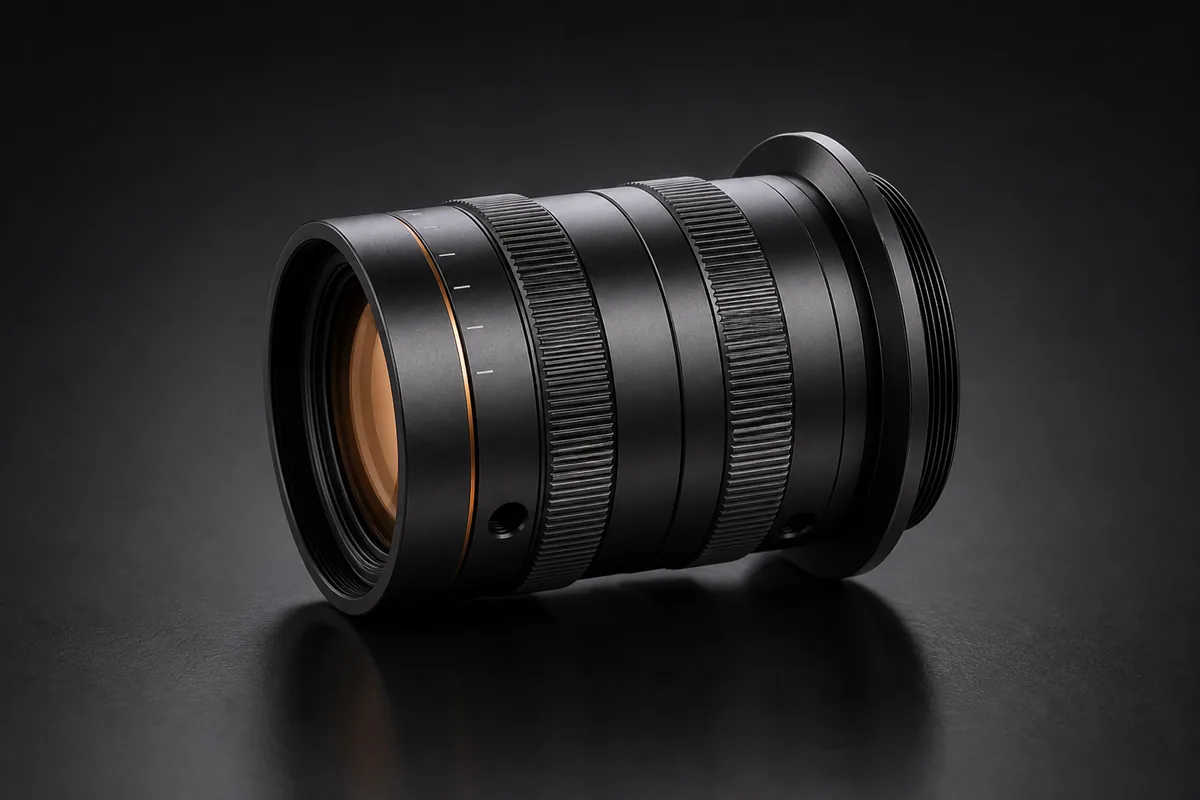

A line scan camera captures a line rather than a frame, and the image is assembled as the web moves — this is how roll materials, glass, film and print are inspected. Its lens has to cover a long sensor line rather than the round field of an area sensor: the range covers M58, M72 and M90 mounts for sensors up to 16k, focal lengths from 25 to 150 mm.

Price on requestAn engineer will confirm pricing and lead time in the first reply.

Find the right model

Specifications

Operating temperature	–10 °C to 50 °C (14 °F to 122 °F); –10 °C to 50 °C (14 °F to 122°F)
Iris control	Manual
Focus control	Manual
Flange focal length	11.48 mm; 12 mm

Part numbers and versions

M58 × 0.75 mount

Part number	PN	Focal length	Working distance range	Aperture	Format	Image circle
MVL-LF2540M-M58-65MP	310102876	25 mm	100 mm to infinity (tolerance: ±5 mm)	F4.0 to F22	Ø46 mm	Ø46 mm
MVL-LF3540M-M58-65MP	310102877	35 mm	150 mm to infinity (tolerance: ±5 mm)	F4.0 to F22	Ø42 mm	Ø42 mm
MVL-LF5036M-M58-65MP	310102878	50 mm	80 mm to 2500 mm (tolerance: ±5 mm)	F3.6 to F22	Ø46 mm	Ø46 mm
MVL-LF8036M-M58-65MP	310102879	80 mm	235 mm to 2000 mm (tolerance: ±5 mm)	F3.6 to F22	Ø 46 mm	Ø 46 mm

M72 × 0.75 mount

Part number	PN	Focal length	Working distance range	Aperture	Format	Image circle
MVL-LF10038M-075V-M72	365004499	100 mm	232 mm ± 5 mm 221 mm ± 5 mm 211 mm ± 5 mm	F3.8 to F16	Φ66 mm	Φ66 mm
MVL-LF11438M-026V-M72	365004495	114mm	—	F3.8	Φ66 mm	—
MVL-LF11638M-033V-M72	365004496	116mm	—	F3.8	Φ66 mm	—
MVL-LF11638M-042V-M72	365004497	116mm	—	F3.8	Φ66 mm	—
MVL-LF11638M-05V-M72	365002476	116mm	—	F3.8	Φ66 mm	—
MVL-LF11638M-067V-M72	365004498	116 mm	243 mm ± 5 mm 237 mm ± 5 mm 230 mm ± 5 mm	F3.8 to F16	Φ66 mm	Φ66 mm
MVL-LF11638M-07V-M72	365004231	116mm	—	F3.8	Φ66 mm	—
MVL-LF11638M-1V-M72	365005433	116 mm	189 mm ± 5 mm 184 mm ± 5 mm 176 mm ± 5 mm	F3.8 to F16	Ø82 mm	Ø82 mm
MVL-LF12040M-2V-M72	365003757	120 mm	168 mm ± 5 mm 166 mm ± 5 mm 163 mm ± 5 mm	F4 to F16	Φ82 mm	Φ82 mm

M90 mount

Part number	PN	Focal length	Working distance range	Aperture	Format	Image circle
MVL-LF11638M-025V-M90	365004618	116 mm	767 mm ± 5 mm 686 mm ± 5 mm 588 mm ± 5 mm	F3.8 to F16	Φ82 mm	Φ82 mm
MVL-LF11638M-0625V-M90	365009287	116 mm	260.5 mm ± 5 mm 249.7 mm ± 5 mm 239.9 mm ± 5 mm	F3.8 to F16	Φ82 mm	Φ82 mm
MVL-LF11638M-078V-M90	365009289	116 mm	221 mm ± 5 mm 214.5 mm ± 5 mm 201.4 mm ± 5 mm	F3.8 to F16	Φ82 mm	Φ82 mm
MVL-LF11638M-0875V-M90	365009290	116 mm	211.2 mm ± 5 mm 199 mm ± 5 mm 192.6 mm ± 5 mm	F3.8 to F16	Φ82 mm	Φ82 mm
MVL-LF11638M-133V-M90	365009291	116 mm	160 mm ± 5 mm 156 mm ± 5 mm 148 mm ± 5 mm	F3.8 to F16	Φ84 mm	Φ84 mm
MVL-LF11638M-1V-M90	365006606	116 mm	189 mm ± 5 mm 184 mm ± 5 mm 176 mm ± 5 mm	F3.8 to F16	Φ82 mm	Φ82 mm
MVL-LF12040M-033V-M90	365004617	120 mm	558 mm ± 5 mm 535 mm ± 5 mm 480 mm ± 5 mm	F4.0 to F16	Φ82 mm	Φ82 mm
MVL-LF12040M-05V-M90	365004616	120 mm	412 mm ± 5 mm 391 mm ± 5 mm 354 mm ± 5 mm	F4.0 to F16	Φ82 mm	Φ82 mm
MVL-LF14745M-0667V-M90	365009288	147.6 mm	342 mm ± 5 mm 321 mm ± 5 mm 305 mm ± 5 mm	F4.5 to F16	Φ82 mm	Φ82 mm
MVL-LF15048M-015V-M90	365009285	150 mm	1243.6 mm ± 5 mm 1098.2 mm ± 5 mm 1037.4 mm ± 5 mm	F4.8 to F16	Φ82 mm	Φ82 mm

How to choose

Selection starts from the sensor length and web width: magnification = sensor length / web width. A 16k sensor with 3.5 μm pixels is 57 mm long; to cover a 570 mm web you need 0.1× magnification. The mount follows the camera: M58, M72 or M90 — adapters exist but they change the flange distance.
