3D stereo camera · DB1000 series

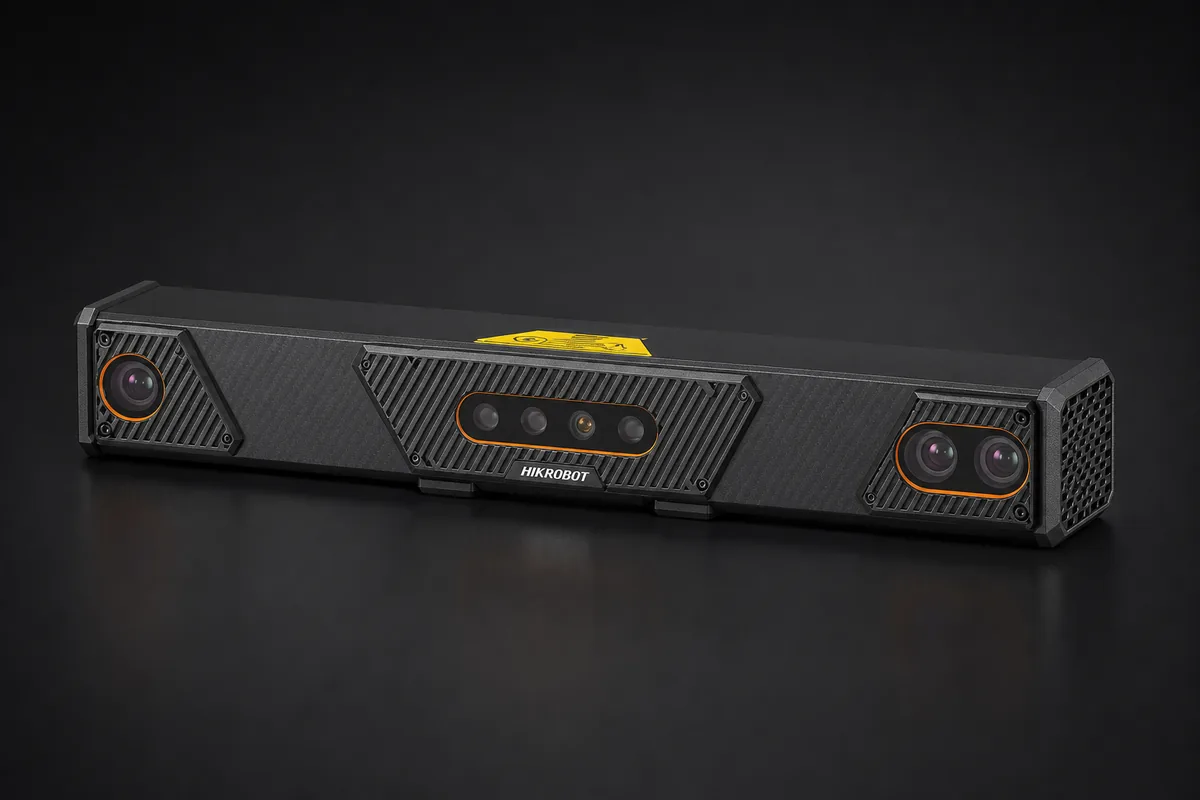

Hikrobot MV-DB1300A V2.0
Gigabit Ethernet (1000 Mbit/s)IP65
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Product type | Multiple DOE Speckle Structured Light Stereo Camera |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O; opto-isolated input x3 (Line 0/3/6), opto-isolated output x3 (Line 1/4/7) |
| Wavelength | 850 nm |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Power supply | 24 VDC |
| Power consumption | 10 W @ 24 VDC |
| Ingress protection | IP65 |
| Operating temperature | 0 to 45 °C |
| Storage temperature | -30 to 80 °C |
| Humidity | 20 to 85 % RH |
| Dimensions | 507 × 79.8 × 99.9 mm |
| Weight | 1.59 kg |
| Near field of view | 870 × 860 mm @ 1100 mm |
| Typical field of view | 2000 × 1600 mm @ 2100 mm |
| Far field of view | 3340 × 2500 mm @ 3200 mm |
| Clearance distance | 1100 mm |
| Measurement range | 2100 mm |
| Repeatability (z axis) | 1.5 mm @ 2100 mm |
| Resolution rgb | 3072 × 2048 px |
| Resolution depth | 1536 × 1024 px |
| Laser safety class | Class 3R |
