3D laser profile sensor · DL2000 series

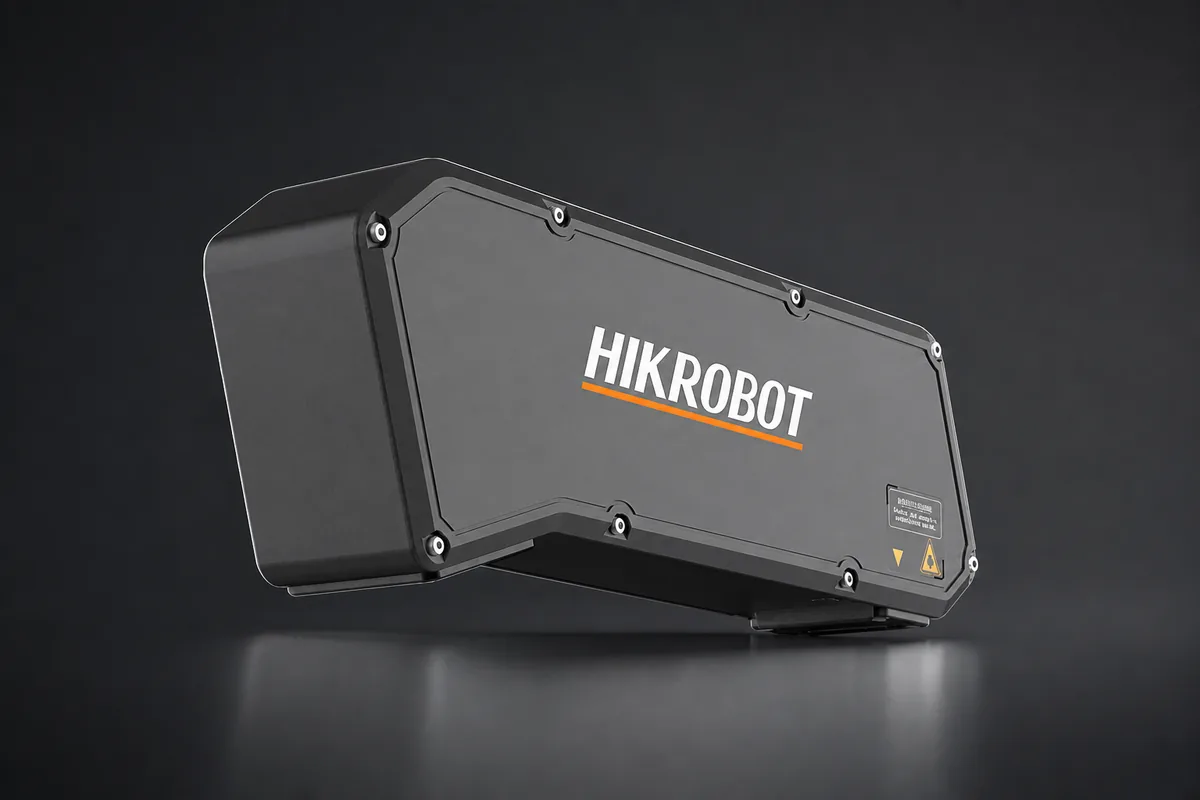

Hikrobot MV-DL2125-04H-R
Gigabit Ethernet 1000 Mbit/s
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Scan frame rate | 600 fps @ 1 m3 measurement range |
| Data interface | Gigabit Ethernet 1000 Mbit/s |
| Digital I/O | 12-pin M12; opto-isolated input ×3, opto-isolated output ×3, RS-232×1 |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | 10 W @12 VDC |
| Operating temperature | 0 to 45 °C |
| Storage temperature | -30 to 80 °C |
| Humidity | 20% RH to 85% RH, no condensation |
| Dimensions | 354.1 × 65 × 123.4 mm |
| Weight | 1.6 kg |
| Model | MV-DL2125-04H-R |
| Near field of view | 1000 mm |
| Far field of view | 2600 mm |
| Clearance distance | 700 mm |
| Measurement range | 1000 mm |
| Detection speed | 3 m/s |
| Detection accuracy | ± 5 mm |
| Laser safety class | Class 3B |
| Trigger mode | External trigger, encoder trigger (max 15 kHz supported) |
