3D laser profile sensor · DP2000 series

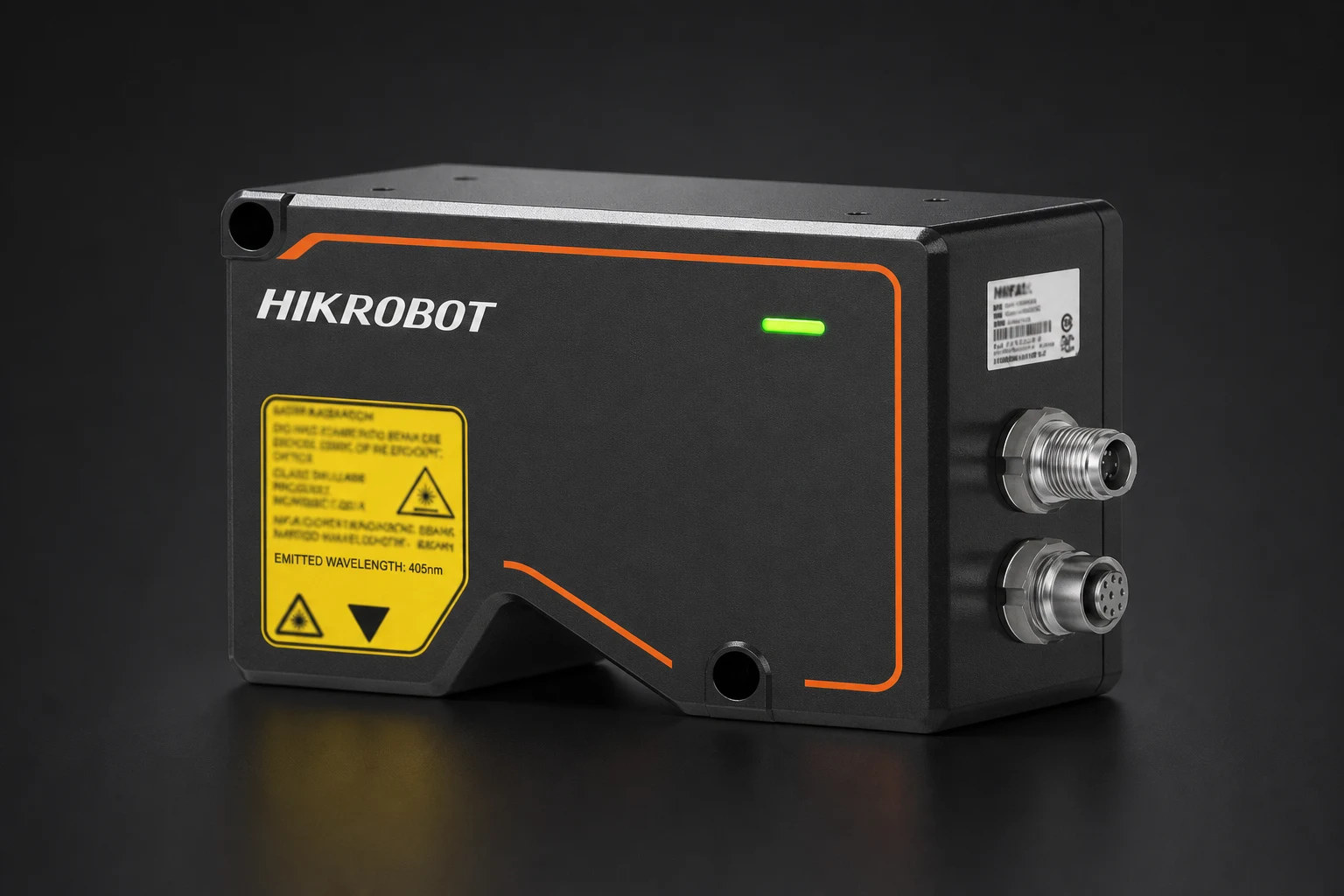

Hikrobot MV-DP2240-03P V2.0
Gigabit Ethernet (1000 Mbit/s)IP67
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Product type | 3D Laser Profile Sensor |
| Scan frame rate | 23.9 kHz |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface; differential input x 3, differential output x 1, RS-232 × 1 |
| Wavelength | 650 nm |
| Resolution z-axis | 6.47 to 26.11 µm |
| Repeatability z-axis | 1.73 µm |
| Linearity z-axis | 0.01 % of MR |
| Measurement range z-axis | 200 mm |
| Reference distance | 245 mm |
| Power supply | 24 VDC |
| Power consumption | 13.8 W |
| Ingress protection | IP67 |
| Operating temperature | 0 to 45 °C |
| Storage temperature | -30 to 80 °C |
| Humidity | 20% RH to 85% RH no condensation |
| Dimensions | 185.5 × 125.5 × 59 mm |
| Weight | 1450 g |
| Applications | Consumer electronics, electronics manufacturing, automobile, etc. |
| Accuracy | submicron level |
| Data points per profile | 2048 |
| Measurement range x-axis near fov | 100 mm |
| Measurement range x reference | 150 mm |
| Measurement range x-axis far fov | 200 mm |
| Profile data interval | 48.4 to 104.2 µm |
| Scan frame rate roi mode | 10 kHz |
| Data output | Profile data, depth image, brightness image |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | Class 3R |
| Z axis measurement range | 200 mm |
| X axis measurement range | 101 mm @ near field of view; 150 mm @ reference distance; 200 mm @ far field of view |
| Z axis linearity | 0.01 % of MR |
| Data output type | Profile data, depth image, brightness image |
| Laser wavelength | 650 nm |
