Industrial code reader · ID2000 series

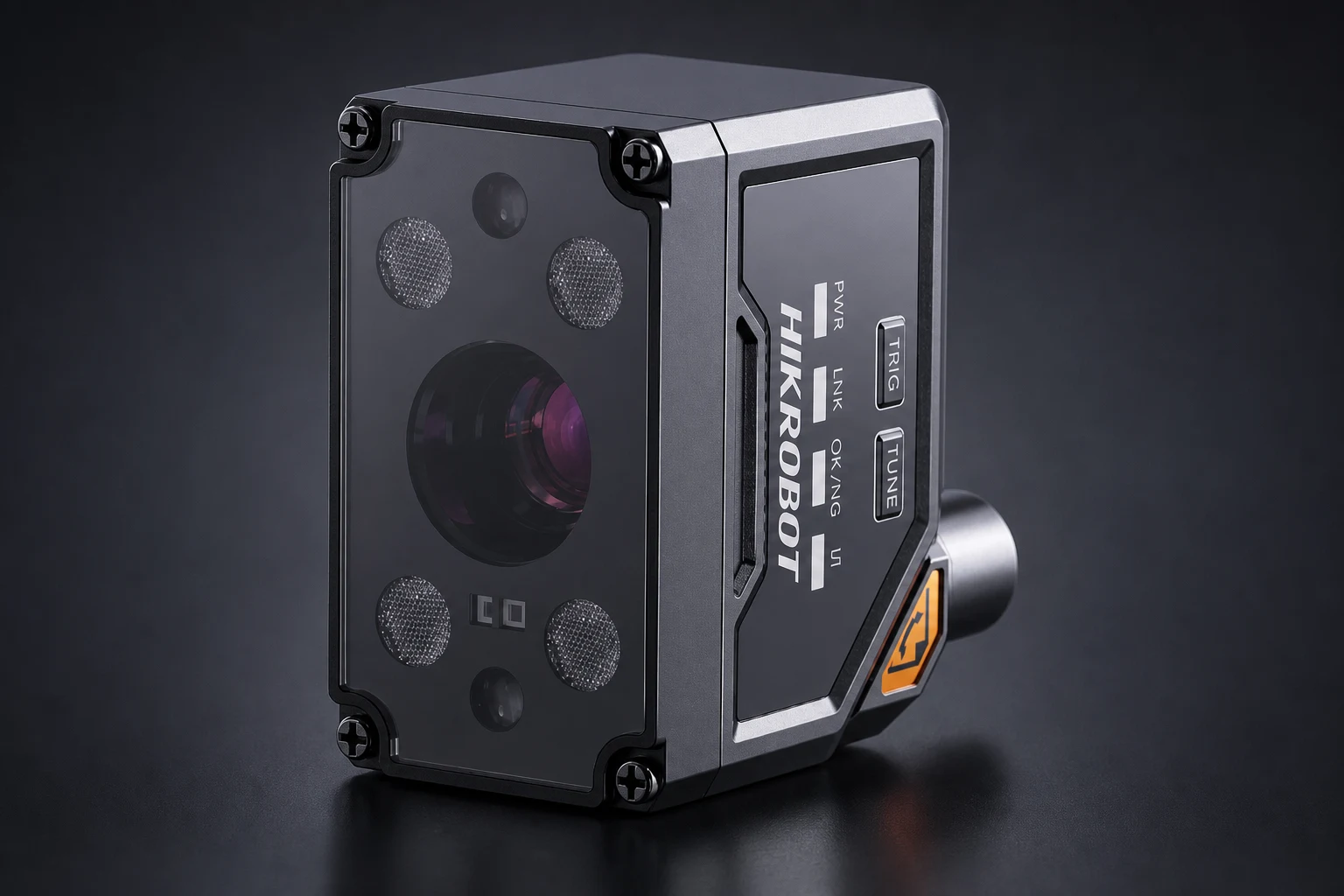

Hikrobot MV-ID2023XM-08M-RBN
1920 × 1280 px60 fps5, 8, 12, 16 mmIP65
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, global shutter |
| Sensor format | 1/3.52″ |
| Resolution | 1920 × 1280 px |
| Pixel size | 2.2 µm × 2.2 µm |
| Maximum frame rate | 60 fps |
| Mono color | Mono |
| Exposure time | 36 μs to 100 ms |
| Gain | 0 dB to 48 dB |
| Digital I/O | 17-pin M12 connector; isolated input × 2; isolated output × 2; RS-232 × 1 |
| Lens mount | M12-mount |
| Focal length | 5, 8, 12, 16 mm |
| 1D symbologies | Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode (one/two-track) |
| 2D symbologies | QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin |
| Stacked symbologies | PDF417, MicroPDF417 |
| Light source | Red light by default; white/blue/IR/UV/two-color (red/blue) optional |
| Power supply | 24 VDC |
| Power consumption avg | 5 W |
| Power consumption max | 12 W |
| Ingress protection | IP65 |
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | -30 °C to 70 °C |
| Humidity | 20% RH to 95% RH, no condensation |
| Weight | 118 g |
| Communication protocol network | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, Modbus, Fins, UDP |
| Communication protocol usb | SmartSDK, USB (CDC, HID) |
| Data interface network | Fast Ethernet (100 Mbit/s) |
| Data interface usb | USB 2.0 (with DC power supply) |
| Dimensions (right-angle body) | 51.5 mm × 31.5 mm × 61 mm |
| Dimensions (straight body) | 72.7 mm × 31.5 mm × 41 mm |
| Lens cap | Half-polarized lens cap by default; transparent and fully-polarized caps optional |
| Max reading speed | 80 codes/sec |
| Shock resistance | 30 g / 11 ms, 500 shocks per axis |
| Vibration resistance | 10 Hz to 55 Hz, 1.5 mm peak-to-peak, 2 hours per axis |
