TRACK & TRACE · DATAMATRIX · SERIALIZATION
DataMatrix won't read? We'll find the cause in 1–2 days.
When a code won't read, there is always a specific culprit: the print, the light, the angle — or the reader itself. And each one is fixed differently — swapping the scanner is useless when the print is too pale. Send a photo of the code — we'll identify the cause and send back a fix plan. And if you're rolling out serialization from scratch against a deadline, we can cover the implementation end to end: from the reader on the line to the data feed into your ERP and whatever traceability platform applies to you, with a plan built around your launch date.
root-cause diagnosiscorrective-action planequipment recommendationquote
130+ deployed projectsofficial Hikrobot partnerthe code’s full path, down to your ERP
Production lines where we solved the read problem
Each case shows the line speed and surface, the root cause, what ended up installed, and the result. Comparing several vendors? These cards are a ready-made question list for each of them.
Food production
PharmaSerialization, inspection and warehouse in one loop
from $15,500
View case study
ElectronicsDataMatrix on boards + solder inspection
from $1,600
View case study
BeveragesCode, label and fill level at one point
from $6,800
View case study
LogisticsReading codes on the parcel flow before sorting
from $8,800
View case study
Pharma
Serialized codes on small cartons with a feed into records
from $3,400
View case study
Food production

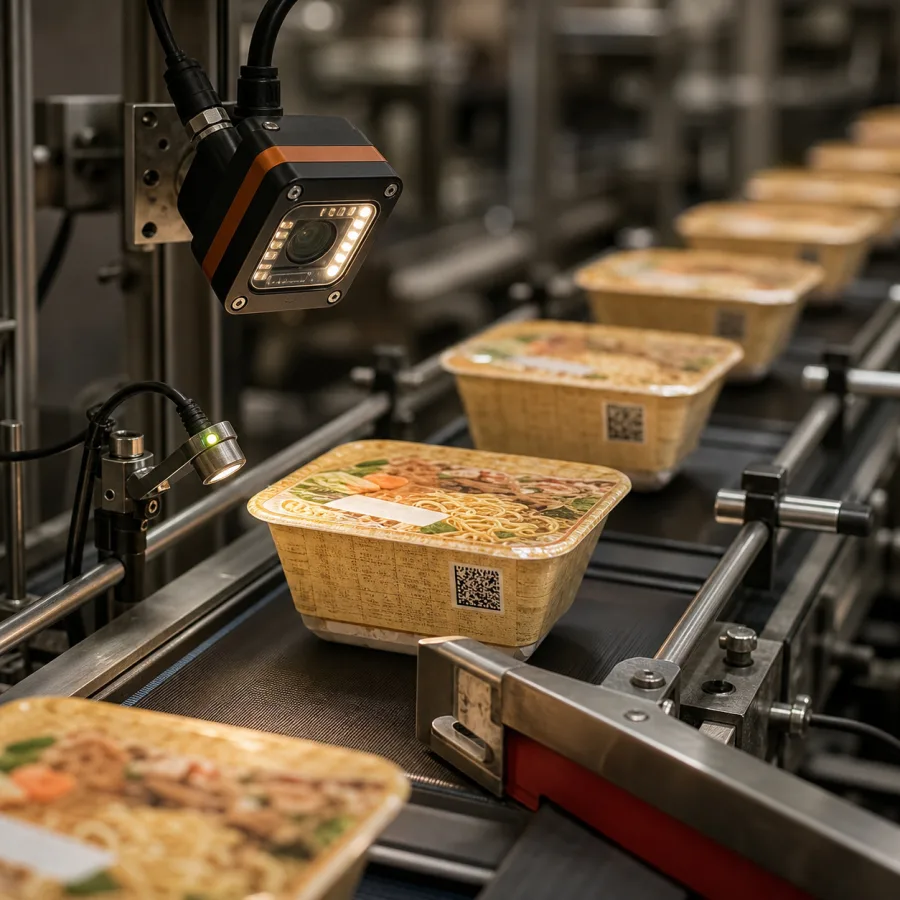

Instant noodles
What wasn’t working.
Serialization arrived on a line that was never built for it: the glossy film glares, the packing speed is high, and every unread code means either a line stop or a pack that can't be shipped. Manual rechecking couldn't keep pace with production.
What we installed.
Readers with a trigger sensor that says "shoot now" — the frame is taken at the exact moment the pack passes, and speed stops being a problem. If a code still doesn't read, the pack is automatically diverted off the line. Production doesn't stop.
What changed.
Codes are read reliably at production speed, and unread packs are diverted before shipping — serialization stopped being a topic at morning meetings.
| Task | reading serialized codes at speed, glaring film |
|---|---|
| Speed | production speed of the packing line |
| Reaction | automatic rejection of unread packs |
| Setup | readers, trigger sensor, controller, reject signal |
| Budget | from $5,500 |
Check my code the same way
Pharma

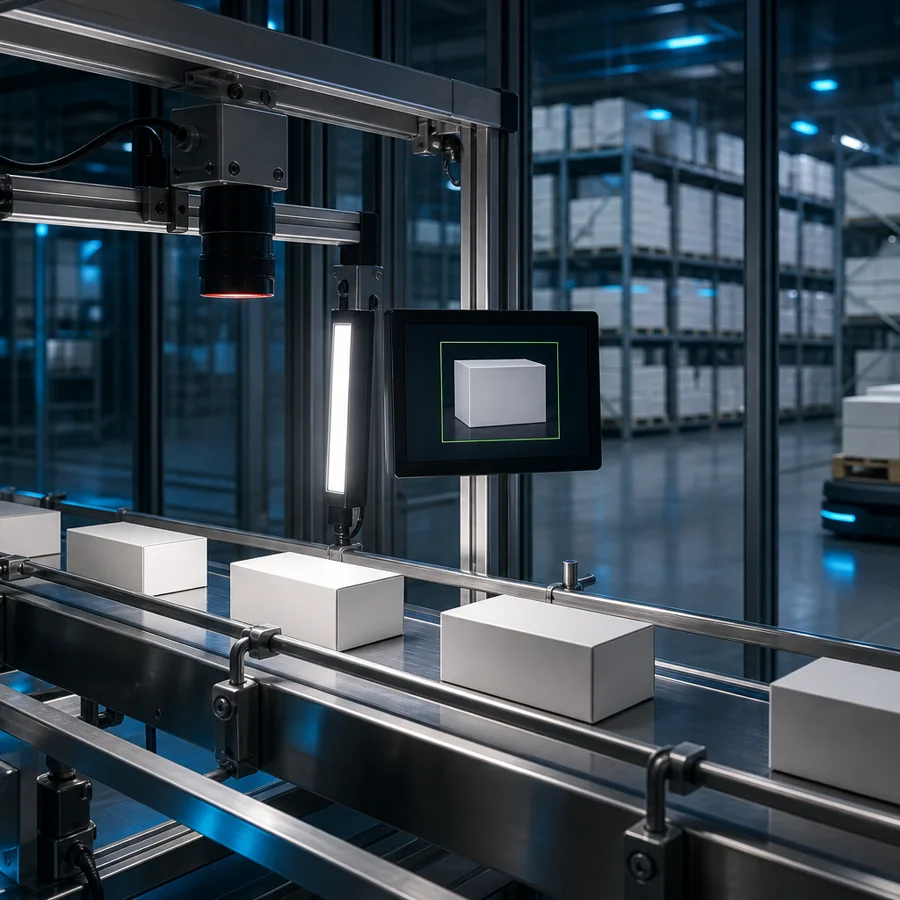

Pharma: line + warehouse
What wasn’t working.
Serialization, aggregation, visual inspection and the warehouse lived in separate systems. At every handoff the data had to be reconciled by hand, and during investigations batches "got lost" between areas.
What we installed.
One end-to-end loop: readers and cameras on the line, data feeds into the ERP and warehouse system, robots on the transfers. The code is printed, read, aggregated and traced down to the warehouse cell — with no manual bridges between systems.
What changed.
The batch is traceable straight through production and warehouse. One contractor owns the code’s complete path — nothing left for vendors to argue about.
| Task | serialization + aggregation + warehouse in one loop |
|---|---|
| Integration | ERP, warehouse system, national track & trace portal |
| Setup | readers, cameras, controllers, integration, mobile robots |
| Budget | from $15,500 |
Check my code the same way
Electronics
Electronics production
What wasn’t working.
The boards carry a DataMatrix marked directly onto the surface, no label. A code like that is tiny and low-contrast, and it has to be checked together with solder quality — without building two separate stations for it.
What we installed.
A reader built for direct-part-marked (DPM) codes, and a high-resolution camera for the solder — in one station. Code errors and solder rejects are counted separately.
What changed.
Code readability and solder quality are visible separately — you know at once what to tune: the marking laser or the oven.
| Task | direct-marked DataMatrix + solder inspection |
|---|---|
| Setup | DPM reader, 12 MP camera, lighting |
| Budget | from $1,600 |
Check my code the same way
Beverages

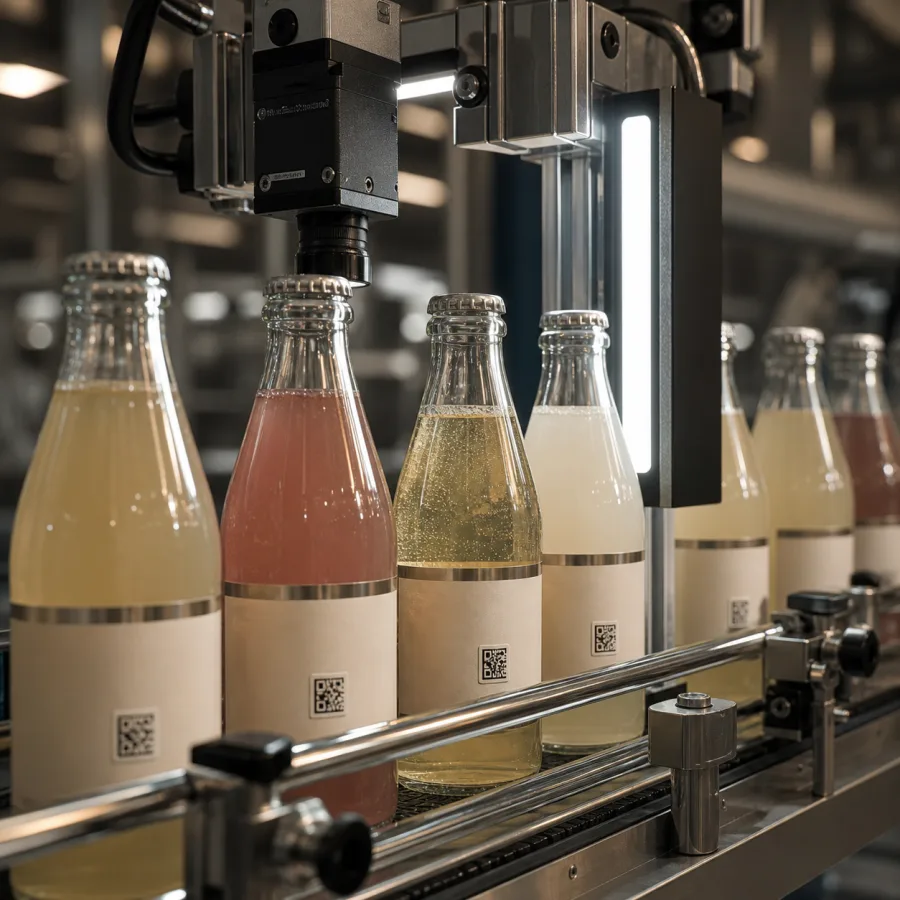

Lemonade bottling plant
What wasn’t working.
Three checks converged at one bottling point: does the serialized code read, is the label straight, is the bottle filled. All of it — on glaring glass at high speed.
What we installed.
One inspection station: a camera with a polarizing filter that kills the glass glare, plus a code reader. All three checks in a single pass of the bottle.
What changed.
Over 99% of underfills are caught before packing; the code and the label are checked along the way. One station — instead of three separate budgets.
| Task | serialized code + label + fill level at one point |
|---|---|
| Environment | glass, glare, wet zone |
| Setup | monochrome camera, polarizing filter, reader, line link |
| Budget | from $6,800 |
Check my code the same way
Logistics

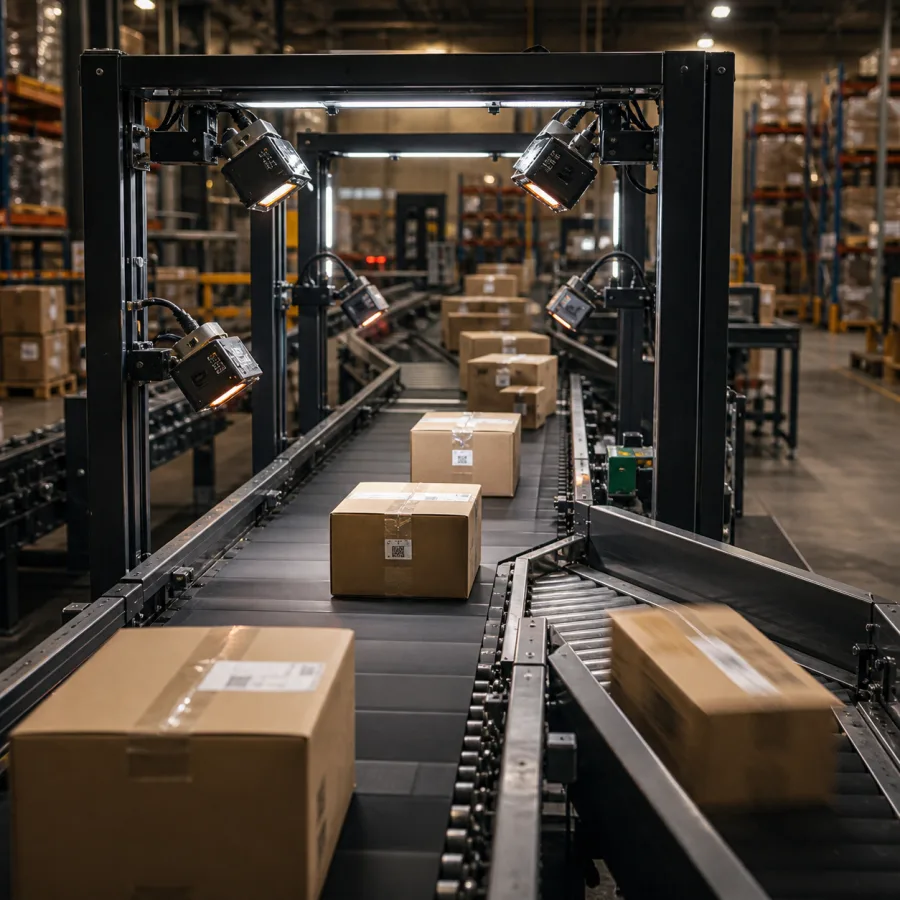

E-commerce distribution center
What wasn’t working.
A parcel flow heading into the sorter: if a code doesn't read, the parcel goes the wrong way. That means a return, rehandling, and missed service levels the warehouse pays for.
What we installed.
A fixed code-reading station upstream of the sorter: readers in a protective cabinet, each read result feeding straight into the sorter controls.
What changed.
Routing errors dropped noticeably — parcels go where they should, on the first pass.
| Task | reading codes on the flow before sorting |
|---|---|
| Setup | readers, control cabinet, sorter signal |
| Budget | from $8,800 |
Check my code the same way
Pharma
Pharmaceutical packaging
small pharmaceutical cartons with DataMatrix codes
What wasn’t working.
Serialized codes on small cartons: the code is tiny, the cartons run tightly packed, and every read result has to land in the records system. Done by hand, this was turning into a separate job for a separate person.
What we installed.
A code verification station: a reader, a sensor, and automatic delivery of the result into the records system — the human is out of that chain.
What changed.
Less manual entry, fewer operator errors: the code is read and lives in the system immediately.
| Task | serialized codes on small cartons + feed into records |
|---|---|
| Setup | reader, sensor, records-system integration |
| Budget | from $3,400 |
Check my code the same way
TEST YOURSELF

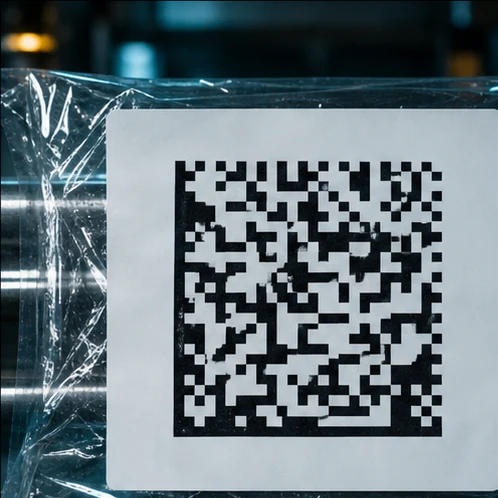

One of these codes will defeat a production scanner. Which one?
All four look "fine". On the line you find out too late — when the pallet is already built.
All four look "fine". On the line you find out too late — when the pallet is already built.
This was a training set. On a real line there are usually several causes at once, and not every one shows in a single photo — speed problems, for instance, can't be caught from a photo. That's why our diagnosis has two levels: an express review by photo first, then a check at your actual speed.
This was a training set. On a real line there are usually several causes at once, and not every one shows in a single photo — speed problems, for instance, can't be caught from a photo. That's why our diagnosis has two levels: an express review by photo first, then a check at your actual speed.
demo codes; the readability criteria are real
This was a training set. On a real line there are usually several causes at once, and not every one shows in a single photo — speed problems, for instance, can't be caught from a photo. That's why our diagnosis has two levels: an express review by photo first, then a check at your actual speed.
demo codes; the readability criteria are real
WHAT YOU GET IN HAND
Send the code — get a diagnosis and a plan
Yes, we make our money on equipment. That's exactly why the report has a separate line with the verdict "do you need new hardware at all" — and quite often the answer is "no, fix the print". A report like that costs you nothing — and often prevents an unnecessary hardware purchase.
Express by photo
1–2 business days. You send a photo of the code or label — you get the likely cause and a list of things to check on your side.
A check at your speed
after a sample label or package arrives. We run it on the bench and answer: does the code read at your line's speed, and with how much margin.

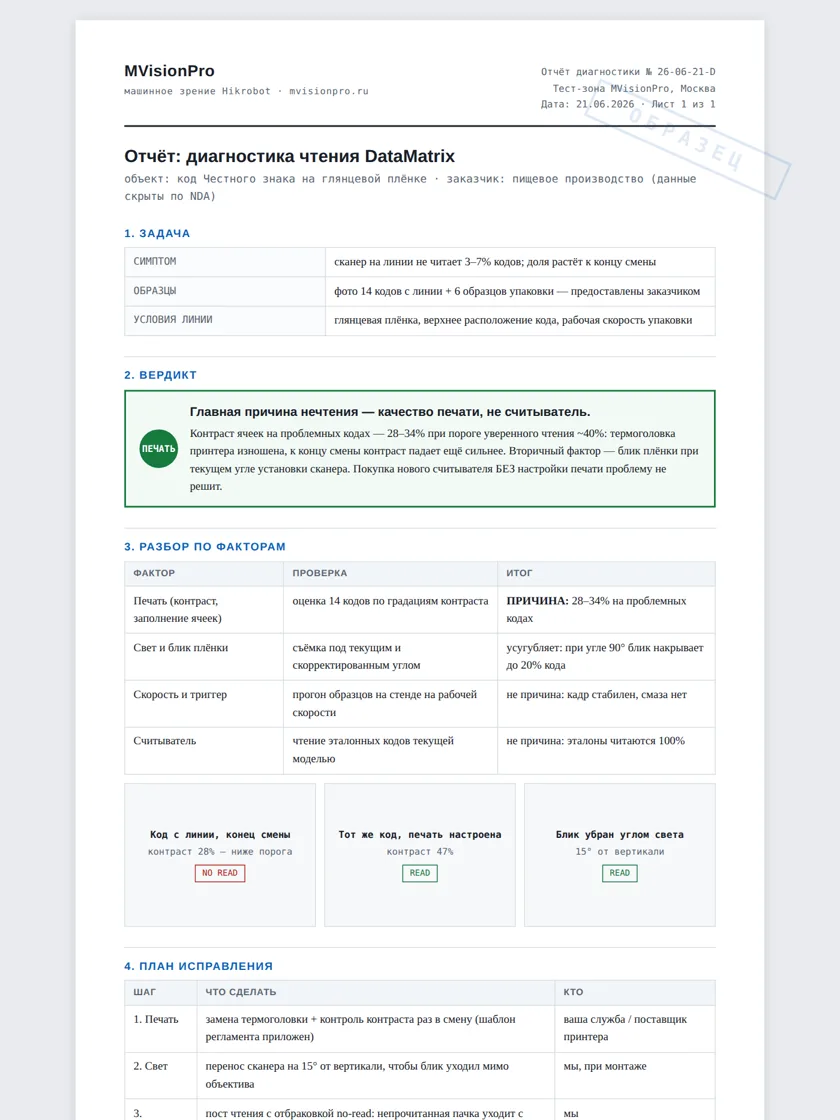

- What the report contains
whether the code reads; what the cause is — print, light, angle or the reader; what to change, step by step; what equipment is needed, if any at all; and roughly what it costs.
- A typical reading-station layout
a drawing of where the reader, the light and the sensor go. Useful to your plant or controls engineer no matter who you end up buying from.
- An "Unread code" work instruction template
what the operator does when a code won't read: a ready-to-post sheet for the wall.
the fastest route — a photo of the code via messenger right now
Why codes don't read
The five usual causes of read failures — and how we tell one from another.
Speed
The code flies through the frame in milliseconds. The cure is a sensor that tells the camera "shoot now", plus the right exposure — the frame is taken at the exact moment the code passes, and the blur disappears.
Glare from film and gloss
Glare can't be removed with scanner settings — only with optics: a polarizing filter and the right light angle. Fiddling with software on top of glare is pointless, and we don't do it.
Print quality
Sometimes the print is at fault, full stop: a low-contrast code fails across readers. We measure the contrast and modulation of the code's cells — and if the root cause is the print process, that's exactly what the report will say.
Dirt and dust
DataMatrix has a safety margin: the algorithms recover a code even with damage — up to a limit. And to stay away from the limit, housings and optics air purge do their job.
Mounting position
Angle, distance, vibration. Roughly half of all "it won't read" complaints actually mean "the reader is in the wrong place" — and that's fixed without buying anything.
First we separate a print problem from a reading problem — those are different budgets and different people to fix them. That's why it's a diagnosis, not "buy our scanner".
Don't want to wait for the diagnosis? Four questions — and a preliminary diagnosis right on screen.
Solution levels — and the hardware behind them

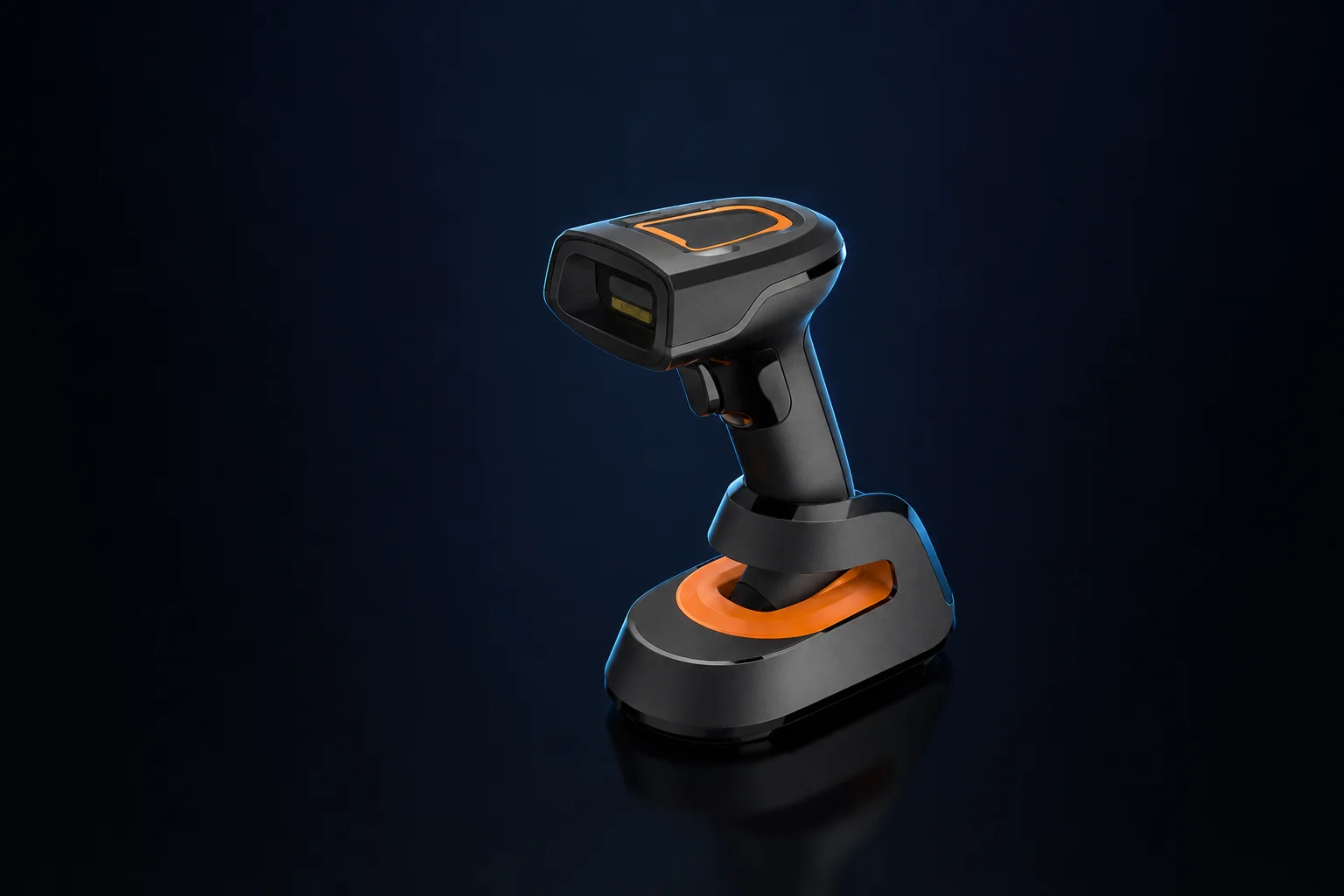

Handheld scanner — MV-IDH2000
~$80–120the start of any marking setup, spot checks at a station. Connects like an ordinary keyboard: point — the code is in your system.
- CODES
- DataMatrix · QR · 1D
- the whole serialization zoo
- MIN CODE
- 4 mil (2D)
- reads even small label codes
- BODY
- IP42 · 1.8 m drop
- lives on the shop floor, not in a display case
Fixed-mount reader — MV-ID5050XM
~$900–1,250reading in motion, right on the line.
- SENSOR
- 5 MP · global shutter
- no motion blur at speed
- READING
- up to 120 codes/s
- margin even for several codes per frame
- BODY
- IP67
- washdown and dust are its normal day
Direct part marking and tiny codes — MV-IDH9000
~$700–950reads laser-etched and dot-peen marks on metal and electronic components.
- MIN CODE
- 3 mil
- a code smaller than a match head
- LIGHT
- 4 modes + polarization
- kills the metal glare without killing the code

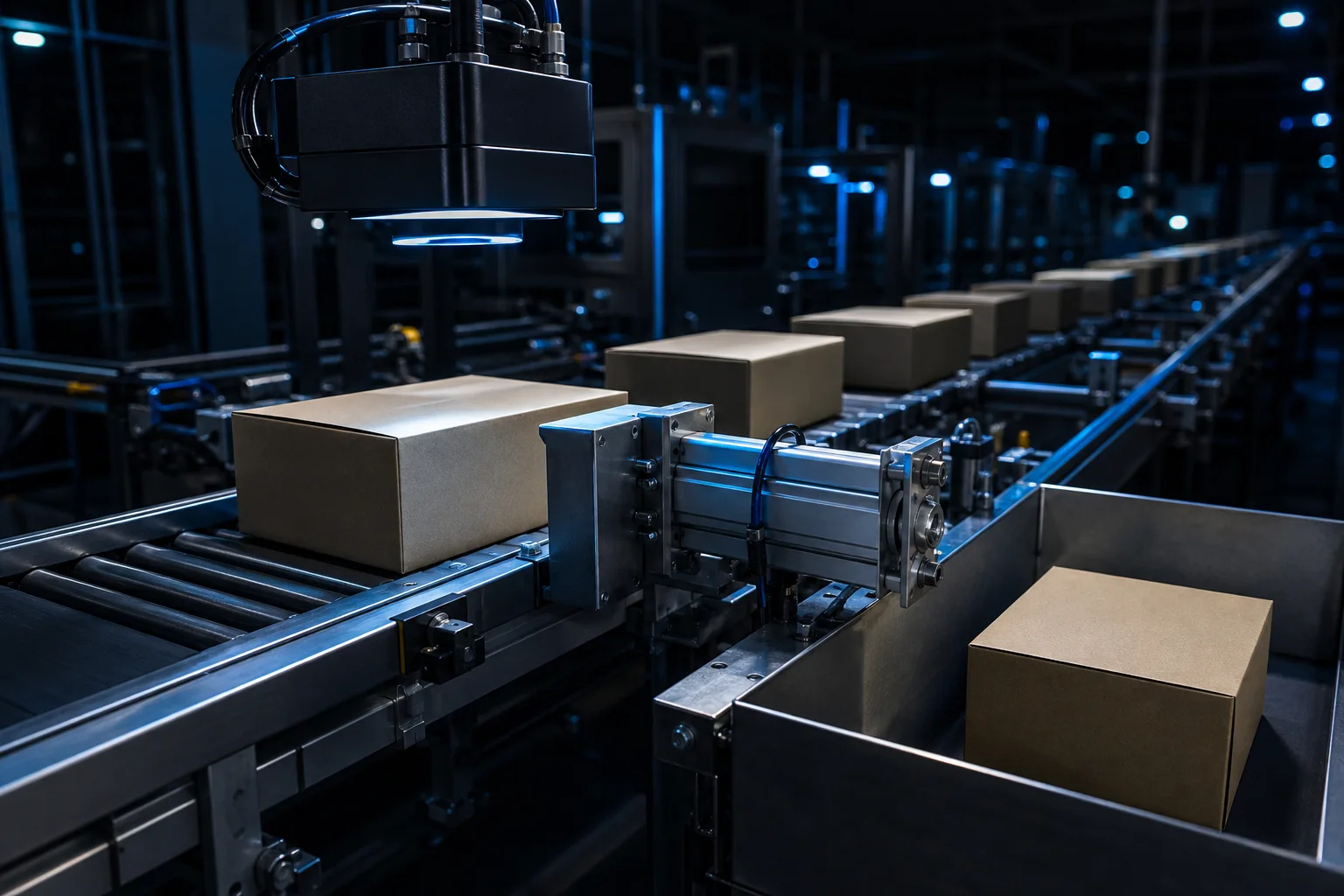

Reading station with rejection
from ~$5,500reader, light, sensor and controller: an unread pack leaves the line on its own. This is the "instant noodles" case level — from ~$5,500.

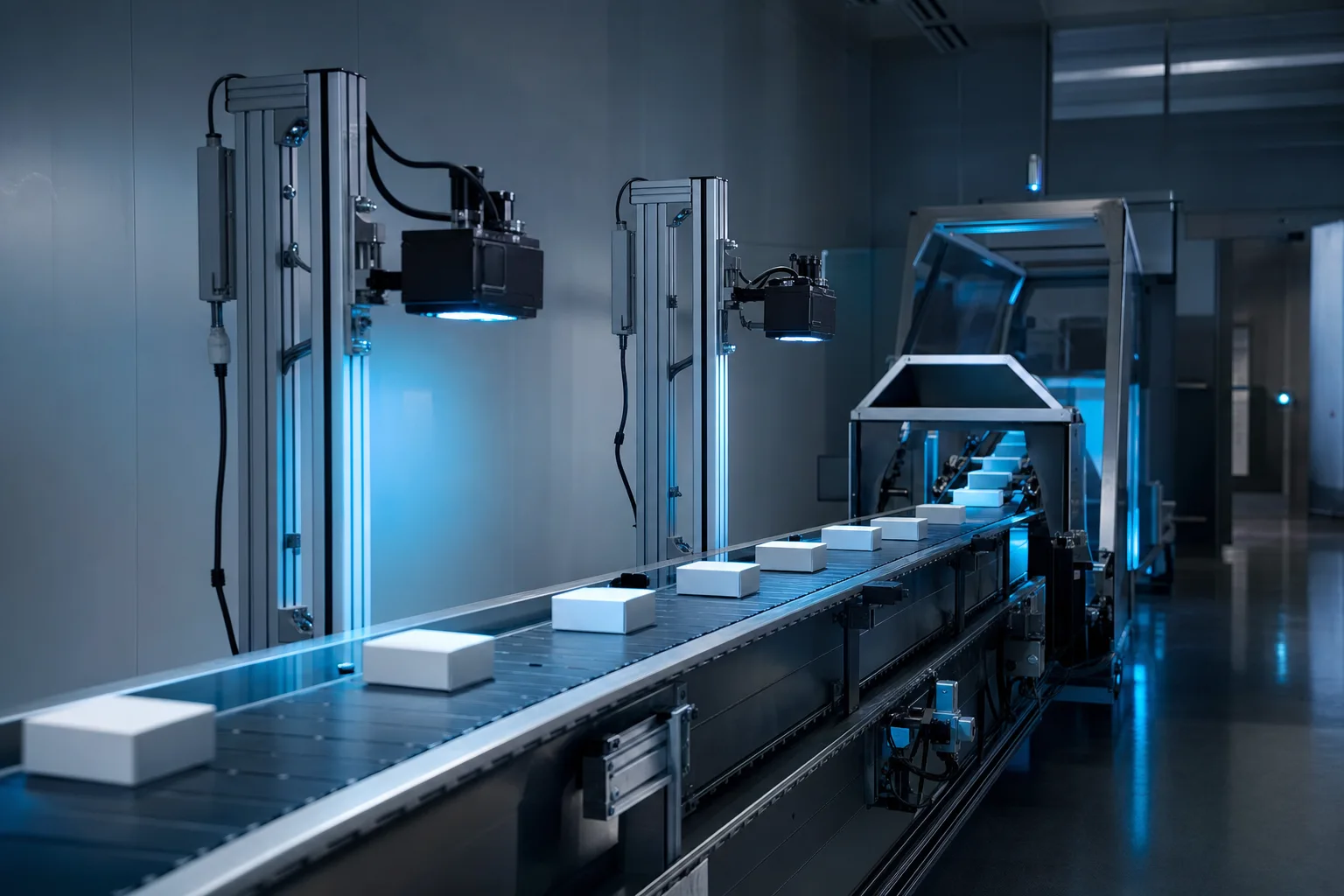

An aggregation loop
from ~$3,400 to $15,500 depending on the setupseveral reading points tied into your ERP and the national track & trace system. The pharma cases level — from ~$3,400 to $15,500 depending on the setup.
The exact price depends on speed and surface — so first the diagnosis, then the quote. A preliminary quote takes 1 day.
Screen 8 · catalog-models
Popular code readers
Click a model to open its card with specs right here, on top of the page.
From a sample to launch — and who answers for what
A sample or a photo.
You send it — we return an express diagnosis in 1–2 business days.
A check at speed.
We run your code on the bench and hand over a report: does it read, and with how much margin.
A pilot on the line.
The equipment runs at your site — at real speed, with real packaging. This is where rejection gets tuned.
Launch.
Installation, commissioning, shift training, the data feed into your ERP and track & trace system.
Areas of responsibility
We own the code-reading and data-integration scope: the reader, light, mounting, the software side, line signals, aggregation and the data feed into your ERP or traceability platform. (Overall regulatory compliance with your serialization mandate stays with your compliance team and platform provider; our responsibility is that the code reads and the data arrives where it should.)
Timelines, spelled out: a typical reading station — 3–6 weeks from sample to launch; an aggregation loop with ERP integration — from 2 months. An exact plan for your deadline — in the engineer's first reply.
Who we are
from supplying a camera to launching a turnkey station.
Factory-direct supply
equipment ships straight from the Hikrobot factory; stock items arrive in about two weeks by air.
the person who diagnosed your code is the person who commissions your station.
Remote support for international commissioning
we diagnose and bench-test remotely, then support your site team or local integrator with commissioning, tuning and training.
TEST ZONE
Customer-sample test bench
We test production samples under a camera, record the run, and send an engineer’s report. Free, in 2–3 business days.
recently on the bench
- June — a code on glossy film: cause found — the printer; plan sent
FAQ
Will we make the deadline?
It depends on three things: what the station is built from, how fast the items arrive, and how ready your records system is. We ask about your deadline in the quiz not out of curiosity — the plan is built to it. You get a realistic estimate in the engineer's very first reply.
What if it's the print, not the equipment?
Then that's what we'll say. That's what the diagnosis is for: adjusting the print is cheaper than buying a reader that still won't read a pale code.
We need aggregation — do you do that?
Yes: reading unit codes, forming the aggregate, feeding it into records. It's part of the loop, not a separate project for separate money.
Do you integrate with our ERP and track & trace system?
Yes — delivering read and aggregation results into your ERP and national track & trace system is a standard part of the job. We've done it in pharma and food production.
Is the equipment made to order or from stock?
Popular readers are factory stock — about two weeks by air is typical for in-stock items. Rare items are made to order, and then the date is fixed in the quote.
Who will call me?
A vision engineer. And if you chose "message me" — we'll message, not call.
Will the line have to stop?
The diagnosis and the bench test don't need your line at all. For the pilot, installation goes into your maintenance window — scheduled around production.
