Wired handheld code reader · IDH2000 series

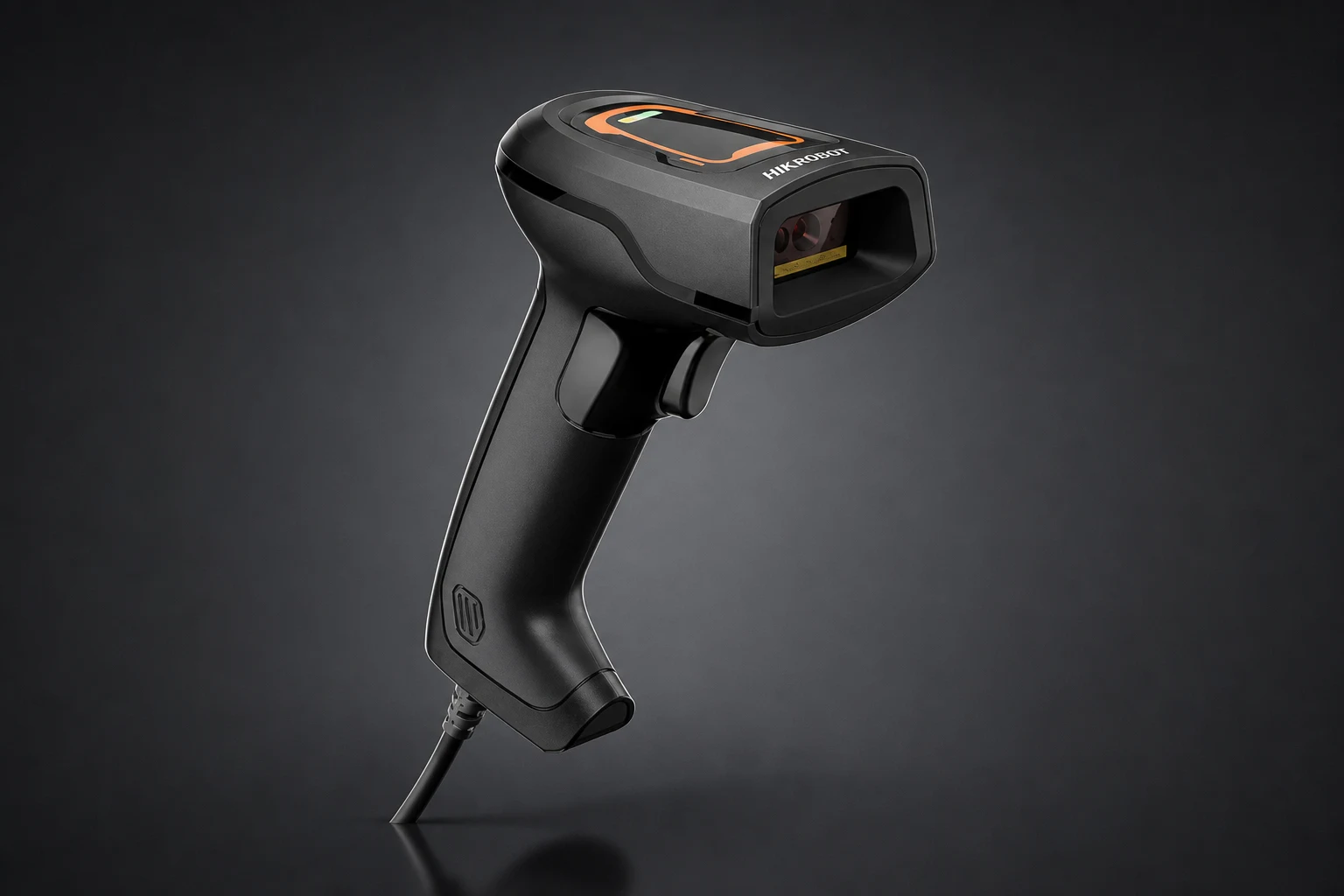

Hikrobot MV-IDH2000/13SR/05WN/U
1280 × 1024 pxUSB 2.04.9 mmIP42
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS |
| Resolution | 1280 × 1024 px |
| Data interface | USB 2.0 |
| Focal length | 4.9 mm |
| Symbol contrast | 20 % |
| Light source | White LED |
| Wavelength | 650 nm |
| Power supply | 5 VDC |
| Maximum power | 1 mW |
| Ingress protection | IP42 |
| Operating temperature | -10 to 50 °C |
| Storage temperature | -20 to 60 °C |
| Humidity | 5 to 95 % RH (no condensation) |
| Dimensions | 66.5 × 94 × 169.5 mm |
| Weight | 160 g |
| Aiming system | Cross laser aiming |
| Ambient illumination | 0 to 100000 lux |
| Communication protocol | SmartSDK, Serial, USB (HID/CDC) |
| Current consumption | 0.9 max / 0.5 typical A |
| Depth of field | Code 128 (3 mil): 30-110; Code 128 (10 mil): 20-205; Data Matrix (5 mil): 40-85; QR Code (10 mil): 20-140; QR Code (20 mil): 20-200 mm |
| Detection angle | tilt ±65°, skew ±65°, rotation 360° |
| Drop height | 1.8 m |
| Field of view | horizontal 39°, vertical 29° |
| Laser safety class | Laser 2 |
| Min. accuracy | 1D 3 / 2D 4 mil |
| Pulse width | 8 ms |
| Symbologies | 1D: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D: QR Code, Data Matrix, MicroQR, Aztec; stacked: PDF417 |
