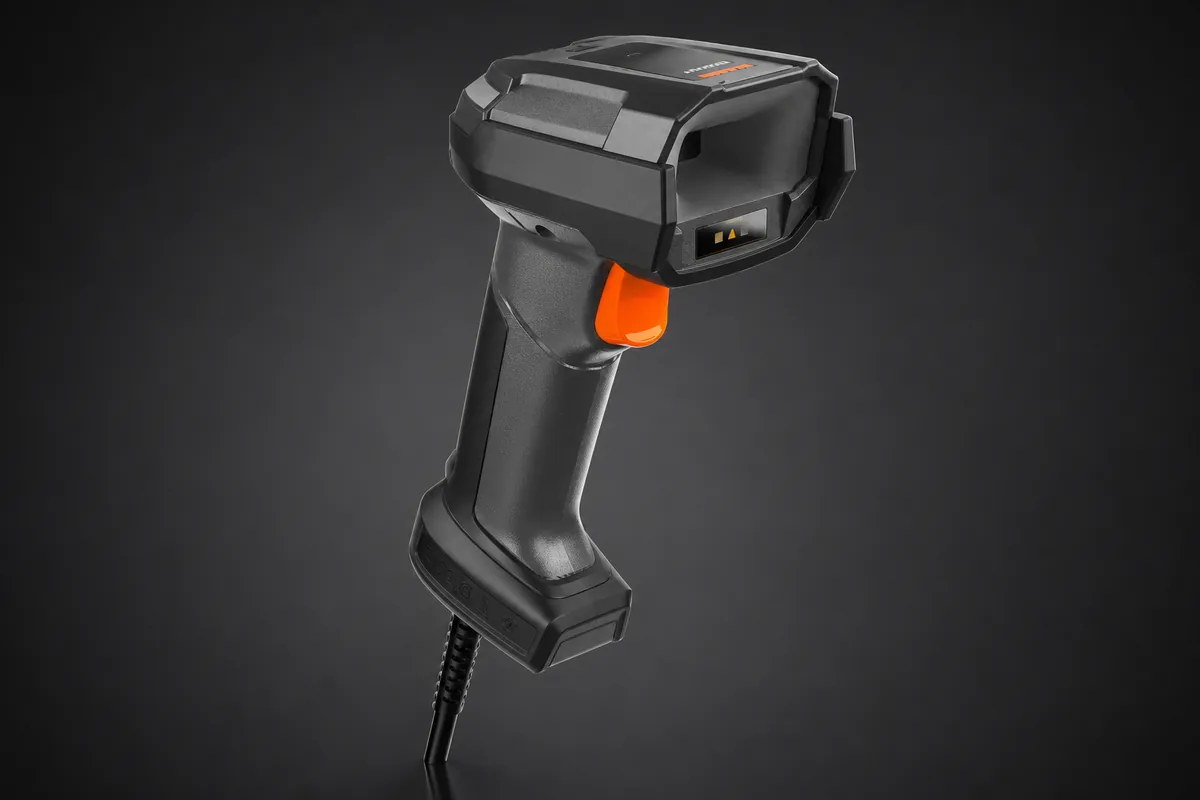

Wired handheld code reader · IDH5000P series
Hikrobot MV-IDH5000P/13SR/04RN/U
1280 × 1024 pxUSB HID/CDC and RS-232IP65
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS global-shutter image sensor |
| Resolution | 1280 × 1024 px |
| Mono color | Mono |
| Data interface | USB HID/CDC and RS-232 |
| 1D symbologies | Code 39, Code 93, Code 128, Codabar, EAN/UPC, Interleaved 2 of 5 and other mainstream 1D codes |
| 2D symbologies | Data Matrix, QR Code, Micro QR, PDF417 and other mainstream 2D codes |
| Light source | Red and blue diffuse illumination; white direct illumination |
| Ingress protection | IP65 |
| Minimum code accuracy | 1D 3 mil; 2D 5 mil |
| Reading distance | Best reading distance 120 mm |
| Field of view | 43 × 35 degrees |
| Power | USB 5 VDC or 12 to 24 VDC |
| Drop resistance | Multiple drops from 2 m |
| Trigger life | 5 million trigger operations |
