Idh series handheld code reader · IDH7000 series

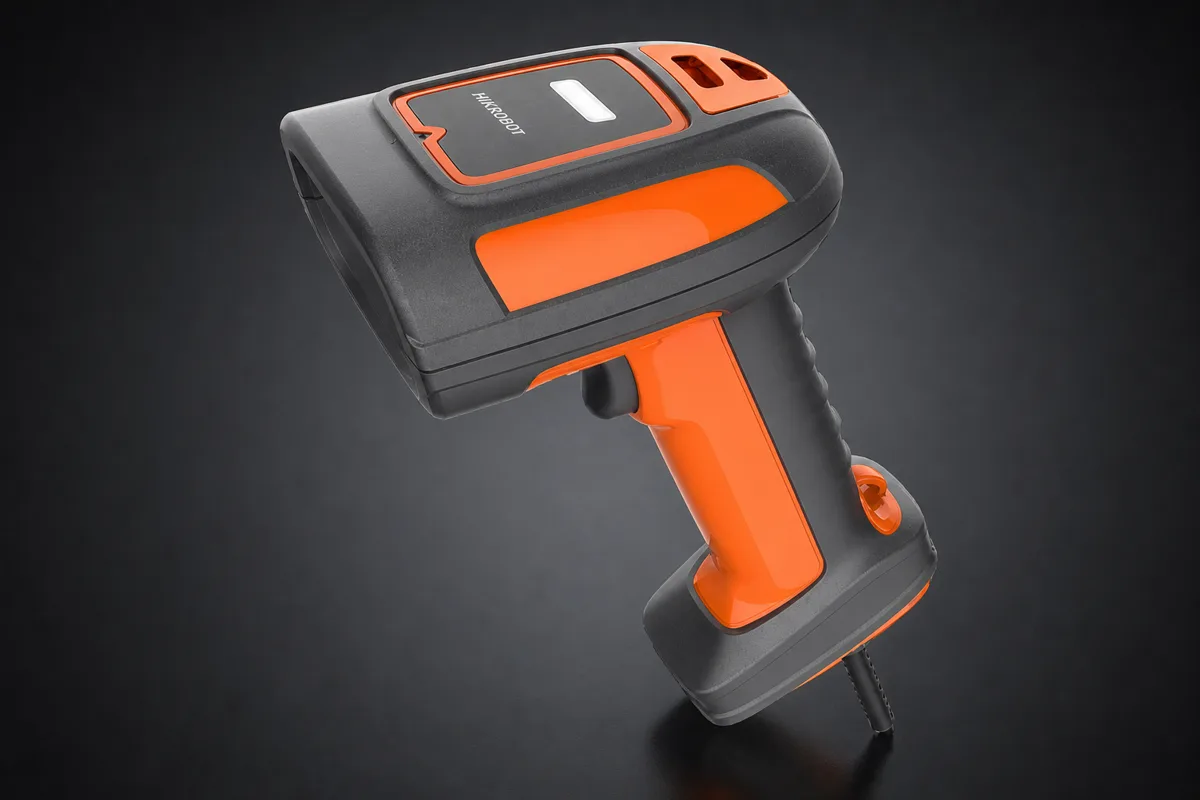

Hikrobot MV-IDH7000B/10SR/07RN
1280 × 800 pxIP65
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Product type | Wireless Handheld Code Reader |
| Sensor type | CMOS |
| Resolution | 1280 × 800 px |
| Light source | Direct lighting: white LED; Diffused reflection lighting: red LED |
| Ingress protection | IP65 |
| Operating temperature | Working -10 °C to 50 °C; Storage -20 °C to 60 °C; Charging 0 °C to 40 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Dimensions | 73.4 mm × 104 mm × 215.2 mm |
| Weight | 410 g |
| Certification | CE, KC |
| Battery | 3150 mAh |
| Drop height | 2 m |
| Endurance | 13 h |
| Min accuracy | 3 mil |
| Symbologies | 1D codes, 2D matrix codes, stacked code |
| Symbologies detail | Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; QR Code, Data Matrix, MicroQR, Aztec, Han Xin; PDF417 |
| Wireless communication | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m |
