Wired handheld code reader · IDH9000 series

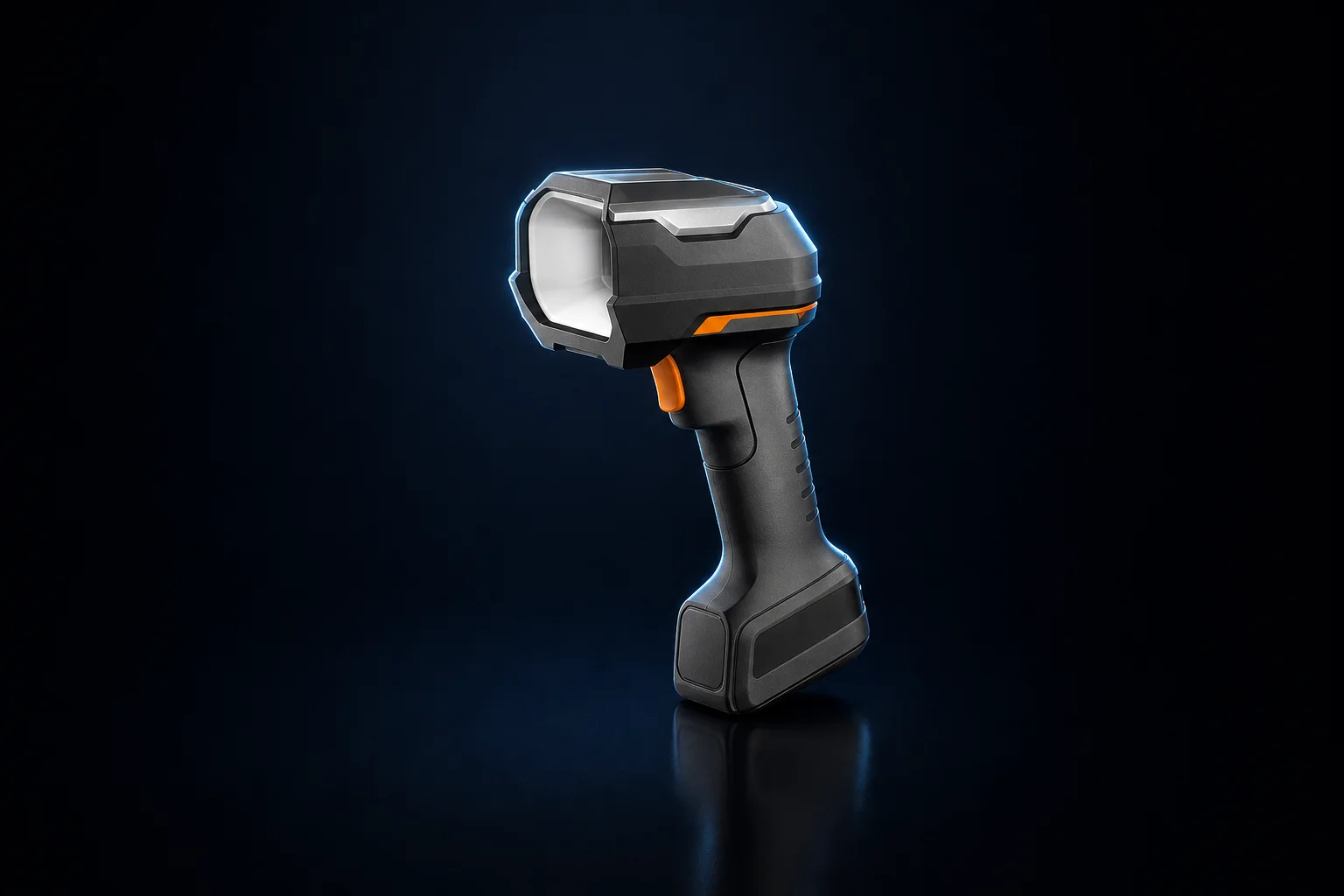

Hikrobot MV-IDH9000/13DP/04RP/U
1280 × 1024USB 2.0, DC terminal4.3 mmIP67
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Rolling | 0.5 m, 20000 times |
| Data interface | USB 2.0, DC terminal |
| Focal length | 4.3 mm |
| 1D symbologies | Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE |
| 2D symbologies | QR Code, Data Matrix, MicroQR, Aztec |
| Stacked symbologies | PDF417 |
| Symbol contrast | 20 % |
| Light source | Diffused reflection lighting (red LED), bi-directional lighting (red LED), direct lighting (white LED), polarized lighting (white LED) |
| Wavelength | 650 nm |
| Power supply | 12 VDC |
| Maximum power | 1 mW |
| Ingress protection | IP67 |
| Operating temperature | -10 to 50 °C |
| Storage temperature | -20 to 60 °C |
| Humidity | 5 to 95 % RH |
| Dimensions | 74 × 109.9 × 227.1 mm |
| Weight | 488 to 490 g (without cable) |
| Aiming system | 650 nm laser (red light) |
| Ambient illumination | 0 to 100000 lux |
| Chemical resistance | ISO 16750 |
| Current consumption | 0.7 max / 0.47 typical A |
| Depth of field | Code128 (3 mil): 0 to 100; Code 128 (10 mil): 0 to 250; Code 128 (20 mil): 0 to 350; Code 39 (5 mil): 0 to 150; Data Matrix (5 mil): 5 to 79; QR Code (20 mil): 0 to 250 mm |
| Detection angle | Tilt angle ±60°, skew angle ±60°, rotation angle 360° |
| Display | 0.96″ OLED |
| Drop height | 2.5 m, 50 times |
| Field of view | Horizontal 43.6°, vertical 35.5° |
| Laser safety class | Laser 2 |
| Min accuracy | 3 mil |
| Pulse width | 6.6 ms |
| Static electricity resistance | ±25 kV air; ±10 kV contact or indirect |
