Ring lights for machine vision cameras

Ring lights

A ring light mounts on the lens and illuminates along the optical axis — the simplest way to light a small part evenly. The beam angle decides what you see: 0° and 15° emphasise relief, 60° and 90° give soft uniform light. Housing diameters from Ø24 to Ø300 mm; shadowless versions (LRSS) are for shiny surfaces.

Price on requestAn engineer will confirm pricing and lead time in the first reply.

Find the right model

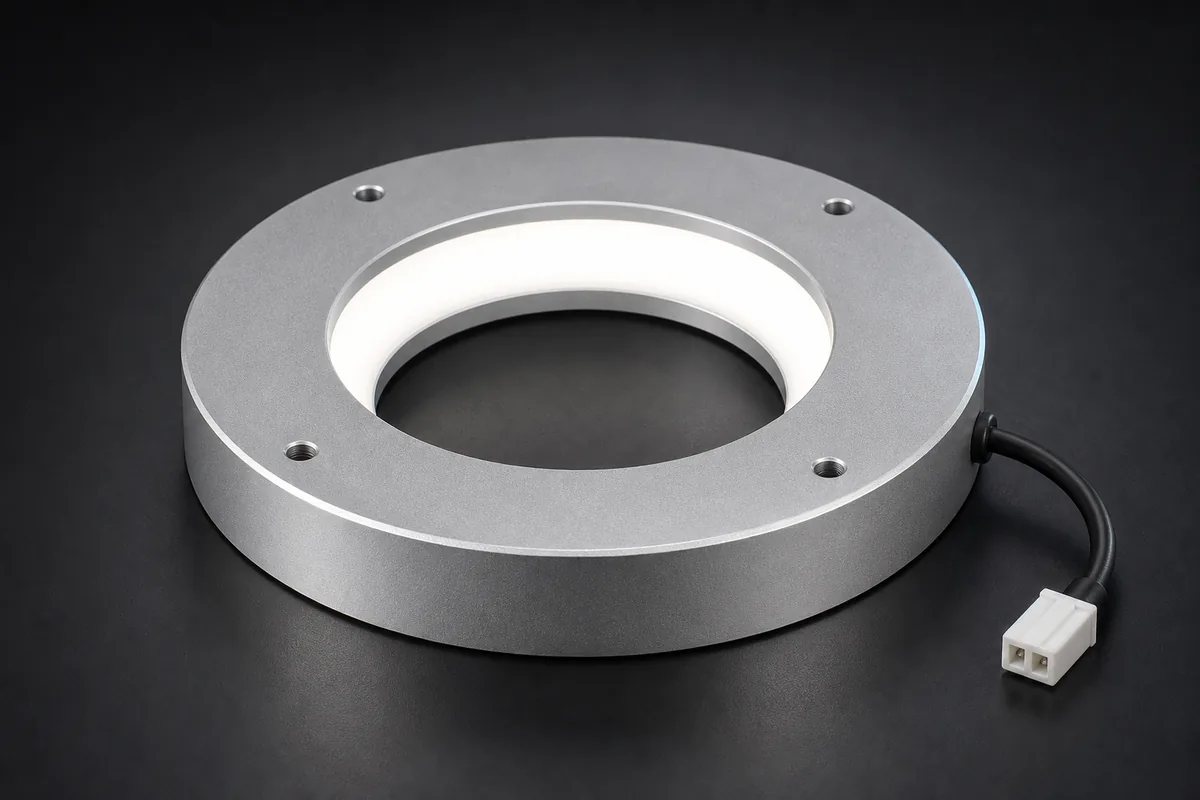

Hikrobot Ring lights for machine vision cameras

Specifications

Product type	Standard Ring Light; Shadowless ring light
Light source type	high-quality LEDs; SMD LED
Input voltage	24 VDC
Connector type	SMR-03V-B
Cooling mode	Natural cooling
Diffuse plate material	PMMA
Working temperature min	0 °C
Working temperature max	40 °C
Cable length	1 m

Part numbers and versions

Diameter up to 60 mm

Part number	PN	Housing	Emitting area	Colour	Beam angle	Power	Bore	Cable
MV-LRDS-24-30-R(C)	365003727	—	Ø24 mm	Red	30°	0.4 W	Ø6 mm	0.5 m
MV-LRDS-34-75-W(C）	365006234	—	Ø34 mm	White	75°	2 W	Ø18 mm	0.5 m
MV-LRDS-42-65-W(C)	365002901	—	Ø42 mm	White	65°	2.4 W	Ø18 mm	0.5 m
MV-LRDS-H-45-60-B2	310102281	Ø45 mm	Ø37.5 mm	Blue	60°	3.1 W	Ø15 mm	1 m
MV-LRDS-H-45-60-R2	310102280	Ø45 mm	Ø37.5 mm	Red	60°	3 W	Ø15 mm	1 m
MV-LRDS-H-45-60-W2	310102161	Ø45 mm	Ø37.5 mm	White	60°	4.1 W	Ø15 mm	1 m
MV-LRDS-H-45-90-B2	310102198	Ø45 mm	Ø37.5 mm	Blue	90°	2.2 W	Ø15 mm	1 m
MV-LRDS-H-45-90-R2	310102197	Ø45 mm	Ø37.5 mm	Red	90°	1.9 W	Ø15 mm	1 m
MV-LRDS-H-45-90-W2	310102022	Ø45 mm	Ø37.5 mm	White	90°	2.8 W	Ø15 mm	1 m
MV-LRDS-50-30-W(C)	365005773	—	Ø50 mm	White	30°	2.6 W	Ø20 mm	0.5 m
MV-LRDS-50-45-W(C)	365002768	—	Ø50 mm	White	45°	3.6 W	Ø20 mm	0.5 m
MV-LRDS-50-60-UV365(C)	365002614	Ø50 mm	Ø54 mm	Ultraviolet 365 nm	60°	2.6 W	Ø22 mm	0.5 m
MV-LRDS-52-60-IR850(C)	365001800	—	Ø52 mm	Infrared 850 nm	60°	3.2 W	Ø28 mm	0.5 m
MV-LRDS-52-60-W(C)	365003340	—	Ø52 mm	White	60°	3.6 W	Ø28 mm	0.5 m
MV-LRDS-53-90-W(C)	365002414	—	Ø53 mm	White	90°	3.2 W	Ø25 mm	0.5 m
MV-LRDS-H-55-60-B2	310102317	Ø55 mm	Ø47.5 mm	Blue	60°	5.8 W	Ø15 mm	1 m
MV-LRDS-H-55-60-R2	310102316	Ø55 mm	Ø47.5 mm	Red	60°	5.3 W	Ø15 mm	1 m
MV-LRDS-H-55-60-W2	310102210	Ø55 mm	Ø47.5 mm	White	60°	7.2 W	Ø15 mm	1 m
MV-LRDS-H-55-90-B2	310102172	Ø55 mm	Ø47.5 mm	Blue	90°	2.6 W	Ø23 mm	1 m
MV-LRDS-H-55-90-R2	310102171	Ø55 mm	Ø47.5 mm	Red	90°	2.3 W	Ø23 mm	1 m
MV-LRDS-H-55-90-W2	310102037	Ø55 mm	Ø47.5 mm	White	90°	3.3 W	Ø23 mm	1 m
MV-LRDS-60-00-W(C)	365002606	—	Ø60 mm	White	0°	1.44 W	Ø30 mm	0.5 m

Diameter 60–100 mm

Part number	PN	Housing	Emitting area	Colour	Beam angle	Power	Bore	Cable
MV-LRDS-H-65-0-B2	310102278	Ø65 mm	Ø40 mm	Blue	0°	2.9 W	Ø35 mm	1 m
MV-LRDS-H-65-0-R2	310102279	Ø65 mm	Ø40 mm	Red	0°	2.9 W	Ø35 mm	1 m
MV-LRDS-H-65-0-W2	310102277	Ø65 mm	Ø40 mm	White	0°	3.5 W	Ø35 mm	1 m
MV-LRDS-H-65-30-B2	310102276	Ø65 mm	Ø57.5 mm	Blue	30°	7.7 W	Ø30 mm	1 m
MV-LRDS-H-65-30-R2	310102315	Ø65 mm	Ø57.5 mm	Red	30°	8.4 W	Ø30 mm	1 m
MV-LRDS-H-65-30-W2	310102214	Ø65 mm	Ø57.5 mm	White	30°	9.5 W	Ø30 mm	1 m
MV-LRDS-H-65-60-B2	310102330	Ø65 mm	Ø57.5 mm	Blue	60°	7.7 W	Ø30 mm	1 m
MV-LRDS-H-65-60-R2	310102329	Ø65 mm	Ø57.5 mm	Red	60°	8.4 W	Ø30 mm	1 m
MV-LRDS-H-65-60-W2	310102217	Ø65 mm	Ø57.5 mm	White	60°	9.5 W	Ø30 mm	1 m
MV-LRDS-H-65-90-B2	310102174	Ø65 mm	Ø57.5 mm	Blue	90°	3.7 W	Ø30 mm	1 m
MV-LRDS-H-65-90-R2	310102173	Ø65 mm	Ø57.5 mm	Red	90°	3.5 W	Ø30 mm	1 m
MV-LRDS-H-65-90-W2	310102038	Ø65 mm	Ø57.5 mm	White	90°	4.9 W	Ø30 mm	1 m
MV-LRDS-66-60-W(C)	365003825	—	Ø66 mm	White	60°	6.7 W	Ø35 mm	0.5 m
MV-LRDS-73-90-IR940(C)	365002994	—	Ø73 mm	Infrared 940 nm	90°	4.7 W	Ø36 mm	0.5 m
MV-LRDS-73-90-W(C)	365002196	—	Ø73 mm	White	90°	7.1 W	Ø36 mm	0.5 m
MV-LRDS-H-73-90-B2	310102200	Ø73 mm	Ø65.5 mm	Blue	90°	5 W	Ø36 mm	1 m
MV-LRDS-H-73-90-R2	310102199	Ø73 mm	Ø65.5 mm	Red	90°	4.6 W	Ø36 mm	1 m
MV-LRDS-H-73-90-W2	310102055	Ø73 mm	Ø65.5 mm	White	90°	6.4 W	Ø36 mm	1 m
MV-LRDS-74-30-R(C)	365002352	—	Ø74 mm	Red	30°	4.8 W	Ø40 mm	0.5 m
MV-LRDS-74-30-UV365(C)	365002959	—	Ø74 mm	Ultraviolet 365 nm	30°	4.1 W	Ø40 mm	0.5 m
MV-LRDS-74-30-W(C)	365002890	—	Ø74 mm	White	30°	4.8 W	Ø40 mm	0.5 m
MV-LRDS-74-60-B(C)	365002413	—	Ø74 mm	Blue	60°	7.1 W	Ø35 mm	0.5 m
MV-LRDS-74-60-W(C)	365003736	—	Ø74 mm	White	60°	7.1 W	Ø35 mm	0.5 m
MV-LRDS-74-75-B(C）	365005003	—	Ø74 mm	Blue	75°	5.9 W	Ø35 mm	0.5 m
MV-LRDS-H-80-15-B2	310102312	Ø80 mm	Ø72 mm	Blue	15°	10.4 W	Ø35 mm	1 m
MV-LRDS-H-80-15-R2	310102311	Ø80 mm	Ø72 mm	Red	15°	9.1 W	Ø35 mm	1 m
MV-LRDS-H-80-15-W2	310102207	Ø80 mm	Ø72 mm	White	15°	12.9 W	Ø35 mm	1 m
MV-LRDS-H-80-30-B2	310102334	Ø80 mm	Ø72 mm	Blue	30°	10.4 W	Ø35 mm	1 m
MV-LRDS-H-80-30-R2	310102333	Ø80 mm	Ø72 mm	Red	30°	9.1 W	Ø35 mm	1 m
MV-LRDS-H-80-30-W2	310102219	Ø80 mm	Ø72 mm	White	30°	12.9 W	Ø35 mm	1 m
MV-LRDS-H-80-60-B2	310102310	Ø80 mm	Ø72 mm	Blue	60°	10.4 W	Ø35 mm	1 m
MV-LRDS-H-80-60-R2	310102309	Ø80 mm	Ø72 mm	Red	60°	9.1 W	Ø35 mm	1 m
MV-LRDS-H-80-60-W2	310102206	Ø80 mm	Ø72 mm	White	60°	12.9 W	Ø35 mm	1 m
MV-LRDS-H-80-90-B2	310102176	Ø80 mm	Ø72 mm	Blue	90°	7.7 W	Ø35 mm	1 m
MV-LRDS-H-80-90-R2	310102175	Ø80 mm	Ø72 mm	Red	90°	6.9 W	Ø35 mm	1 m
MV-LRDS-H-80-90-W2	310102039	Ø80 mm	Ø72 mm	White	90°	9.9 W	Ø35 mm	1 m
MV-LRES-80-90-W(C)	365004931	—	Ø80 mm	White	90°	6.8 W	Ø38 mm	0.5 m
MV-LRSS-H-80-W	310100949	Ø80 mm	Ø66 mm	White	90°	8.7 W	Ø40 mm	1 m
MV-LRSS-80-W(C)	365002612	—	Ø80 mm	White	—	6.3 W	Ø36 mm	0.5 m
MV-LRDS-90-30-W(C)	310101373	—	Ø90 mm	White	30°	9.5 W	Ø50 mm	0.5 m
MV-LRDS-90-45-R(C)	365001145	—	Ø90 mm	Red	45°	7.1 W	Ø46 mm	0.5 m
MV-LRDS-90-45-W(C)	310101374	—	Ø90 mm	White	45°	12 W	Ø46 mm	0.5 m
MV-LRDS-90-70-IR850(C)	365003068	—	Ø90 mm	Infrared 850 nm	70°	11 W	Ø44 mm	0.5 m
MV-LRDS-90-70-UV365(C)	365003059	—	Ø90 mm	Ultraviolet 365 nm	70°	11 W	Ø44 mm	0.5 m
MV-LRDS-90-70-W(C)	310101375	—	Ø90 mm	White	70°	12 W	Ø44 mm	0.5 m
MV-LRDS-90-80-W(C)	310100729	—	Ø90 mm	White	80°	9.5 W	Ø50 mm	0.5 m
MV-LRDS-90-90-IR940(C)	365003108	—	Ø90 mm	Infrared 940 nm	90°	7.1 W	Ø50 mm	0.5 m
MV-LRDS-H-95-0-B2	310102170	Ø95 mm	Ø70 mm	Blue	0°	4 W	Ø60 mm	1 m
MV-LRDS-H-95-0-R2	310102169	Ø95 mm	Ø70 mm	Red	0°	3.2 W	Ø60 mm	1 m
MV-LRDS-H-95-0-W2	310102025	Ø95 mm	Ø70 mm	White	0°	5.3 W	Ø60 mm	1 m
MV-LRDS-H-95-30-B2	310102324	Ø95 mm	Ø87 mm	Blue	30°	12.1 W	Ø45 mm	1 m
MV-LRDS-H-95-30-R2	310102323	Ø95 mm	Ø87 mm	Red	30°	8.9 W	Ø45 mm	1 m
MV-LRDS-H-95-30-W2	310102213	Ø95 mm	Ø87 mm	White	30°	14.8 W	Ø45 mm	1 m
MV-LRDS-H-95-60-B2	310102303	Ø95 mm	Ø87 mm	Blue	60°	12.1 W	Ø45 mm	1 m
MV-LRDS-H-95-60-R2	310102302	Ø95 mm	Ø87 mm	Red	60°	8.9 W	Ø45 mm	1 m
MV-LRDS-H-95-60-W2	310102091	Ø95 mm	Ø87 mm	White	60°	14.8 W	Ø45 mm	1 m
MV-LRDS-H-95-90-B2	310102178	Ø95 mm	Ø87 mm	Blue	90°	11.5 W	Ø45 mm	1 m
MV-LRDS-H-95-90-R2	310102177	Ø95 mm	Ø87 mm	Red	90°	10.7 W	Ø45 mm	1 m
MV-LRDS-H-95-90-W2	310102040	Ø95 mm	Ø87 mm	White	90°	14.5 W	Ø45 mm	1 m
MV-LRDS-96-0-B(C)	365004575	—	Ø96 mm	Blue	0°	3.6 W	Ø60 mm	0.5 m
MV-LRDS-96-70-W(C)	365005202	—	Ø96 mm	White	70°	11 W	Ø50 mm	0.5 m
MV-LRDS-100-90-B(C)	365002088	—	Ø100 mm	Blue	90°	14 W	Ø40 mm	0.5 m
MV-LRDS-100-90-W(C)	365002725	—	Ø100 mm	White	90°	14 W	Ø40 mm	0.5 m

Diameter 100–150 mm

Part number	PN	Housing	Emitting area	Colour	Beam angle	Power	Bore	Cable
MV-LRDS-H-105-0-B2	310102188	Ø105 mm	Ø75 mm	Blue	0°	5.3 W	Ø65 mm	1 m
MV-LRDS-H-105-0-R2	310102187	Ø105 mm	Ø75 mm	Red	0°	4.5 W	Ø65 mm	1 m
MV-LRDS-H-105-0-W2	310102045	Ø105 mm	Ø75 mm	White	0°	6.9 W	Ø65 mm	1 m
MV-LRDS-H-105-15-B2	310102342	Ø105 mm	Ø92 mm	Blue	15°	13.8 W	Ø43 mm	1 m
MV-LRDS-H-105-15-R2	310102341	Ø105 mm	Ø92 mm	Red	15°	11.9 W	Ø43 mm	1 m
MV-LRDS-H-105-15-W2	310102224	Ø105 mm	Ø92 mm	White	15°	17.3 W	Ø43 mm	1 m
MV-LRDS-H-105-30-B2	310102275	Ø105 mm	Ø92 mm	Blue	30°	13.8 W	Ø43 mm	1 m
MV-LRDS-H-105-30-R2	310102274	Ø105 mm	Ø92 mm	Red	30°	11.9 W	Ø43 mm	1 m
MV-LRDS-H-105-30-W2	310102209	Ø105 mm	Ø92 mm	White	30°	17.3 W	Ø43 mm	1 m
MV-LRDS-H-105-45-B2	310102340	Ø105 mm	Ø92 mm	Blue	45°	13.8 W	Ø43 mm	1 m
MV-LRDS-H-105-45-R2	310102339	Ø105 mm	Ø92 mm	Red	45°	11.9 W	Ø43 mm	1 m
MV-LRDS-H-105-45-W2	310102223	Ø105 mm	Ø92 mm	White	45°	17.3 W	Ø43 mm	1 m
MV-LRDS-H-105-60-B2	310102301	Ø105 mm	Ø92 mm	Blue	60°	13.8 W	Ø43 mm	1 m
MV-LRDS-H-105-60-R2	310102300	Ø105 mm	Ø92 mm	Red	60°	11.9 W	Ø43 mm	1 m
MV-LRDS-H-105-60-W2	310102070	Ø105 mm	Ø92 mm	White	60°	17.3 W	Ø43 mm	1 m
MV-LRDS-H-105-90-B2	310102168	Ø105 mm	Ø92 mm	Blue	90°	12.1 W	Ø43 mm	1 m
MV-LRDS-H-105-90-R2	310102167	Ø105 mm	Ø92 mm	Red	90°	11.7 W	Ø43 mm	1 m
MV-LRDS-H-105-90-W2	310102023	Ø105 mm	Ø92 mm	White	90°	16.1 W	Ø43 mm	1 m
MV-LRSS-116-W(C)	365001191	—	Ø116 mm	White	—	14 W	Ø66 mm	0.5 m
MV-LRDS-H-120-0-B2	310102166	Ø120 mm	Ø90 mm	Blue	0°	6.7 W	Ø80 mm	1 m
MV-LRDS-H-120-0-R2	310102165	Ø120 mm	Ø90 mm	Red	0°	5 W	Ø80 mm	1 m
MV-LRDS-H-120-0-W2	310102026	Ø120 mm	Ø90 mm	White	0°	8.6 W	Ø80 mm	1 m
MV-LRDS-120-30-B(C)	365002399	—	Ø120 mm	Blue	30°	14 W	Ø80 mm	0.5 m
MV-LRDS-120-30-R(C)	365002400	—	Ø120 mm	Red	30°	8.3 W	Ø80 mm	0.5 m
MV-LRDS-H-120-30-B2	310102328	Ø120 mm	Ø107 mm	Blue	30°	20.3 W	Ø60 mm	1 m
MV-LRDS-H-120-30-R2	310102327	Ø120 mm	Ø107 mm	Red	30°	16.8 W	Ø60 mm	1 m
MV-LRDS-H-120-30-W2	310102216	Ø120 mm	Ø107 mm	White	30°	25 W	Ø60 mm	1 m
MV-LRDS-120-45-W(C)	310101377	—	Ø120 mm	White	45°	20.4 W	Ø60 mm	0.5 m
MV-LRDS-H-120-45-B2	310102338	Ø120 mm	Ø107 mm	Blue	45°	20.3 W	Ø60 mm	1 m
MV-LRDS-H-120-45-R2	310102337	Ø120 mm	Ø107 mm	Red	45°	16.8 W	Ø60 mm	1 m
MV-LRDS-H-120-45-W2	310102221	Ø120 mm	Ø107 mm	White	45°	25 W	Ø60 mm	1 m
MV-LRDS-H-120-60-B2	310102306	Ø120 mm	Ø107 mm	Blue	60°	20.3 W	Ø60 mm	1 m
MV-LRDS-H-120-60-R2	310102305	Ø120 mm	Ø107 mm	Red	60°	16.8 W	Ø60 mm	1 m
MV-LRDS-H-120-60-W2	310102204	Ø120 mm	Ø107 mm	White	60°	25 W	Ø60 mm	1 m
MV-LRDS-120-70-IR940(C)	365003715	—	Ø120 mm	Infrared 940 nm	70°	15 W	Ø65 mm	0.5 m
MV-LRDS-120-70-R(C)	365002353	—	Ø120 mm	Red	70°	17 W	Ø65 mm	0.5 m
MV-LRDS-120-70-UV365(C)	365003294	—	Ø120 mm	Ultraviolet 365 nm	70°	15 W	Ø65 mm	0.5 m
MV-LRDS-120-70-W(C)	310101378	—	Ø120 mm	White	70°	17 W	Ø65 mm	0.5 m
MV-LRDS-H-120-75-B2	310102326	Ø120 mm	Ø107 mm	Blue	75°	20.3 W	Ø60 mm	1 m
MV-LRDS-H-120-75-R2	310102325	Ø120 mm	Ø107 mm	Red	75°	16.8 W	Ø60 mm	1 m
MV-LRDS-H-120-75-W2	310102215	Ø120 mm	Ø107 mm	White	75°	25 W	Ø60 mm	1 m
MV-LRDS-120-80-W(C)	365002349	—	Ø120 mm	White	80°	15 W	Ø65 mm	0.5 m
MV-LRDS-120-30-W(C)	310101376	—	Ø120 mm	White	90°	14 W	Ø80 mm	0.5 m
MV-LRDS-120-90-W(C)	365002047	—	Ø120 mm	White	90°	13 W	Ø76 mm	0.5 m
MV-LRDS-H-120-90-B2	310102180	Ø120 mm	Ø107 mm	Blue	90°	13.3 W	Ø60 mm	1 m
MV-LRDS-H-120-90-R2	310102179	Ø120 mm	Ø107 mm	Red	90°	12.7 W	Ø60 mm	1 m
MV-LRDS-H-120-90-W2	310102041	Ø120 mm	Ø107 mm	White	90°	17.3 W	Ø60 mm	1 m
MV-LRSS-H-120-W	310101063	Ø120 mm	Ø106 mm	White	90°	13.1 W	Ø75 mm	1 m
MV-LRDS-132-20-B(C)	365002401	Ø132 mm	Ø116 mm	Blue	20°	15 W	Ø96 mm	0.5 m
MV-LRDS-132-20-W(C)	365002177	Ø132 mm	Ø116 mm	White	20°	15 W	Ø96 mm	0.5 m
MV-LRDS-H-140-15-B2	310102336	Ø140 mm	Ø127 mm	Blue	15°	24.5 W	Ø70 mm	1 m
MV-LRDS-H-140-15-R2	310102335	Ø140 mm	Ø127 mm	Red	15°	22.4 W	Ø70 mm	1 m
MV-LRDS-H-140-15-W2	310102220	Ø140 mm	Ø127 mm	White	15°	30.3 W	Ø70 mm	1 m
MV-LRDS-H-140-45-B2	310102320	Ø140 mm	Ø127 mm	Blue	45°	24.5 W	Ø70 mm	1 m
MV-LRDS-H-140-45-R2	310102319	Ø140 mm	Ø127 mm	Red	45°	22.4 W	Ø70 mm	1 m
MV-LRDS-H-140-45-W2	310102211	Ø140 mm	Ø127 mm	White	45°	30.3 W	Ø70 mm	1 m
MV-LRDS-H-140-90-B2	310102182	Ø140 mm	Ø127 mm	Blue	90°	17.6 W	Ø70 mm	1 m
MV-LRDS-H-140-90-R2	310102181	Ø140 mm	Ø127 mm	Red	90°	14.7 W	Ø70 mm	1 m
MV-LRDS-H-140-90-W2	310102042	Ø140 mm	Ø127 mm	White	90°	23.3 W	Ø70 mm	1 m
MV-LRDS-146-0-W(C)	365003905	—	Ø146 mm	White	0°	4.8 W	Ø104 mm	0.5 m
MV-LRDS-150-30-W(C)	365003070	—	Ø150 mm	White	30°	20 W	Ø102 mm	0.5 m
MV-LRDS-150-60-W(C)	365005567	—	Ø150 mm	White	60°	16 W	Ø110 mm	0.5 m
MV-LRDS-150-75-W(C)	310100767	—	Ø150 mm	White	75°	15 W	Ø100 mm	0.5 m
MV-LRDS-150-90-W(C)	365002354	—	Ø150 mm	White	90°	34 W	Ø40 mm	0.5 m

Diameter 150 mm and larger

Part number	PN	Housing	Emitting area	Colour	Beam angle	Power	Bore	Cable
CST-RS18030-W	365001099	—	Ø160 mm	White	30°	26 W	Ø132 mm	0.5 m
CST-RS18030-G	365001280	—	Ø180 mm	Green	60°	26 W	Ø132 mm	0.5 m
MV-LRDS-H-160-0-B2	310102190	Ø160 mm	Ø130 mm	Blue	0°	7.8 W	Ø120 mm	1 m
MV-LRDS-H-160-0-R2	310102189	Ø160 mm	Ø130 mm	Red	0°	6.7 W	Ø120 mm	1 m
MV-LRDS-H-160-0-W2	310102046	Ø160 mm	Ø130 mm	White	0°	10.2 W	Ø120 mm	1 m
MV-LRDS-H-160-30-B2	310102308	Ø160 mm	Ø147 mm	Blue	30°	31.2 W	Ø90 mm	1 m
MV-LRDS-H-160-30-R2	310102307	Ø160 mm	Ø147 mm	Red	30°	25.4 W	Ø90 mm	1 m
MV-LRDS-H-160-30-W2	310102205	Ø160 mm	Ø147 mm	White	30°	36.4 W	Ø90 mm	1 m
MV-LRDS-H-160-60-B2	310102322	Ø160 mm	Ø147 mm	Blue	60°	31.2 W	Ø90 mm	1 m
MV-LRDS-H-160-60-R2	310102321	Ø160 mm	Ø147 mm	Red	60°	25.4 W	Ø90 mm	1 m
MV-LRDS-H-160-60-W2	310102212	Ø160 mm	Ø147 mm	White	60°	36.4 W	Ø90 mm	1 m
MV-LRDS-H-160-90-B2	310102184	Ø160 mm	Ø147 mm	Blue	90°	21.1 W	Ø90 mm	1 m
MV-LRDS-H-160-90-R2	310102183	Ø160 mm	Ø147 mm	Red	90°	19.3 W	Ø90 mm	1 m
MV-LRDS-H-160-90-W2	310102043	Ø160 mm	Ø147 mm	White	90°	27.5 W	Ø90 mm	1 m
MV-LRSS-H-160-R	310102376	Ø160 mm	Ø146 mm	Red	90°	11.8 W	Ø116 mm	1 m
MV-LRSS-H-160-W	310101064	Ø160 mm	Ø146 mm	White	90°	17.4 W	Ø116 mm	1 m
MV-LRSS-166-R(C)	365002372	—	Ø166 mm	Red	—	14 W	Ø116 mm	0.5 m
MV-LRSS-166-W(C)	310100732	—	Ø166 mm	White	—	23 W	Ø116 mm	0.5 m
MV-LRDS-170-20-R(C)	310100730	—	Ø170 mm	Red	20°	13 W	Ø134 mm	0.5 m
MV-LRDS-H-180-0-B2	310102192	Ø180 mm	Ø150 mm	Blue	0°	12.5 W	Ø140 mm	1 m
MV-LRDS-H-180-0-R2	310102191	Ø180 mm	Ø150 mm	Red	0°	12.1 W	Ø140 mm	1 m
MV-LRDS-H-180-0-W2	310102047	Ø180 mm	Ø150 mm	White	0°	17.2 W	Ø140 mm	1 m
MV-LRDS-H-180-15-B2	310102348	Ø180 mm	Ø167 mm	Blue	15°	33.5 W	Ø100 mm	1 m
MV-LRDS-H-180-15-R2	310102347	Ø180 mm	Ø167 mm	Red	15°	27.4 W	Ø100 mm	1 m
MV-LRDS-H-180-15-W2	310102227	Ø180 mm	Ø167 mm	White	15°	38.5 W	Ø100 mm	1 m
MV-LRDS-180-45-W(C)	365003980	—	Ø180 mm	White	45°	24 W	Ø130 mm	0.5 m
MV-LRDS-H-180-45-B2	310102346	Ø180 mm	Ø167 mm	Blue	45°	33.5 W	Ø100 mm	1 m
MV-LRDS-H-180-45-R2	310102345	Ø180 mm	Ø167 mm	Red	45°	27.4 W	Ø100 mm	1 m
MV-LRDS-H-180-45-W2	310102226	Ø180 mm	Ø167 mm	White	45°	38.5 W	Ø100 mm	1 m
MV-LRDS-180-60-W(C)	365002355	—	Ø180 mm	White	60°	26 W	Ø126 mm	0.5 m
MV-LRDS-H-180-60-B2	310102314	Ø180 mm	Ø167 mm	Blue	60°	33.5 W	Ø100 mm	1 m
MV-LRDS-H-180-60-R2	310102313	Ø180 mm	Ø167 mm	Red	60°	27.4 W	Ø100 mm	1 m
MV-LRDS-H-180-60-W2	310102208	Ø180 mm	Ø167 mm	White	60°	38.5 W	Ø100 mm	1 m
MV-LRDS-H-180-75-B2	310102344	Ø180 mm	Ø167 mm	Blue	75°	33.5 W	Ø100 mm	1 m
MV-LRDS-H-180-75-R2	310102343	Ø180 mm	Ø167 mm	Red	75°	27.4 W	Ø100 mm	1 m
MV-LRDS-H-180-75-W2	310102225	Ø180 mm	Ø167 mm	White	75°	38.5 W	Ø100 mm	1 m
MV-LRDS-180-90-W(C)	365003981	—	Ø180 mm	White	90°	23 W	Ø130 mm	0.5 m
MV-LRDS-H-180-90-B2	310102186	Ø180 mm	Ø167 mm	Blue	90°	29 W	Ø100 mm	1 m
MV-LRDS-H-180-90-R2	310102185	Ø180 mm	Ø167 mm	Red	90°	24.9 W	Ø100 mm	1 m
MV-LRDS-H-180-90-W2	310102044	Ø180 mm	Ø167 mm	White	90°	34.3 W	Ø100 mm	1 m
MV-LRSS-196-B(C)	365003336	—	Ø196 mm	White	—	27 W	Ø146 mm	0.5 m
MV-LRDS-H-200-0-B2	310102194	Ø200 mm	Ø170 mm	Blue	0°	15.4 W	Ø160 mm	1 m
MV-LRDS-H-200-0-R2	310102193	Ø200 mm	Ø170 mm	Red	0°	12.1 W	Ø160 mm	1 m
MV-LRDS-H-200-0-W2	310102024	Ø200 mm	Ø170 mm	White	0°	20 W	Ø160 mm	1 m
MV-LRDS-H-200-30-B2	310102332	Ø200 mm	Ø187 mm	Blue	30°	39 W	Ø115 mm	1 m
MV-LRDS-H-200-30-R2	310102331	Ø200 mm	Ø187 mm	Red	30°	32.9 W	Ø115 mm	1 m
MV-LRDS-H-200-30-W2	310102218	Ø200 mm	Ø187 mm	White	30°	47.5 W	Ø115 mm	1 m
MV-LRDS-200-90-W(C)	310100731	—	Ø200 mm	White	90°	61 W	Ø70 mm	0.5 m
MV-LRDS-H-200-90-B2	310102196	Ø200 mm	Ø187 mm	Blue	90°	38 W	Ø115 mm	1 m
MV-LRDS-H-200-90-R2	310102195	Ø200 mm	Ø187 mm	Red	90°	35.8 W	Ø115 mm	1 m
MV-LRDS-H-200-90-W2	310102021	Ø200 mm	Ø187 mm	White	90°	33.1 W	Ø115 mm	1 m
MV-LRSS-H-200-W	310101065	Ø200 mm	Ø186 mm	White	90°	21.8 W	Ø148 mm	1 m
MV-LRDS-208-20-R(C)	365003906	—	Ø208 mm	Red	20°	15 W	Ø162 mm	0.5 m
MV-LRSS-208-W(C)	365002373	—	Ø208 mm	White	—	34 W	Ø158 mm	0.5 m
MV-LRES-210-66-RGB-M2(C)	365004078	—	Ø210 mm	RGB	—	43.3 W	Ø66 mm	0.5 m
MV-LRDS-213-00-W(C)	365002356	—	Ø213 mm	White	0°	8 W	Ø175 mm	0.5 m
MV-LRDS-H-230-15-B2	310102273	Ø230 mm	Ø217 mm	Blue	15°	48.9 W	Ø145 mm	1 m
MV-LRDS-H-230-15-R2	310102272	Ø230 mm	Ø217 mm	Red	15°	37.9 W	Ø145 mm	1 m
MV-LRDS-H-230-15-W2	310102162	Ø230 mm	Ø217 mm	White	15°	59.9 W	Ø145 mm	1 m
MV-LRDS-H-230-60-W2	310102222	Ø230 mm	Ø217 mm	White	60°	60 W	Ø145 mm	1 m
MV-LRSS-H-250-B	310102429	Ø250 mm	Ø236 mm	Blue	90°	24.2 W	Ø190 mm	1 m
MV-LRSS-H-250-W	310101066	Ø250 mm	Ø236 mm	White	90°	26.2 W	Ø190 mm	1 m
MV-LRSS-H-300-W	310101067	Ø300 mm	Ø286 mm	White	90°	30.5 W	Ø248 mm	1 m
