Lenses · Telecentric

Telecentric lenses for 2/3″ sensors

The widest telecentric range: magnification from 0.1× to 10×, working distances from 63 to 760 mm. The 2/3″ format covers most measurement tasks — dimensional inspection of stamped parts, thread and hole checks, positioning in assembly cells.

Price on requestAn engineer will confirm pricing and lead time in the first reply.

Find the right model

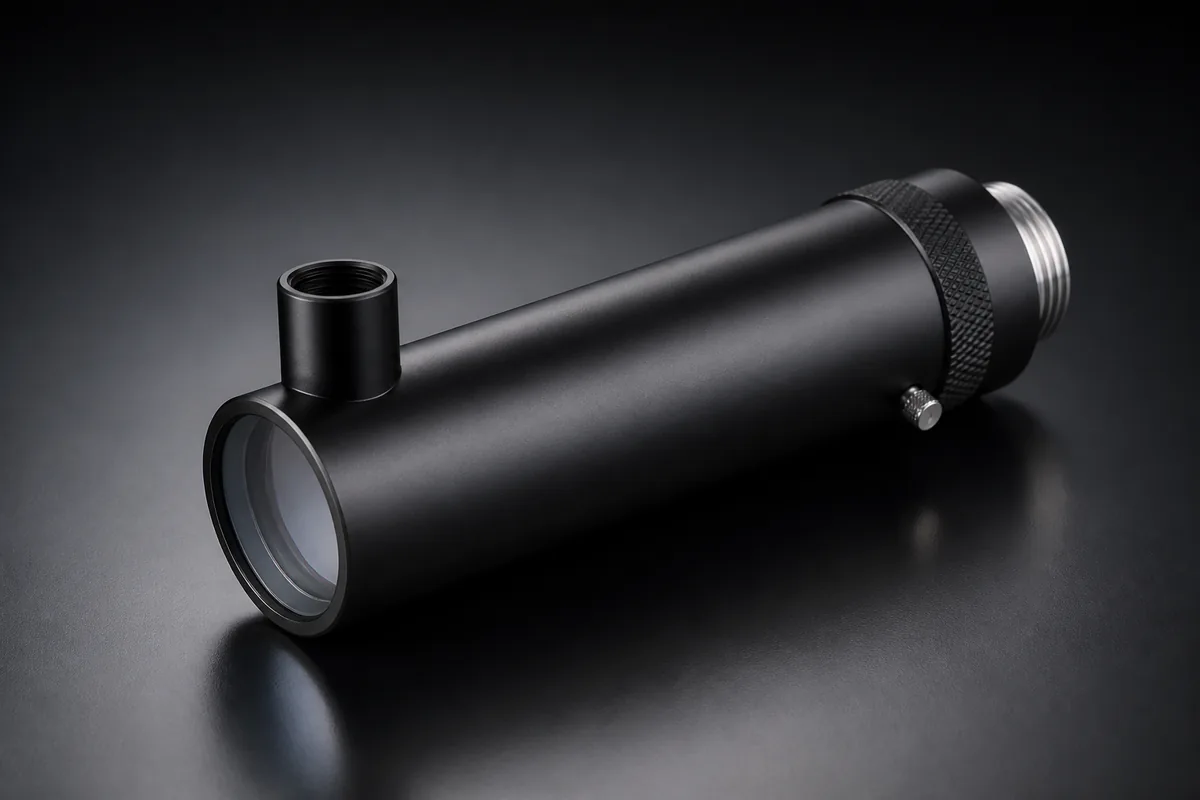

Hikrobot Telecentric lenses for 2/3″ sensors

Specifications

Operating temperature

–10 °C to 50 °C (14 °F to 122 °F)

Part numbers and versions

Magnification up to 0.5×

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-MY-01-290	365002545	0.1×	290 mm	F11.9	Φ11 mm	95 mm	C-mount	—
MVL-MY-015-680	365006287	0.15×	680 mm	—	2/3"	37.3 mm	—	—
MVL-MY-018-150-MP	102202816	0.18×	150 ± 2 mm	F12.6	Φ11 mm	30 mm	C-mount	—
MVL-MY-0188-167	102201397	0.188×	167 ± 2 mm	F6.8 to F40	Φ11 mm	8.4 mm	C-mount	—
MVL-MY-02-140	365001294	0.2×	140 mm	F14.4	Φ11 mm	28.8 mm	C-mount	—
MVL-MY-02-300	365001295	0.2×	300 mm	F9.8	Φ11 mm	19.6 mm	C-mount	—
MVL-MY-02-625	365006035	0.2×	625 mm	—	2/3"	27 mm	—	—
MVL-MT-022-200	365006036	0.22×	200 ± 3 mm	F10	Ø 11 mm (2/3")	± 8.3 mm @ F10	C-mount	—
MVL-MY-022-235	365003067	0.22×	235 mm	F14.1	Φ11 mm	23.3 mm	C-mount	—
MVL-MY-025-760	365008725	0.25×	760 mm	F10	Φ11 mm	12.8 mm	C-mount	—
MVL-MY-027-120-MP	102201737	0.27×	120 ± 2 mm	F14.3	Φ11 mm	15.7 mm	C-mount	—
MVL-MY-03-110C-V3	365007328	0.3×	110 mm	F9	Φ11 mm	± 4 mm @ F9	C-mount	yes
MVL-MY-03-110-V3	365007330	0.3×	110 mm	F9	Φ11 mm	± 4 mm @ F9	C-mount	—
MVL-MT-03-110	365004131	0.3×	110 ± 2 mm	F5.6	Φ11 mm	± 2.5 mm @F5.6	C-mount	—
MVL-MY-03-140	365001715	0.3×	140 mm	F11.7	Φ11 mm	10.4 mm	C-mount	—
MVL-MT-03-180	365003686	0.3×	180 ± 2 mm	F10	Φ11 mm	± 4.4 mm @F10	C-mount	—
MVL-MT-03-220	365011332	0.3×	220 ± 2 mm	F13.6	Ø 11 mm (2/3")	± 6 mm @ F13.6	C-mount	—
MVL-MY-03-240	365008087	0.3×	240 mm	F9.5	Φ11 mm	8.4 mm	C-mount	—
MVL-MT-03-350	365008750	0.3×	350 mm	F7	Φ11 mm	6.2 mm	C-mount	—
MVL-MT-0348-135	365005159	0.348×	135 mm	—	2/3"	±2.6 mm@F8	—	—
MVL-MY-0349-97	365011331	0.349×	96.9 mm	F9	Ø 11 mm (2/3")	5.9 mm	C-mount	—
MVL-MY-04-65	365006777	0.4×	65 mm ± 3 mm	F14.4	Φ11 mm	7.2 mm	C-mount	—
MVL-MT-04-110	310100807	0.4×	110 ± 2 mm	F7	Φ11 mm	± 1.8 mm @F7	C-mount	—
MVL-MY-04-400	365006183	0.4×	400 mm	—	2/3"	7.2 mm	—	—
MVL-MY-043-327	365008456	0.43×	327 mm	F7.5	Φ11 mm	3.2 mm	C-mount	—
MVL-MY-045-135	365002339	0.45×	135 mm	F15.3	Φ11 mm	6 mm	C-mount	—
MVL-MY-045-135C-MP	102201334	0.45×	135 ± 2 mm	F15.8	Φ11 mm	6.24 mm	C-mount	—

Magnification 0.5–1×

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-MY-05-65	102202814	0.5×	65 ± 2 mm	F13.1	Φ11 mm	4.2 mm	C-mount	—
MVL-MY-05-110C-MP	102201022	0.5×	110 ± 2 mm	F9.3	Φ11 mm	2.98 mm	C-mount	yes
MVL-MY-05-110-MP	102201023	0.5×	110 ± 2 mm	F9.3	Φ11 mm	2.98 mm	C-mount	—
MVL-MY-05-110C-G	365004177	0.5×	110 ± 2 mm	F9.6 to F25.7	Φ11 mm	2.0 mm to 9.0 mm	C-mount	yes
MVL-MY-05-110G	365006172	0.5×	110 mm	—	2/3"	2.0~9.0 mm	—	—
MVL-MT-05-110	365006187	0.5×	110 mm	—	2/3"	±1.1 mm@F7	—	—
MVL-MY-05-110-V3	365006079	0.5×	110 mm	F9.6	Φ11 mm	± 1.5 mm @ F9.6	C-mount	—
MVL-MY-05-110C-V3	365008636	0.5×	110 mm	F9.6	Φ11 mm	±1.5 mm @ F9.6	C-mount	yes
MVL-MY-05-150	365006668	0.5×	150 mm	F13.4	Φ11 mm	4.3 mm	C-mount	—
MVL-MY-05-270	365009603	0.5×	270 mm	F13.2	Φ11 mm	4.2 mm	C-mount	—
MVL-MY-06-150	365002644	0.6×	150 mm	F12	Φ11 mm	2.7 mm	C-mount	—
MVL-MY-06-158	365008970	0.6×	158 mm	F16.2	Φ11 mm	3.6 mm	C-mount	—
MVL-MY-06-450	365003770	0.6×	450 mm	F20.8	Φ11 mm	4.6 mm	C-mount	—
MVL-MY-07-70	365006182	0.7×	70 mm	—	2/3"	1.6 mm	—	—
MVL-MY-07-145	365002268	0.7×	145 ± 2 mm	F16.8	Φ11 mm	2.7 mm	C-mount	—
MVL-MY-07-145C	365002769	0.7×	145 ± 2 mm	F16.8	Φ11 mm	2.7 mm	C-mount	yes
MVL-MY-07-145C-G	365008141	0.7×	145 mm ± 2 mm	F16.8	Φ11 mm	2.7 mm	C-mount	yes
MVL-MY-07-145G	365008839	0.7×	145 mm ± 2 mm	F13.4 to F32	Φ11 mm	2.2 mm to 5.2 mm	C-mount	yes
MVL-MY-07-460	365009387	0.7×	460 mm	F24.5	Φ11 mm	4.0 mm	C-mount	—
MVL-MY-08-65-MP	102201751	0.8×	65 ± 2 mm	F10	Φ11 mm	1.25 mm	C-mount	—
MVL-MY-08-108	365008984	0.8×	108 mm ± 2 mm	F7	Φ11 mm	0.9 mm	C-mount	—
MVL-MY-08-130C-MP	102201330	0.8×	130 ± 2 mm	F11.2	Φ11 mm	1.4 mm	C-mount	yes
MVL-MY-08-130-MP	102201327	0.8×	130 ± 2 mm	F11.2	Φ11 mm	1.4 mm	C-mount	—
MVL-MY-08-180	365003416	0.8×	180 mm	F10	Φ11 mm	1.3 mm	C-mount	—
MVL-MY-08-250C-MP	102201332	0.8×	250 ± 2 mm	F20	Φ11 mm	2.2 mm	C-mount	yes
MVL-MY-08-250-MP	365003158	0.8×	250 mm	F20	Φ11 mm	2.5 mm	C-mount	—
MVL-MY-08-300	365008458	0.8×	300 mm	F24	Φ11 mm	3.0 mm	C-mount	—

Magnification 1–3×

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-MY-1-63	365008448	1×	63 mm ± 1 mm	F8	Φ11 mm	0.6 mm	C-mount	—
MVL-MY-1-63C	365008449	1×	63 mm ± 1 mm	F8	Φ11 mm	0.6 mm	C-mount	yes
MVL-MY-1-108	365002645	1×	108 mm	F7	Φ11 mm	0.6 mm	C-mount	—
MVL-MY-1-108C	365008592	1×	108 mm	F7.0	Φ11 mm	0.6 mm	C-mount	yes
MVL-MY-1-110C-MP	102201024	1×	110 ± 2 mm	F11	Φ11 mm	0.88 mm	C-mount	yes
MVL-MY-1-110-MP	102201025	1×	110 ± 2 mm	F11	Φ11 mm	0.88 mm	C-mount	—
MVL-MY-1-150	365006949	1×	150 mm	F11	Φ11 mm	0.9 mm	C-mount	—
MVL-MY-1-180	365006178	1×	180 mm	—	2/3"	0.9 mm	—	—
MVL-MY-1-200-MP	365005032	1×	200 mm	F24.8	Φ11 mm	2 mm	C-mount	—
MVL-MY-1-300-V2	365003031	1×	300 mm	F11	Φ11 mm	0.9 mm	C-mount	—
MVL-MY-1-370	365010755	1×	370 mm	F12	Ø 11 mm (2/3")	1.0 mm	C-mount	—
MVL-MY-1-410C	365007110	1×	410 mm ± 3 mm	F17.9	Φ11 mm	1.4 mm	C-mount	yes
MVL-MY-136-73C	365011144	1.36×	73 mm	F11.3	Ø 11 mm (2/3")	0.5 mm	C-mount	yes
MVL-MY-15-108	365006198	1.5×	108 mm	—	2/3"	0.3mm	—	—
MVL-MY-15-108C	365008751	1.5×	108 mm	F7.3	Φ11 mm	0.3 mm	C-mount	yes
MVL-MY-2-63	365008450	2×	63 mm ±1 mm	F10	Φ11 mm	0.2 mm	C-mount	—
MVL-MY-2-63C	365008451	2×	63 mm ±1 mm	F10	Φ11 mm	0.2 mm	C-mount	yes
MVL-MY-2-108C	365006216	2×	108 mm	—	2/3"	0.2mm	—	—
MVL-MY-2-108	365009408	2×	108 mm	F10.5	Φ11 mm	0.2 mm	C-mount	—
MVL-MY-2-110C-MP	102201026	2×	110 ± 2 mm	F13.6	Φ11 mm	0.27 mm	C-mount	yes
MVL-MY-2-110-MP	102201027	2×	110 ± 2 mm	F13.6	Φ11 mm	0.27 mm	C-mount	—

Magnification 3× and above

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-MY-3-63	365009068	3×	63 mm	F11.9	Φ11 mm	0.1 mm	C-mount	—
MVL-MY-3-108	365006424	3×	108 mm	F15	Φ11 mm	0.13 mm	C-mount	—
MVL-MY-4-63	365008452	4×	63 mm ± 1 mm	F15.8	Φ11 mm	0.1 mm	C-mount	—
MVL-MY-4-63C	365008453	4×	63 mm ± 1 mm	F15.8	Φ11 mm	0.1 mm	C-mount	yes
MVL-MY-4-108C	365002432	4×	108 mm	F19.4	Φ11 mm	0.1 mm	C-mount	yes
MVL-MY-4-110	102201362	4×	110 ± 2 mm	F25.6	Φ11 mm	0.1 mm	C-mount	—
MVL-MY-5-108	365009035	5×	108 mm	F22.4	Φ11 mm	0.1 mm	C-mount	—
MVL-MY-6-63C	365009911	6×	63 ± 1 mm	F23.8	Ø 11 mm (2/3")	0.1 mm	C-mount	yes
MVL-MY-6-108C	365002750	6×	108 mm	F28.7	Φ11 mm	0.06 mm	C-mount	yes
MVL-MY-75-65C	365005164	7.5×	65 mm	—	2/3"	0.05mm	—	—
MVL-MY-8-63C	365003751	8×	63 ± 1 mm	F31.3	Φ11 mm	0.04 mm	C-mount	yes
MVL-MY-8-108	365002724	8×	108 mm	F38.3	Φ11 mm	0.05 mm	C-mount	—
MVL-MY-8-108C	365003653	8×	108 mm	F38.3	Φ11 mm	0.05 mm	C-mount	yes
MVL-MY-10-108C	365003543	10×	108 mm	F48	Φ11 mm	0.04 mm	C-mount	yes

How to choose

Besides magnification, watch depth of field: on telecentric lenses it is small and shrinks as magnification grows, so the object must sit within a narrow height band. Take coaxial illumination support from the table column rather than from the part number: it is usually marked by a C suffix, but there are versions without it that support illumination as well.
