Telecentric lenses for sensors up to 1/1.8″

A telecentric lens keeps magnification constant: a part does not "grow" as it comes closer to the camera and does not lean with perspective at the frame edges. For measurement this is decisive — with ordinary optics the same part measures differently at different heights. The compact range covers sensors up to 1/1.8″: magnification from 0.09× to 6×, working distances from 45 to 660 mm.

Price on requestAn engineer will confirm pricing and lead time in the first reply.

Find the right model

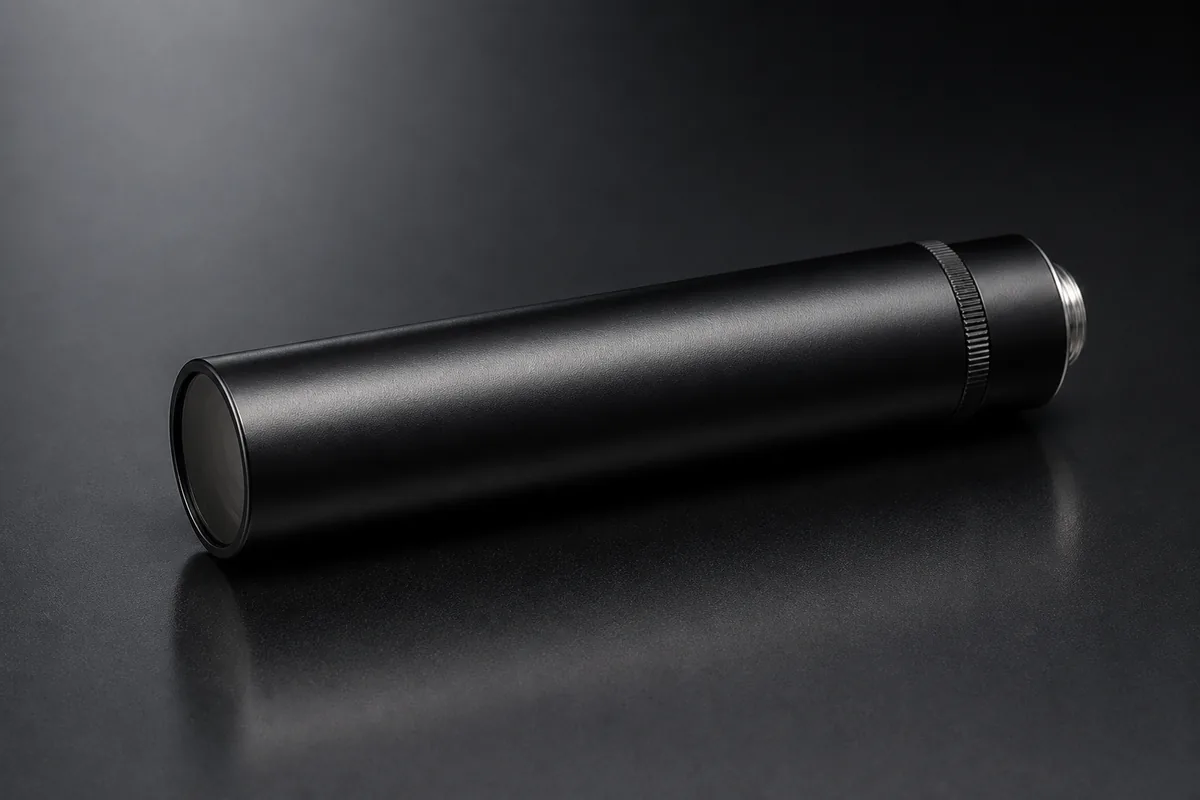

Hikrobot Telecentric lenses for sensors up to 1/1.8″

Specifications

Operating temperature

–10 °C to 50 °C (14 °F to 122 °F)

Part numbers and versions

Magnification up to 0.5×

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-HY-009-660	365008367	0.09×	660 mm	F8	Φ9.4 mm	79 mm	C-mount	—
MVL-HY-012-250	365005187	0.12×	250 mm	F12.2	Φ8 mm (0.3")	68 mm	C-mount	—
MVL-HY-03-110-MP	365003555	0.3×	110 mm	F13.4	Φ9 mm	11.9 mm	C-mount	—
MVL-HY-04-113	365004185	0.4×	113 mm	F13.4	Φ7.2 mm	6.7 mm	C-mount	—

Magnification 0.5–1×

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-HY-05-65	365001568	0.5×	65 mm	F6.5	Φ8 mm	2.1 mm	C-mount	—
MVL-HY-05-110C-V2	365008111	0.5×	110 mm	F11	Φ8 mm	3.5 mm	C-mount	yes
MVL-HY-05-110-V2	365008112	0.5×	110 mm	F11	Φ8 mm	3.5 mm	C-mount	—
MVL-HY-05-190	102201915	0.5×	190 ± 2 mm	F16.3	Φ8 mm	5.2 mm	C-mount	—
MVL-HY-05-225	102202013	0.5×	225 ± 3 mm	F9	Φ7.2 mm	2.9 mm	C-mount	—
MVL-HY-05-350C	365007994	0.5×	350 mm	F17.6	Φ8 mm	5.6 mm	C-mount	yes
MVL-HY-05-510C	365006080	0.5×	510 mm	—	1/1.8"	4.5 mm	—	—
MVL-HY-06-65C	365004950	0.6×	65 mm	—	1/2"	1.8mm	—	—
MVL-HY-07-70-V2	365007607	0.7×	70 mm	F22.1	Φ9 mm	3.6 mm	C-mount	—
MVL-HY-08-65	365003492	0.8×	65 mm	F11.9	Φ8 mm	1.5 mm	C-mount	—
MVL-HY-08-65C	365009196	0.8×	65 mm	F11.9	Φ8 mm	1.5 mm	C-mount	yes
MVL-HY-08-130	102201311	0.8×	130 ± 2 mm	F23.5	Φ8 mm	2.9 mm	C-mount	—
MVL-HY-08-130C	102201321	0.8×	130 ± 2 mm	F23.5	Φ8 mm	2.9 mm	C-mount	yes
MVL-HY-08-150C	102201333	0.8×	150 ± 3 mm	F27	Φ8 mm	3.3 mm	C-mount	yes
MVL-HY-08-150	365006723	0.8×	150 mm	F13.6	Φ8 mm	1.7 mm	C-mount	—

Magnification 1–3×

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-HY-1-65CN	365002763	1×	65 mm	F12.1	Φ8 mm	1 mm	C-mount	yes
MVL-HY-1-65N	365002983	1×	65 mm	F12.1	Φ8 mm	1 mm	C-mount	—
MVL-HY-1-110	102201312	1×	110 mm	F13.7	Φ8 mm	1.1 mm	C-mount	—
MVL-HY-1-113C	365003915	1×	113 mm	F13.7	Φ8 mm	1.1 mm	C-mount	yes
MVL-HY-1-150	365002477	1×	150 mm	F23.5	Φ8 mm	1.9 mm	C-mount	—
MVL-HY-1-180C	102201863	1×	180 ± 2 mm	F13.0	Φ8 mm	1.0 mm	C-mount	yes
MVL-HY-15-65	102201310	1.5×	65 ± 2 mm	F17.3	Φ8 mm	0.55 mm	C-mount	—
MVL-HY-15-65C	102201320	1.5×	65 ± 2 mm	F17.3	Φ8 mm	0.55 mm	C-mount	yes
MVL-HY-15-110	102201313	1.5×	110 ± 2 mm	F13.2	Φ8 mm	0.5 mm	C-mount	—
MVL-HY-15-110C	102201323	1.5×	110 ± 2 mm	F13.2	Φ8 mm	0.5 mm	C-mount	yes
MVL-HY-2-65C	365004992	2×	65 mm	—	1/2"	0.3mm	—	—
MVL-HY-2-110	365003169	2×	110 mm	F23.7	Φ8 mm	0.5 mm	C-mount	—
MVL-HY-2-110C	365003494	2×	110 mm	F23.7	Φ8 mm	0.5 mm	C-mount	yes
MVL-HY-2-150	365001966	2×	150 mm	F32.4	Φ8 mm	0.6 mm	C-mount	—
MVL-HY-2-250	102202575	2×	250 mm ± 2 mm	F40	Φ8 mm	1.0 mm	C-mount	—

Magnification 3× and above

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-HY-3-110	102201316	3×	110 ± 2 mm	F34	Φ8 mm	0.55 mm	C-mount	—
MVL-HY-3-110C	102201878	3×	110 ± 2 mm	F34	Φ8 mm	0.55 mm	C-mount	yes
MVL-HY-4-110	102201317	4×	110 ± 2 mm	F36.3	Φ8 mm	0.2 mm	C-mount	—
MVL-HY-4-110C	102201879	4×	110 ± 2 mm	F36.3	Φ8 mm	0.2 mm	C-mount	yes
MVL-HY-4-200C	365004630	4×	200 mm	F64.6	Φ8 mm	0.3 mm	C-mount	yes
MVL-HY-6-45C	365004628	6×	45 mm	F35	Φ8 mm	0.1 mm	C-mount	yes

How to choose

Selection starts from part size: magnification = sensor size / field of view. A 20 mm part on a 1/2″ sensor (6.4 mm) needs 0.32×. The front lens diameter of a telecentric must be at least as large as the field of view — a physical limit that makes large fields mean large, heavy lenses.
