Telecentric lenses for 1″–2″ sensors

Telecentric lenses for large 1″, 1.1″, 1.2″ and 4/3″ sensors: more pixels across the same field of view, which means smaller detectable defects and more precise measurement. Magnification from 0.128× to 10×, working distances from 60 to 1115 mm.

Price on requestAn engineer will confirm pricing and lead time in the first reply.

Find the right model

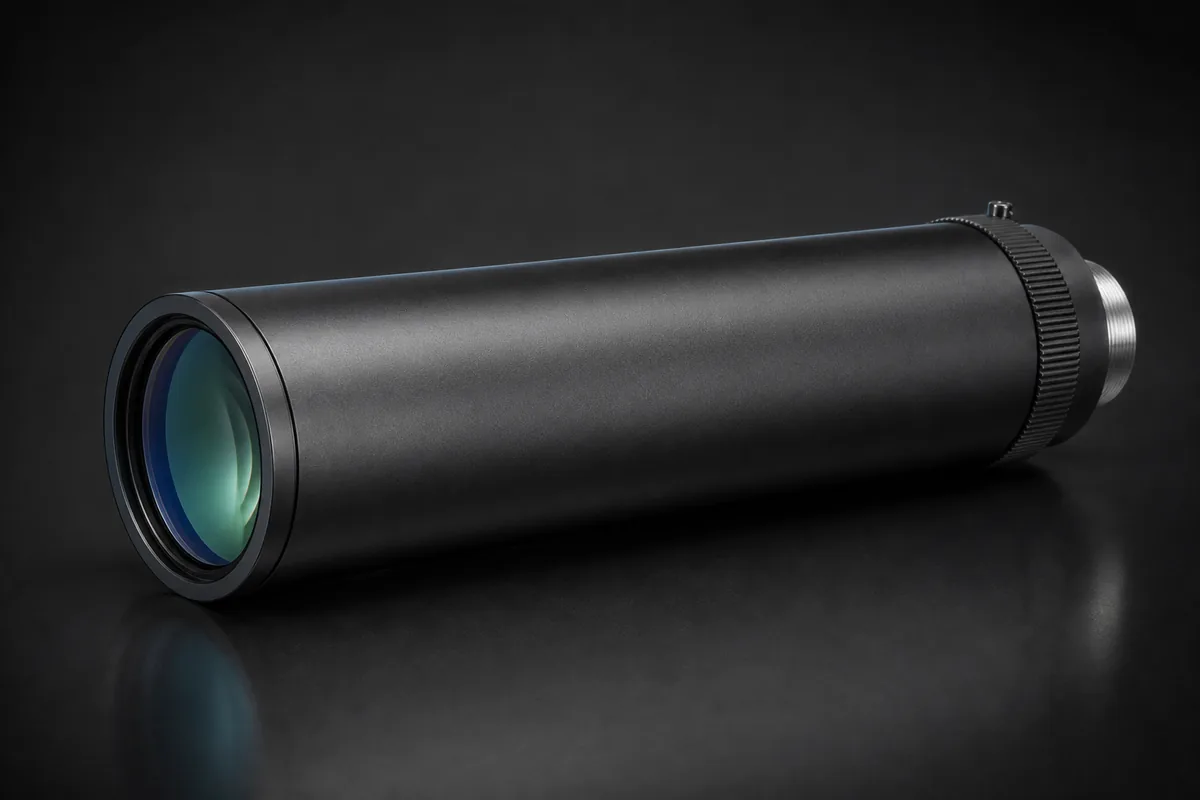

Hikrobot Telecentric lenses for 1″–2″ sensors

Specifications

Operating temperature

–10 °C to 50 °C (14 °F to 122 °F)

Part numbers and versions

Magnification up to 0.5×

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-KS-0128-1115	365009407	0.128×	1115 mm	F6.0	Φ18.4 mm	29.3 mm	C-mount	—
MVL-KS-015-640	365008169	0.15×	640 mm	F8	Φ18.4 mm	28.4 mm	C-mount	—
MVL-KY-0175-640	365002340	0.175×	640 mm	F10.9	Φ16 mm	28.5 mm	C-mount	—
MVL-KY-018-630	365002706	0.18×	630 mm	F5.6	Φ16 mm	13.8 mm	C-mount	—
MVL-KY-02-550	102202817	0.2×	550 mm	F13.6	Φ16 mm	27.2 mm	C-mount	—
MVL-KS-02-604	365010007	0.2×	604 mm	F7.1	Ø 19.2 mm (1.2")	14.2 mm	C-mount	—
MVL-KY-022-380	365004744	0.22×	380 mm	F12.3	Φ16 mm	20.3 mm	C-mount	—
MVL-KY-022-530	365002948	0.22×	530 mm	F10.9	Φ16 mm	18 mm	C-mount	—
MVL-KT-023-170	365007821	0.23×	170 mm ± 3 mm	F8	Φ18.0 mm	± 6 mm @ F8	C-mount	—
MVL-KT-023-220	365001826	0.23×	220 ± 3 mm	F8	Φ18 mm	± 6 mm @F8	C-mount	—
MVL-KY-024-760	365008366	0.24×	760 mm	F11.2	Φ16 mm	15.6 mm	C-mount	—
MVL-KT-0246-220	365003390	0.246×	220 ± 3 mm	F8	Φ18 mm	± 5.3 mm @F8	C-mount	—
MVL-KS-025-310	365010872	0.25×	310 mm	F4.9	Ø 19.2 mm (1.2")	6.3 mm	C-mount	—
MVL-KY-025-415	365006548	0.25×	415 mm	F24.6	Φ22.5 mm	31.5 mm	C-mount	—
MVL-KS-025-423	365009131	0.25×	423 mm	F8.0	Φ19.2 mm	10.2 mm	C-mount	—
MVL-KY-025-465	365008689	0.25×	465 mm	F10	Φ16 mm	12.8 mm	C-mount	—
MVL-KT-0275-220	365001957	0.275×	220 ± 3 mm	F8	Φ18 mm	± 4.2 mm @F8	C-mount	—
MVL-KY-028-680	365008224	0.28×	680 mm	F11.8	Φ16 mm	12 mm	C-mount	—
MVL-KT-03-250	365006815	0.3×	250 mm	—	1"	±3.5 mm@F8	—	—
MVL-KY-03-340	365002546	0.3×	340 mm	F14.1	Φ16 mm	12.5 mm	C-mount	—
MVL-KY-03-360	365005222	0.3×	360 mm	—	1"	11.5mm	—	—
MVL-KS-03-534	365008223	0.3×	534 mm	F7	Φ18.4 mm	6.2 mm	C-mount	—
MVL-KY-03-650	365002290	0.3×	650 mm	F10.5	Φ18 mm	10.5 mm	C-mount	—
MVL-KT-032-220	365003352	0.32×	220 ± 3 mm	F12.1	Φ16 mm	± 4.7 mm @F12.1	C-mount	—
MVL-KT-0345-220	365001493	0.345×	220 mm	F8	Φ18.0 mm	± 2.7 mm @F8	C-mount	—
MVL-KT-035-160	365008924	0.35×	160 mm ± 2 mm	F7	Φ16 mm	± 2.3 mm @F7	C-mount	—
MVL-KS-035-232	365009944	0.35×	232 mm	F5.6	Ø 19.2 mm (1.2")	3.7 mm	C-mount	—
MVL-KS-035-473	365007912	0.35×	473 mm	F7.0	Φ18.4 mm	4.6 mm	C-mount	—
MVL-KY-035-560	365009943	0.35×	560 mm	F12.5	Ø 18 mm (1.1")	8.2 mm	C-mount	—
MVL-KS-035-647	365010797	0.35×	647 mm	F8.7	Ø 18.2 mm (1.1")	5.7 mm	C-mount	—
MVL-KS-035-733	365008457	0.35×	733 mm	F8	Φ18.4 mm	5.2 mm	C-mount	—
MVL-KY-036-125	365005298	0.36×	125 mm	—	1"	9.2mm	—	—
MVL-KT-036-291	365009204	0.36×	291 mm	F7.5	Φ16 mm	± 2.3 mm @ F7.5	C-mount	—
MVL-KT-0367-220C	365006588	0.367×	220 mm ± 3 mm	F8	Φ18 mm	± 2.4 mm @ F8	C-mount	yes
MVL-KT10-04-110	365006229	0.4×	110 mm	—	1"	4 mm	—	—
MVL-KT-04-196	365001390	0.4×	196 ± 3 mm	F8	Φ16 mm	± 2 mm @F8	C-mount	—
MVL-KT-04-200	365008137	0.4×	200 mm	F9	Φ18 mm	4.5 mm	C-mount	—
MVL-KS-04-227	365009995	0.4×	227 mm	F6.9	Ø 19.2 mm (1.2")	3.5 mm	C-mount	—
MVL-KY-04-300	365009890	0.4×	300 mm	F15	Ø 22.5 mm (4/3")	7.5 mm	C-mount	—
MVL-KY-04-550	365010064	0.4×	550 mm	F13.2	Ø 18 mm (1.1")	6.6 mm	C-mount	—
MVL-KS-04-670	365008757	0.4×	670 mm	F8	Φ18.4 mm	4.0 mm	C-mount	—
MVL-KT10-042-285	365009203	0.42×	285 mm ± 2 mm	F7	Φ16 mm	± 1.6 mm @ F7	C-mount	—
MVL-KT-046-220	365002420	0.46×	220 ± 3 mm	F11.6	Φ16 mm	± 2.2 mm @F11.6	C-mount	—

Magnification 0.5–1×

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-KT-05-110-V3	365004651	0.5×	110 mm ± 2 mm	F7	Φ18.0 mm	± 1.1 mm @ F7	C-mount	—
MVL-KT-05-110C-V3	365004390	0.5×	110 mm	F7	Φ18.0 mm	± 1.1 mm @F7	C-mount	yes
MVL-KT-05-220	365005156	0.5×	220 mm	—	1.1"	±1.1 mm@F7	—	—
MVL-KT10-05-220	365008028	0.5×	220 mm ± 3 mm	F8	Φ16 mm	± 1.3 mm @ F8	C-mount	—
MVL-KY-05-240	102201918	0.5×	240 mm	F12.5	Φ16 mm	4 mm	C-mount	—
MVL-KY-05-360	365004572	0.5×	360 mm	F38.3	Φ18.4 mm	12.3 mm	C-mount	—
MVL-KS-05-363	365009662	0.5×	363 mm	F7.5	Ø 18.4 mm (1.1")	2.4 mm	C-mount	—
MVL-KT-055-190	365004697	0.55×	190 mm	F10.1	Φ18.0 mm	± 1.3 mm @F10.1	C-mount	—
MVL-KT-055-220	365003577	0.55×	220 ± 3 mm	F10.1	Φ18 mm	± 1.3 mm @F10.1	C-mount	—
MVL-KT-06-110-V3	365006180	0.6×	110 mm ± 2 mm	F7	Φ18.4 mm	± 0.8 mm @ F7	C-mount	—
MVL-KY-06-220	365006667	0.6×	220 mm	F12.9	Φ16 mm	2.9 mm	C-mount	—
MVL-KT-063-110	365004127	0.63×	110 mm	F7	Φ18.4 mm	± 0.7 mm @F7	C-mount	—
MVL-KY-065-360	365008969	0.65×	360 mm	F36.3	Φ22.5 mm	6.9 mm	C-mount	—
MVL-KT-066-110	365003225	0.66×	110 mm	F7	Φ18 mm	± 0.6 mm @F7	C-mount	—
MVL-KT-069-192	365008925	0.69×	192 mm	F9	Φ16.6 mm	± 0.75 mm @ F9	C-mount	—
MVL-KY-07-135	365003128	0.7×	135 mm	F15.5	Φ16 mm	2.5 mm	C-mount	—
MVL-KS-07-287	365008824	0.7×	287 mm	F8	Φ18.4 mm	1.3 mm	C-mount	—
MVL-KY-07-300	365008756	0.7×	300 mm	F17.9	Φ18 mm	2.9 mm	C-mount	—
MVL-KT-08-110-V3	365007327	0.8×	110 mm ± 2 mm	F6.6	Φ18 mm	± 0.4 mm @ F6.6	C-mount	—
MVL-KT-08-110C-V3	365007326	0.8×	110 mm ± 2 mm	F6.6	Φ18 mm	± 0.4 mm @ F6.6	C-mount	yes
MVL-KT-08-180	365006228	0.8×	180 mm	—	1.1"	1 mm	—	—
MVL-KT-08-180C	365009213	0.8×	180 mm	F8	Φ18.0 mm	1 mm	C-mount	yes
MVL-KY-08-200	365003415	0.8×	200 mm	F14	Φ16 mm	1.6 mm	C-mount	—
MVL-KT-093-120-V3	365007894	0.93×	120 mm	F11	Φ18.2 mm	1.0 mm	C-mount	—

Magnification 1–3×

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-KT-1-110-V3	365007325	1×	110 mm ± 2 mm	F7	Φ18.4 mm	± 0.3 mm @ F7	C-mount	—
MVL-KT-1-110C-V3	365004653	1×	110 ± 2 mm	F7	Φ18.4 mm	± 0.3 mm @ F7	C-mount	yes
MVL-KT-1-180C	365011064	1×	180 mm	F8	Ø 18.0 mm (1.1")	0.6 mm	C-mount	—
MVL-KS-1-221	365009773	1×	221 mm	F9.0	Ø 18.4 mm (1.1")	0.7 mm	C-mount	—
MVL-KY-1-370*	365006537	1×	370 mm	F25	Φ18 mm	2 mm	C-mount	—
MVL-KS-1-375	365008886	1×	375 mm	F9.5	Φ18.4 mm	0.7 mm	C-mount	—
MVL-KT-12-102	365007991	1.2×	102 mm	F9	Φ18 mm	± 0.25 mm @ F9	C-mount	—
MVL-KT-15-110	365001928	1.5×	110 ± 2 mm	F10	Φ18 mm	± 0.18 mm @F10	C-mount	—
MVL-KT-2-110	365001832	2×	110 ± 2 mm	F13.5	Φ18 mm	± 0.14 mm @F13.5	C-mount	—
MVL-KT-2-110C	365004900	2×	110 mm	—	1.1"	±0.14mm@F13.5	—	—
MVL-KY-2-210C	365007301	2×	210 mm	F8	Φ16 mm	0.4 mm	C-mount	yes

Magnification 3× and above

Part number	PN	Magnification	Working distance	Aperture	Format	Depth of field	Mount	Coaxial light
MVL-KT-3-110	102202994	3×	110 ± 2 mm	F20.1	Φ18 mm	± 0.09 mm @F20.1	C-mount	—
MVL-KT-3-110C	365004539	3×	110 ± 2 mm	F20.1	Φ18.0 mm	± 0.09 mm @F20.1	C-mount	yes
MVL-KT-4-60C-G	365009241	4×	60 mm	F9.9 to F32	Φ20 mm	0.05 mm to 0.16 mm	C-mount	yes
MVL-KT-4-100C	365003464	4×	100 ± 2 mm	F26.5	Φ18 mm	± 0.07 mm @F26.5	C-mount	yes
MVL-KT-4-100	365004140	4×	100 ± 2 mm	F26.5	Φ18 mm	± 0.07 mm @F26.5	C-mount	—
MVL-KT-4-108	365005455	4×	108 mm	—	1.1"	±0.05 mm @F20	—	—
MVL-KT-4-108C	365005822	4×	108 mm	—	1.1"	±0.05 mm @F20	—	—
MVL-KT-6-108	365008166	6×	108 mm ± 2 mm	F29.7	Φ18 mm	± 0.03 mm @ F29.7	C-mount	—
MVL-KT-8-108C	365004629	8×	108 ± 2 mm	F40.4	Φ18 mm	± 0.025 mm @F40.4	C-mount	yes
MVL-KT-10-108C	365006292	10×	108 mm	—	1.1"	0.04 mm	—	—

How to choose

The object-side sampling pitch is simple: pixel size / magnification. A 3.45 μm pixel at 0.5× gives 6.9 μm per object pixel. That is not the system resolution: the lens has its own resolution figure (telecentric datasheets state it, for example 9.4 μm), the worse of the two governs, and real measurement accuracy is coarser still — it depends on the algorithm and lighting stability.
