Board level area camera · CB Series

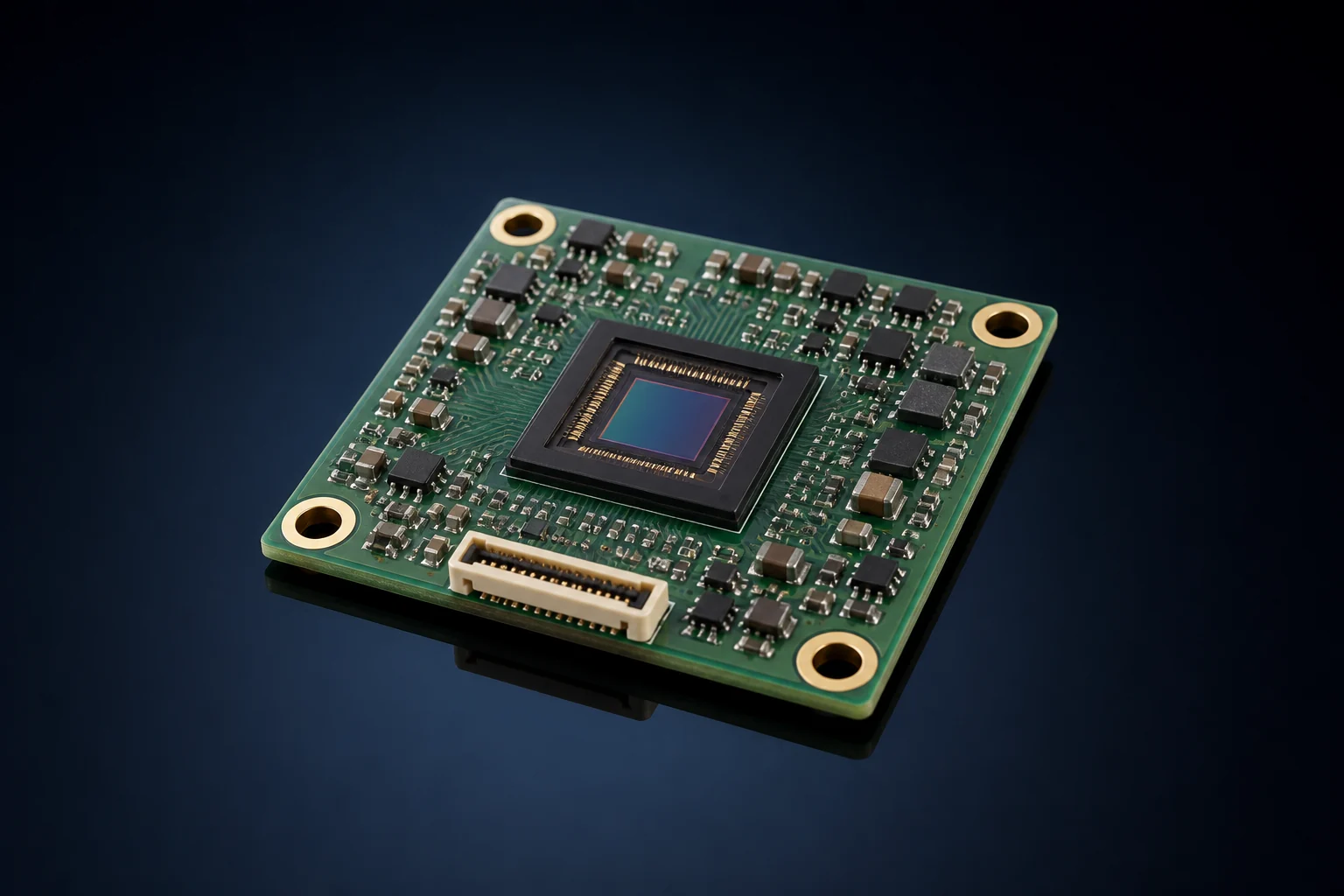

Hikrobot MV-CB013-A0UM-C
1280 × 1024201 fps @1280 × 1024USB3.0
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Product type | 1.3 MP USB 3.0 Board Level Camera |
| Sensor type | CMOS, global shutter |
| Sensor format | 1/2″ |
| Resolution | 1280 × 1024 |
| Pixel size | 4.8 μm × 4.8 μm |
| Maximum frame rate | 201 fps @1280 × 1024 |
| Mono color | Mono |
| Dynamic range | 53 dB |
| Exposure time | 9 μs to 10 sec |
| Gain | 0 dB to 16 dB |
| Data interface | USB3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Lens mount | C-mount |
| Power supply | USB3.0 power supply |
| Power consumption | Typ. 1.6 W @ 5 VDC (USB3.0 provides power supply) |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Dimensions | 35 mm × 35 mm × 8.6 mm (1.4″ × 1.4″ × 0.3″) |
| Weight | Approx. 30 g (0.07 lb.) |
| Certification | CE-EMC, KC |
| Compatibility | USB3 Vision, GenICam |
Cables and accessories for this model
Compatibility per manufacturer data.
- Data cables
- USB 3.0
- I/O & power cables
- CB board-level IO
