Line scan camera · CL series

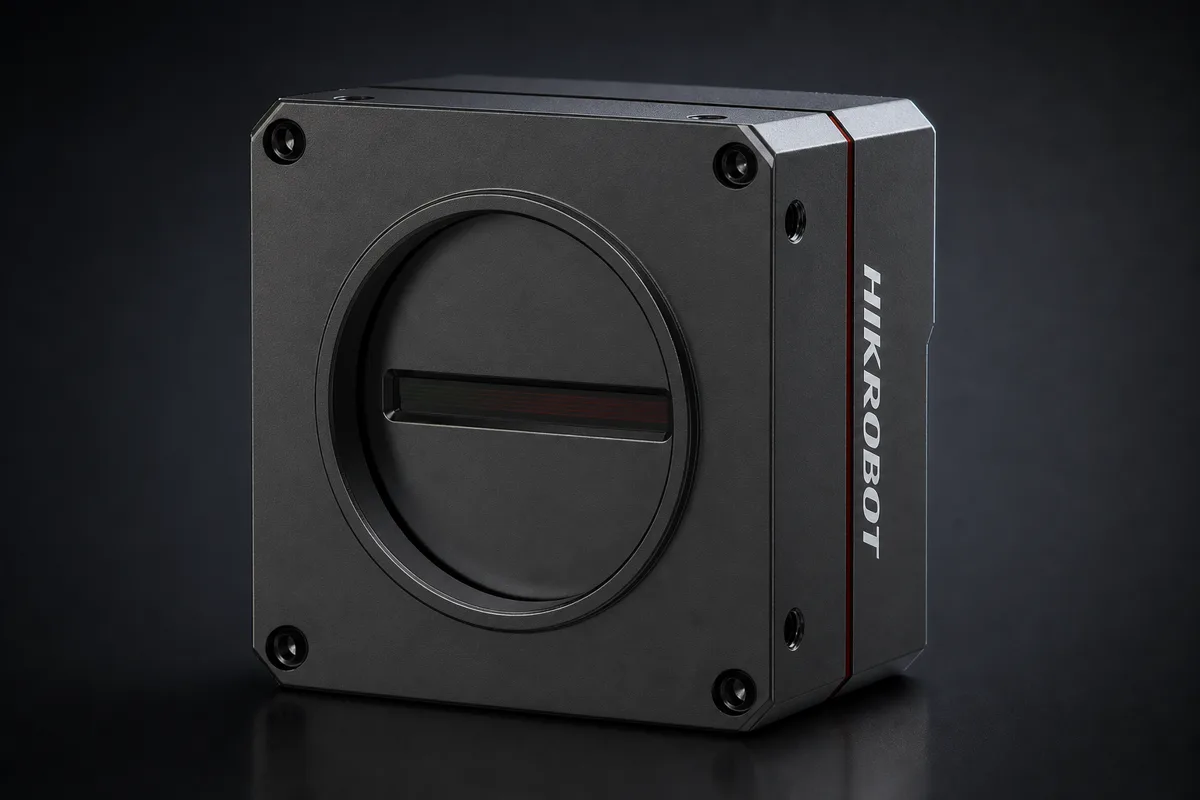

Hikrobot MV-CL024-91GC
2048 × 3 pxGigabit Ethernet (1000 Mbit/s)IP40
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS |
| Resolution | 2048 × 3 px |
| Pixel size | 7 × 7 μm |
| Mono/color | Color |
| Exposure time | 3 μs to 10 ms |
| SNR | 44.7 dB |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 4 configurable input/output lines; single-ended/differential supported |
| Lens mount | M42*1.0 |
| Power supply | 12 to 24 VDC |
| Power consumption | 5.7 W |
| Ingress protection | IP40 |
| Operating temperature | -20 to 55 °C |
| Storage temperature | -30 to 80 °C |
| Humidity | 5 to 90 % RH |
| Dimensions | 62 × 62 × 40.5 mm |
| Weight | 256 g |
| Dynamic range | 68 dB |
| Flange back length | 12 mm |
| Max line rate (high-bandwidth, bayer rg 8/mono 8) | 70 kHz |
| Max line rate (standard, mono 8/bayer rg 8) | 58 kHz |
| Pixel format | Mono 8, Bayer RG 8/10/12, RGB 8, BGR 8 |
