Line scan camera · CL162 series

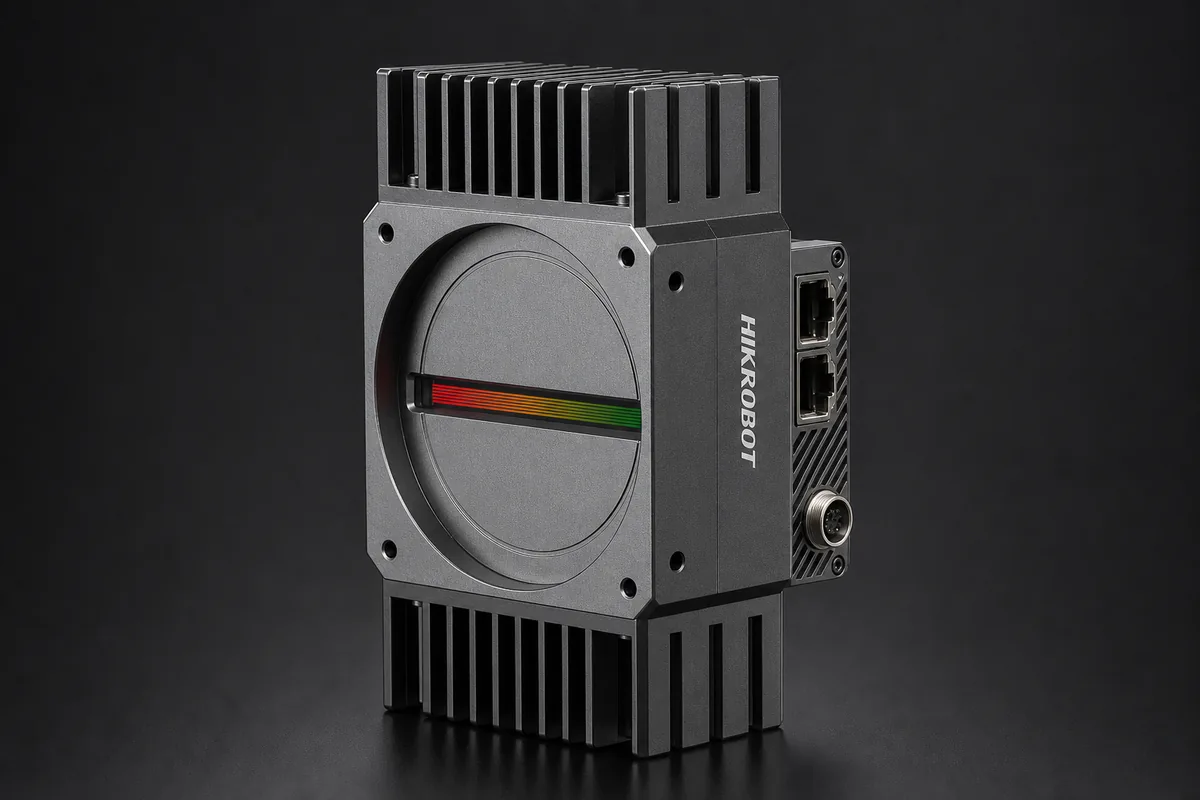

Hikrobot MV-CL162-91F2M
16384 × 22LC fiber connectorIP40
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS |
| Resolution | 16384 × 2 |
| Pixel size | 3.5 × 3.5 μm |
| Mono color | Mono |
| Exposure time | 3 μs to 10 ms |
| Gain | 1.0 × |
| SNR | 37 dB |
| Data interface | 2LC fiber connector |
| Digital I/O | Configurable input/output × 4 (Line 0/1/3/4) |
| Lens mount | M72*0.75 |
| Power supply | 12 to 24 VDC |
| Power consumption | 10.6 W @ 24 VDC |
| Ingress protection | IP40 |
| Operating temperature | -20 to 50 °C |
| Humidity | 5 to 90 % RH |
| Dimensions | 132 × 76 × 57.4 mm |
| Weight | 600 g |
| Image mode | 1-Line, 2-TDI |
| Max line rate | 73.2 kHz |
| Transmission mode | 1 Link, 2 Link |
| Dynamic range | 56.7 dB |
| Pixel format | Mono 8/10/12 |
