Line scan camera · CL166 series

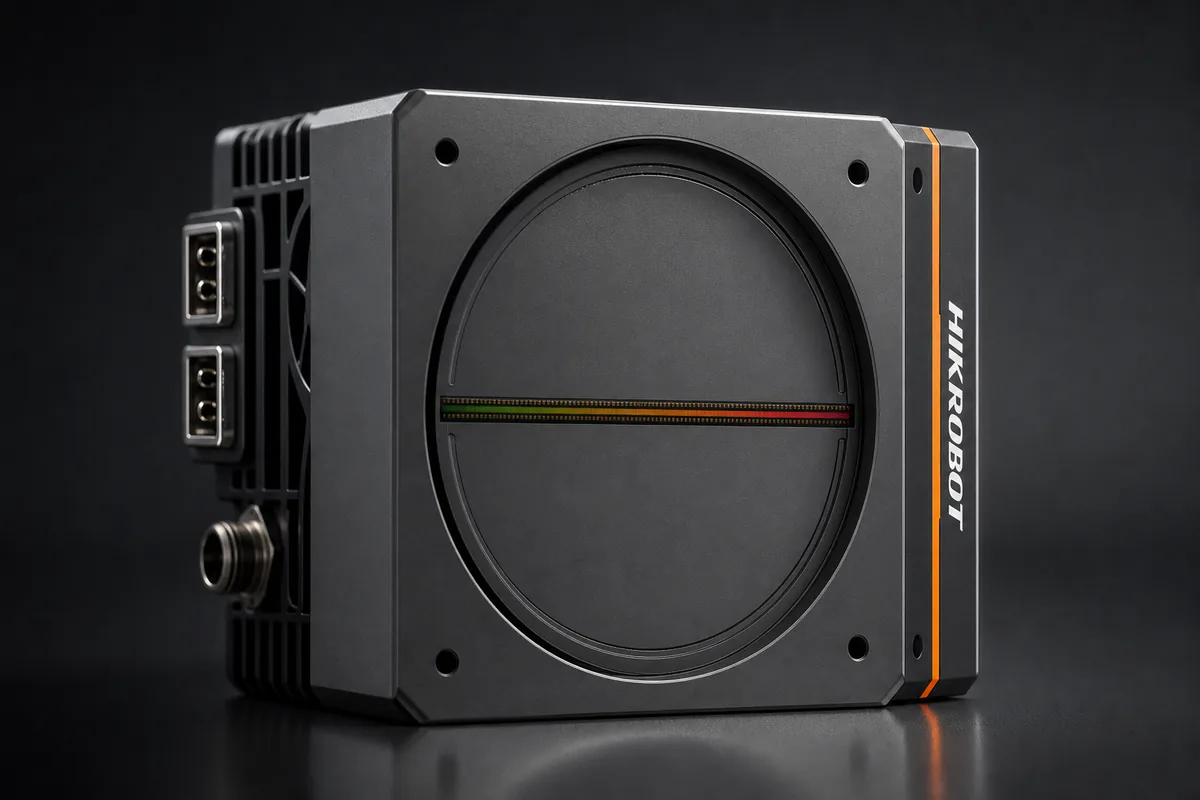

Hikrobot MV-CL166-91F2C
16384 × 12 px2LC fiber connectorIP40
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS |
| Resolution | 16384 × 12 px |
| Pixel size | 5 × 5 μm |
| Mono color | Color |
| Exposure time | 3 μs to 10 ms |
| SNR | 41.4 dB |
| Data interface | 2LC fiber connector |
| Digital I/O | Configurable input/output × 4; single-ended/differential supported |
| Lens mount | M90*1.0 |
| Power supply | 24 VDC |
| Power consumption | 22.5 W |
| Ingress protection | IP40 |
| Operating temperature | -20 to 55 °C |
| Humidity | 5 to 90 % RH |
| Dimensions | 99 × 99 × 83.4 mm |
| Weight | 923 g |
| Compatibility | XoFLink, GenICam |
| Sensor | 16384 × 12 RGB true color CMOS |
| Image mode | 1-Line, 2-TDI, 3-TDI, 4-TDI |
| Max line rate | 47.3 kHz |
| Max line rate 2 tdi | 45.3 kHz |
| Max line rate 3 tdi | 30.6 kHz |
| Max line rate 4 tdi | 23.1 kHz |
| Transmission mode | 1 Link, 2 Link |
| Dynamic range | 69.3 dB |
| Pixel format | RGB 8, BGR 8 |
| Flange back length | 12 mm |
| Cooling mode | Cooling fan |
| Flange focal length | 12 mm |
