Vision sensor · SC2000A series

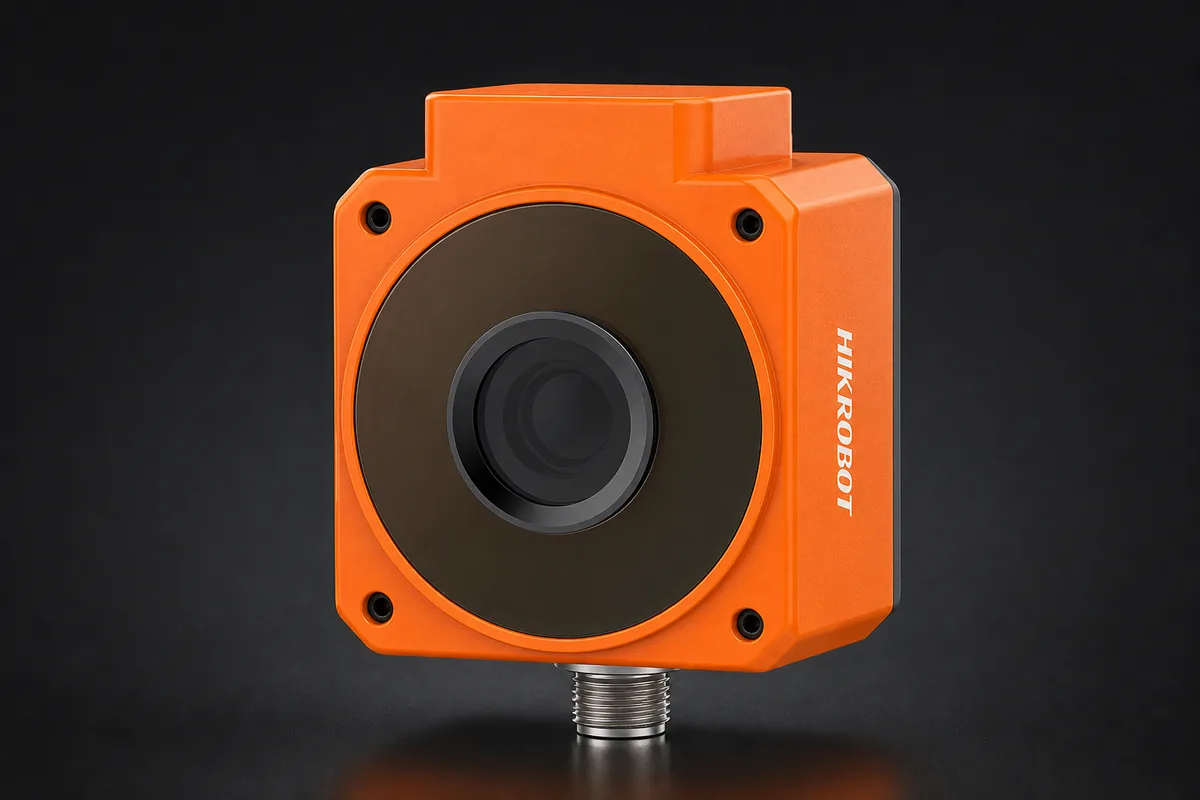

Hikrobot MV-SC2005AM-02WBN V3.0
800 × 600 pxCMOS global-shutter sensor100 fpsFast Ethernet, RS-4852.5 mm
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, global shutter |
| Sensor model | CMOS global-shutter sensor |
| Sensor format | 1/3.6″ |
| Resolution | 800 × 600 px |
| Pixel size | 4.8 × 4.8 μm |
| Maximum frame rate | 100 fps |
| Mono color | Mono |
| Data interface | Fast Ethernet, RS-485 |
| Focal length | 2.5 mm |
| Working distance | 100 ± 5 mm |
| Light source | Integrated red/blue/white light |
| Ingress protection | IP65 |
| Operating temperature | -10 to 50 °C |
| Dimensions | 68 × 60 × 40.8 mm |
| Weight | Approx. 200 g |
| Field of view | 170 × 130 at 100 mm |
| Symbologies | Data Matrix ECC200 (DM12/DM14) |
| Power | 24 VDC; max. 18 W with illumination, approx. 3 W without illumination |
