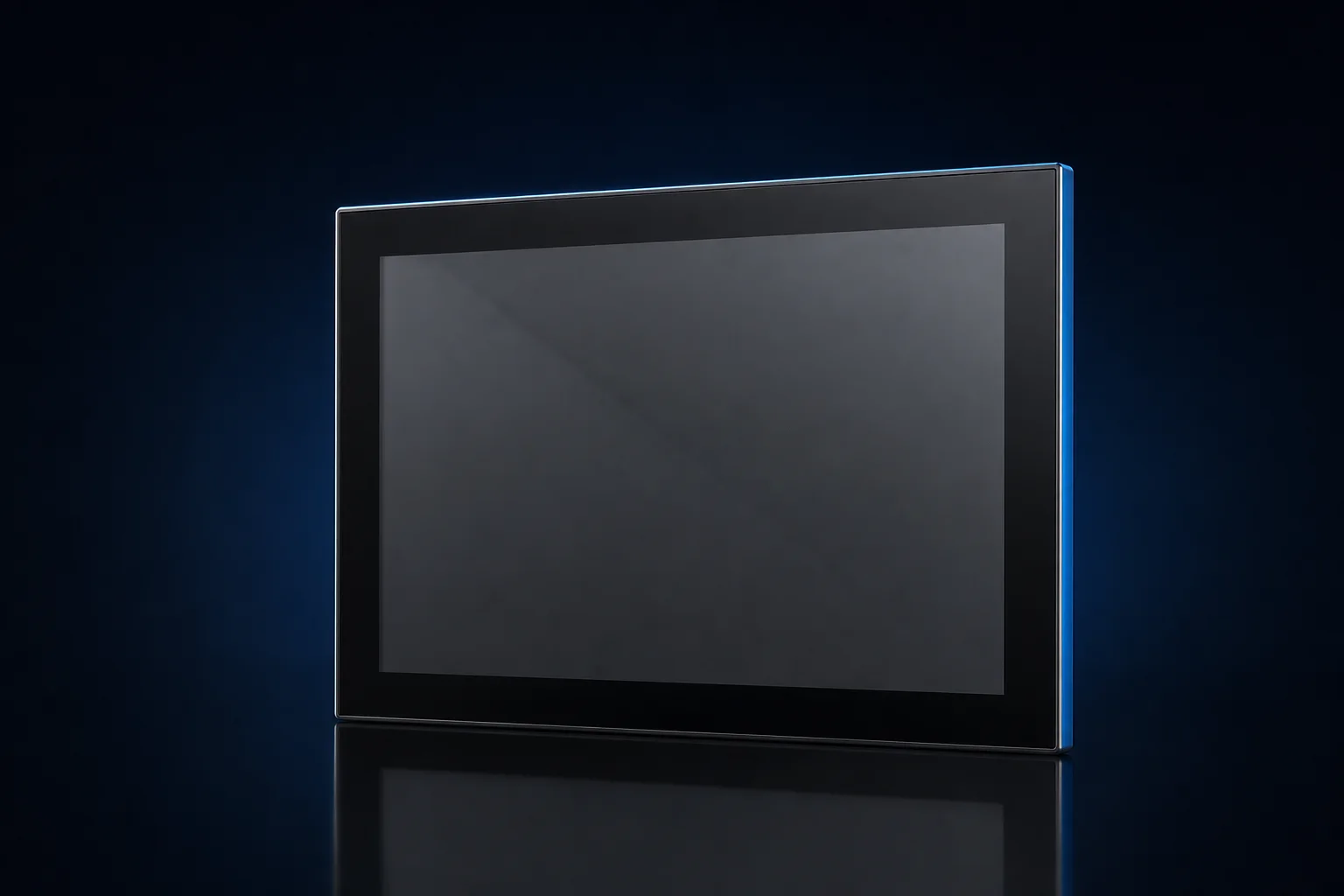

Vision panel PC · VT2000 series
Hikrobot MV-VT2000-128G40-NN
1280 × 800 px
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Resolution | 1280 × 800 px |
| Network interface | GigE × 4 |
| USB interface | USB 3.0 × 2; USB 2.0 × 2 |
| Serial port | RS-232 × 2, supports switching to RS-485 and RS-422 |
| Digital I/O | Opto-isolated input × 7, opto-isolated output × 7 |
| Screen size | 10.1″ |
| Screen resolution | 1280 × 800 px |
| Touch | multi-point capacitive touch, up to 10 points |
| Touch type | Multi-point capacitive touch screen; 10-point touch |
| Viewing angle | 85°(R)/85°(L)/85°(B)/85°(T) degrees |
| Operating system | Unactivated Windows 10 2021H2 |
| Memory | 8 GB |
| Storage | 128 GB SSD / 128 GB SSD + 2 TB HDD |
| Power supply | 24 VDC |
| Power consumption | Typ. 30 W |
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | −30 °C to 70 °C |
| Humidity | 20% RH to 80% RH |
| Dimensions | 255 × 170 × 63 mm |
| Weight | Approx. 2 kg |
| Certification | CE, KC |
| CPU | Intel® Celeron® CPU J series |
| Display interface | HDMI ×1 (1920 × 1080 @ 60 Hz) |
| Backlight lifetime | ≥ 30000 hrs |
| Contrast ratio | 800:1 |
| Brightness | 350 cd/m2 |
| Surface hardness | 6 H |
