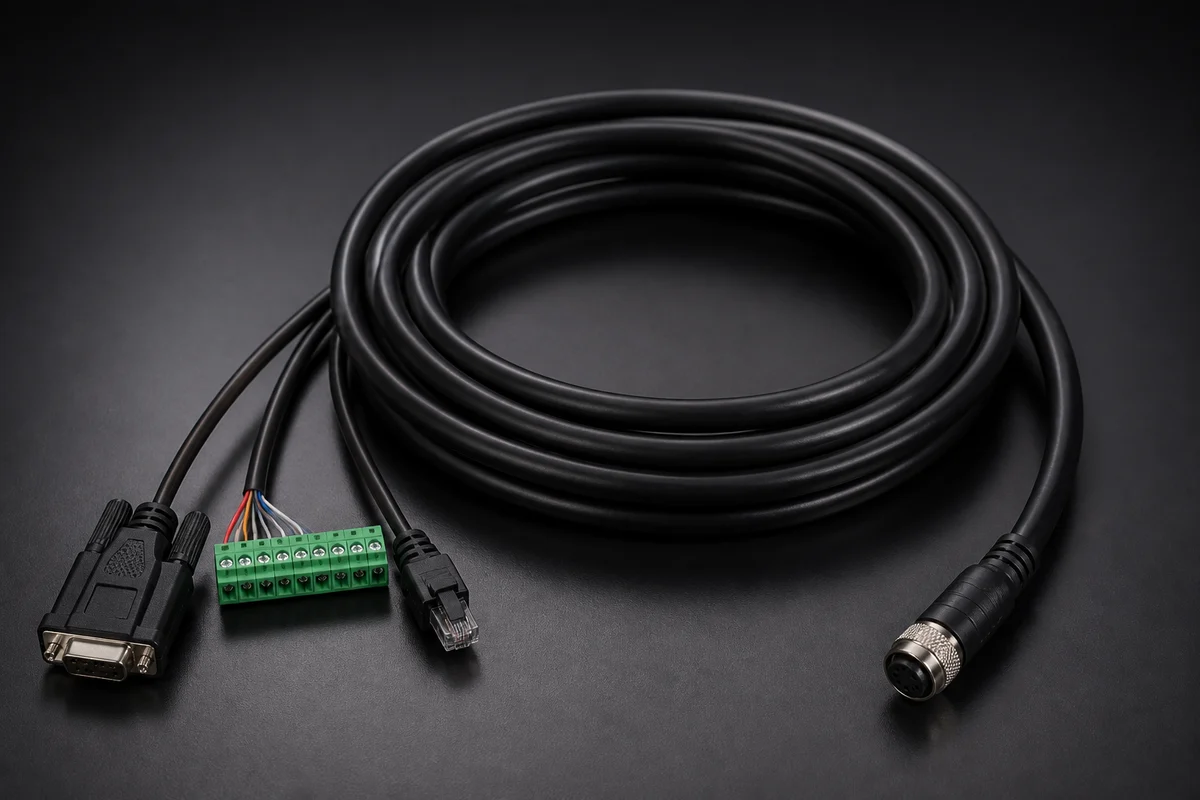

Data cables for ID code readers (MV-IDA-PE)

ID data cables

Hybrid cables for Hikrobot fixed-mount ID code readers. Depending on the reader interface, the reader end uses an M12 A-code 17-pin connector or a DB15 connector; the other end provides RJ45, DB9, USB and/or terminal connections plus open power/IO leads. Breakout configurations vary; cross-check the table against your wiring diagram.

Price on requestAn engineer will confirm pricing and lead time in the first reply.
Find the right model
Hikrobot Data cables for ID code readers (MV-IDA-PE)

Part numbers and versions

M12 17-pin reader connector — Standard (ST)

Part numberPNConnectorsLength
MV-IDA-PE-M12A17pF-opensU2DB9-ST-2m310101295M12 A-coded 17-pin male → TB3B8P + USB 2.0 + DB9 female2 m
MV-IDAPE-M12A17F-U2DC-ST-2m310102959M12 A-coded 17-pin male → USB 2.0 + DC2 m
MV-IDA-PE-M12A17pF-openRJ45DB9-ST-3m310101292M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female3 m
MV-IDA-PE-M12A17pF-openRJ45FDB9-ST-3m310101871M12 A-coded 17-pin male → TB3B8P + RJ45 female + DB9 female3 m
MV-IDA-PE-M12A17pFUP-openRJ45DB9-ST-3m310101869M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female (upward-facing connector)3 m
MV-IDA-PE-M12A17pF-opensRJ45DB9-ST-5m310101293M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female5 m
MV-IDA-PE-M12A17pFUP-openRJ45DB9-ST-5m310101877M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female (upward-facing connector)5 m
MV-IDA-PE-M12A17pF-openRJ45DB9-ST-7m310101873M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female7 m
MV-IDA-PE-M12A17pF-opensRJ45DB9-ST-10m310101294M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female10 m
MV-IDA-PE-M12A17pFUP-openRJ45DB9-ST-10m310101878M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female (upward-facing connector)10 m
MV-IDA-PE-M12A17pF-opensRJ45DB9-ST-15m310101310M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female15 m

M12 17-pin reader connector — High-flex (HF)

Part numberPNConnectorsLength
MV-IDA-PE-M12A17pF-opensU2DB9-HF-2m310101297M12 A-coded 17-pin male → TB3B8P + USB 2.0 + DB9 female2 m
MV-IDA-PE-M12A17pF-openRJ45FDB9-HF-3m310101872M12 A-coded 17-pin male → TB3B8P + RJ45 female + DB9 female (upward-facing connector)3 m
MV-IDA-PE-M12A17pF-opensRJ45DB9-HF-3m310101296M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female3 m
MV-IDA-PE-M12A17pFUP-openRJ45DB9-HF-3m310101870M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female (upward-facing connector)3 m
MV-IDAPE-M12A17F-openRJ45DB9M-HF-5m310102637M12 A-coded 17-pin male → TB3B8P + RJ45 male + DB9 female5 m
MV-IDA-PE-M12A17pF-openRJ45DB9-HF-7m310101874M12 A-coded 17-pin male → 8-pin terminal + RJ45 male + DB9 female7 m
MV-IDA-PE-M12A17pF-openRJ45DB9-HF-10m310101875M12 A-coded 17-pin male → 8-pin terminal + RJ45 male + DB9 female10 m
MV-IDA-PE-M12A17pF-opensRJ45DB9-HF-15m310101307M12 A-coded 17-pin male → 8-pin terminal + RJ45 male + DB9 female15 m

M12 17-pin reader connector — Super-flex (SF)

Part numberPNConnectorsLength
MV-IDA-PE-M12A17pF-openRJ45DB9-SF-5m310101876M12 A-coded 17-pin male → 8-pin terminal + RJ45 male + DB9 female5 m

DB15 reader connector (early series) — Standard (ST)

Part numberPNConnectorsLength
MV-IDA-PE-HDB15-USB-ST-2m310102102DB15 male → USB 2.0 Type-A male2 m
MV-IDAPE-DB15M-USB--ST-2m310102616DB15 male → USB2 m
MV-IDAPE-DB15M-USBDB9FOPEN--ST-2m310102617DB15 male → USB + DB9 female + open leads2 m
MV-IDA-PE-HDB15-USBDB9Open-ST-2.5m310102104DB15 male → TB3B6P + DB9 (DC jack) + USB 2.0 Type-A male2.5 m
MV-IDA-PE-HDB15-USBRJ45DB9Open-ST-2.5m310102103DB15 male → TB3B6P + DB9 female (DC jack) + RJ45 male + USB Type-A male2.5 m
MV-IDAPE-DB15M-DB9FRJ45OPEN-ST-3m310102618DB15 male → DB9 female + RJ45 + open leads3 m
MV-IDA-PE-HDB15-RJ45DB9Open-ST-3.5m310102105DB15 male → TB3B6P + DB9 female (DC jack) + RJ45 male3.5 m
MV-IDA-PE-HDB15-RJ45DB9Open-ST-3.5m101525618DB15 male → TB3B6P + DB9 female (DC jack) + RJ45 male3.5 m
MV-IDA-PE-HDB15-RJ45FDB9Open-ST-3.5m310102107DB15 male → TB3B6P + DB9 female (DC jack) + RJ45 female3.5 m
MV-IDA-PE-HDB15-RJ45DB9Open-ST-5m310102108DB15 male → TB3B6P + DB9 female (DC jack) + RJ45 male5 m
MV-IDAPE-DB15M-DB9FRJ45OPEN-ST-5m310102619DB15 male → DB9 female + RJ45 + open leads5 m
MV-IDAPE-DB15M-DB9FRJ45OPEN-ST-7m310102620DB15 male → DB9 female + RJ45 + open leads7 m
MV-IDAPE-DB15M-DB9FRJ45OPEN-ST-10m310102621DB15 male → DB9 female + RJ45 + open leads10 m
MV-IDA-PE-DB15-RJ45M/DB9/OPENS-ST-15101520791DB15 male → TB3B6P + DB9 female (DC jack) + RJ45 male15 m
MV-IDA-PE-HDB15-RJ45DB9Open-ST-15m310102106DB15 male → TB3B6P + DB9 female (DC jack) + RJ45 male15 m

DB15 reader connector (early series) — High-flex (HF)

Part numberPNConnectorsLength
MV-IDA-PE-HDB15-RJ45DB9Open-HF-5m310102109DB15 male → TB3B6P + DB9 female (DC jack) + RJ45 male5 m
MV-IDA-PE-HDB15M-RJ45M/DB9F/TB3B6P-HF-5m101522574DB15 male → TB3B6P + DB9 female (DC jack) + RJ45 male5 m
MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-5m310102622DB15 male → DB9 female + RJ45 + open leads5 m
MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-7m310102623DB15 male → DB9 female + RJ45 + open leads7 m
MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-10m310102624DB15 male → DB9 female + RJ45 + open leads10 m

Other breakouts — Standard (ST)

Part numberPNConnectorsLength
MV-IDA-PE-U2-U2-ST-2m101522133USB Type-A male → USB Type-B male2 m
MV-IDA-PE-Open9p-Open-ST-7m31010211110-pin terminal → open leads7 m
