Area camera · CB020 series

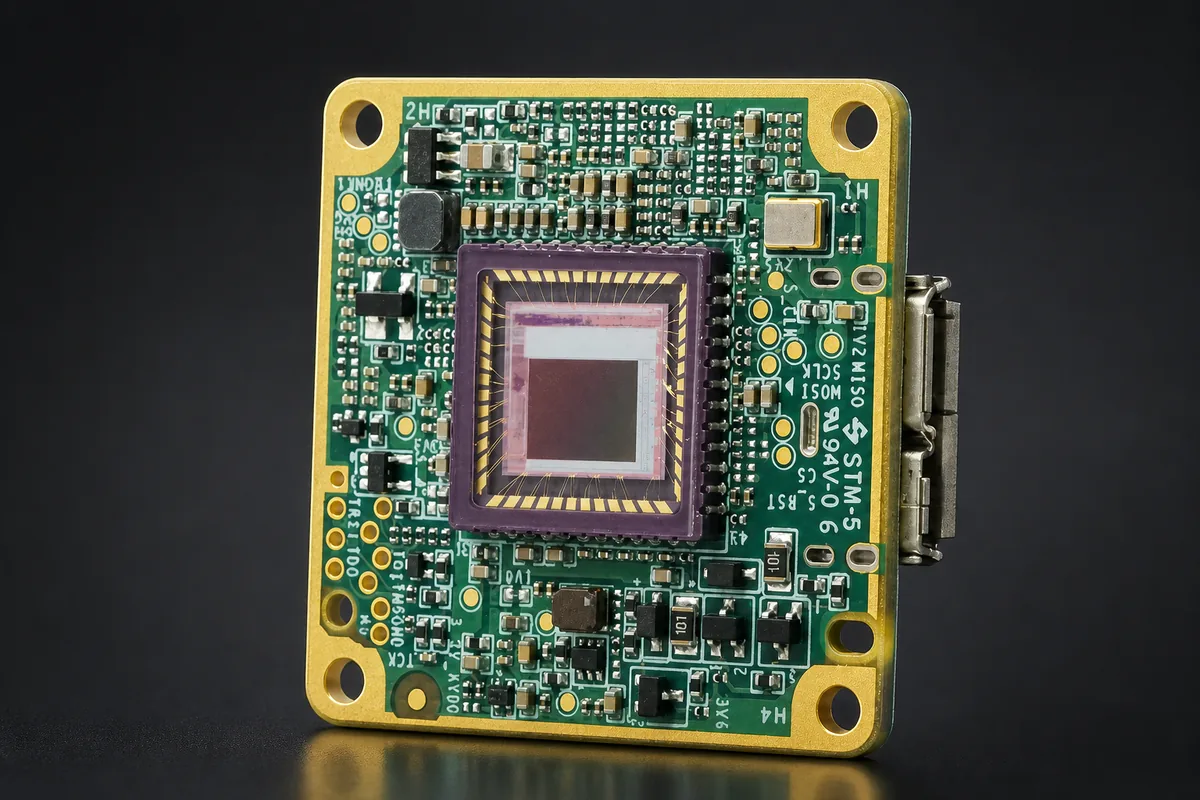

Hikrobot MV-CB020-60UC-C
1624 × 1240 pxStacked BSI179.9 fpsUSB 3.0
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS |
| Sensor model | Stacked BSI |
| Sensor format | 1/2.53″ |
| Resolution | 1624 × 1240 px |
| Maximum frame rate | 179.9 fps |
| Shutter | global shutter |
| Mono color | Color |
| Data interface | USB 3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Lens mount | None / C-mount / M12-mount |
| Power supply | USB 3.0 power supply |
| Power consumption | 1.6 W |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -30 to 80 °C |
| Humidity | 20% RH to 80% RH, no condensation |
| Weight | Approx. 10 g / Approx. 30 g |
| Usb 2.0 compatibility | True |
