Area camera · CH100 series

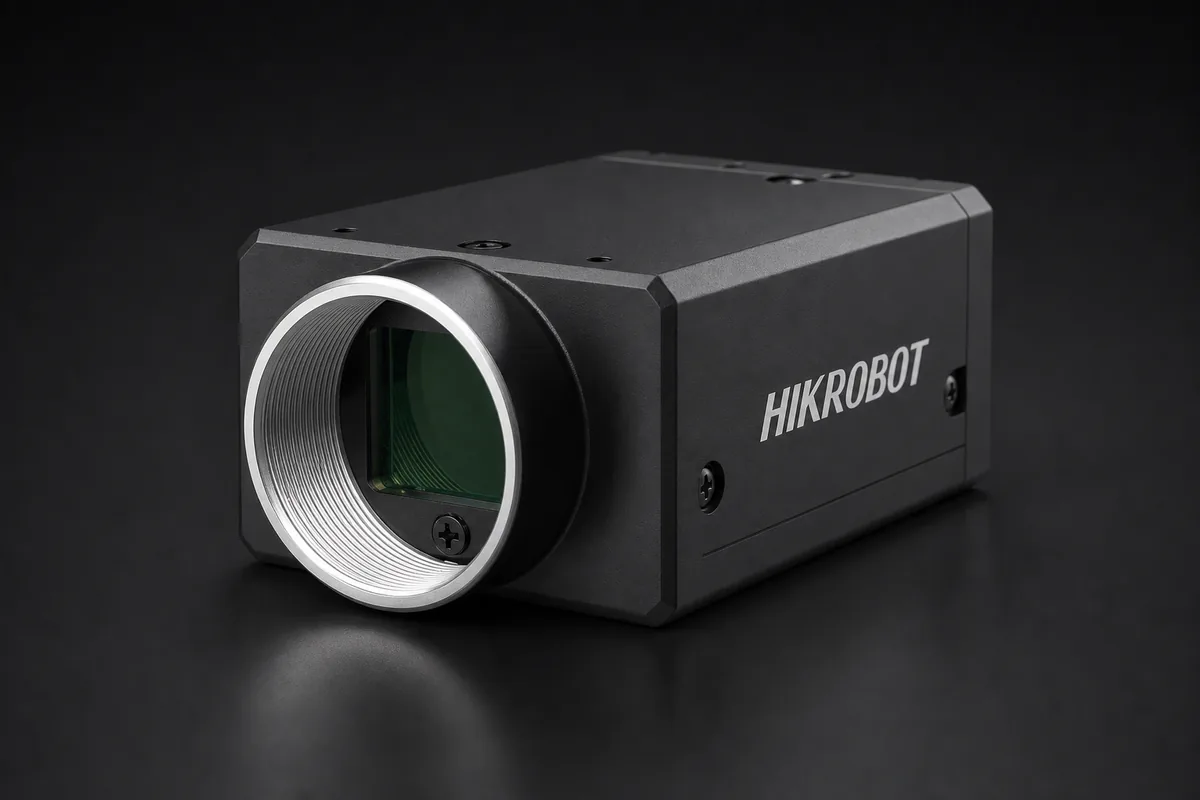

Hikrobot MV-CH100-60UM
4096 × 2460 pxStacked BSI36 fpsUSB 3.0, compatible with USB 2.0IP40
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Sensor format | 1″ |
| Resolution | 4096 × 2460 px |
| Pixel size | 3.45 × 3.45 µm |
| Maximum frame rate | 36 fps |
| Mono color | Mono |
| Exposure time | 80 μs to 10 sec |
| SNR | 43 dB |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector; opto-isolated input x1, opto-isolated output x1, bi-directional non-isolated I/O x1 |
| Lens mount | C-mount |
| Power supply | 9 VDC to 24 VDC; supports USB power supply |
| Power consumption | Typ. 3.6 W |
| Ingress protection | IP40 |
| Operating temperature | -10 to 50 °C |
| Storage temperature | -30 to 70 °C |
| Humidity | 20 to 95 % RH |
| Dimensions | 29 × 44 × 59 mm |
| Weight | 113 g |
| Compatibility | USB3 Vision, GenICam |
| Dynamic range | 58.2 dB |
| Gain range | 0 to 24 dB |
| Pixel format mono | Mono 8/10/10Packed/12/12Packed |
