Area camera · CH Series

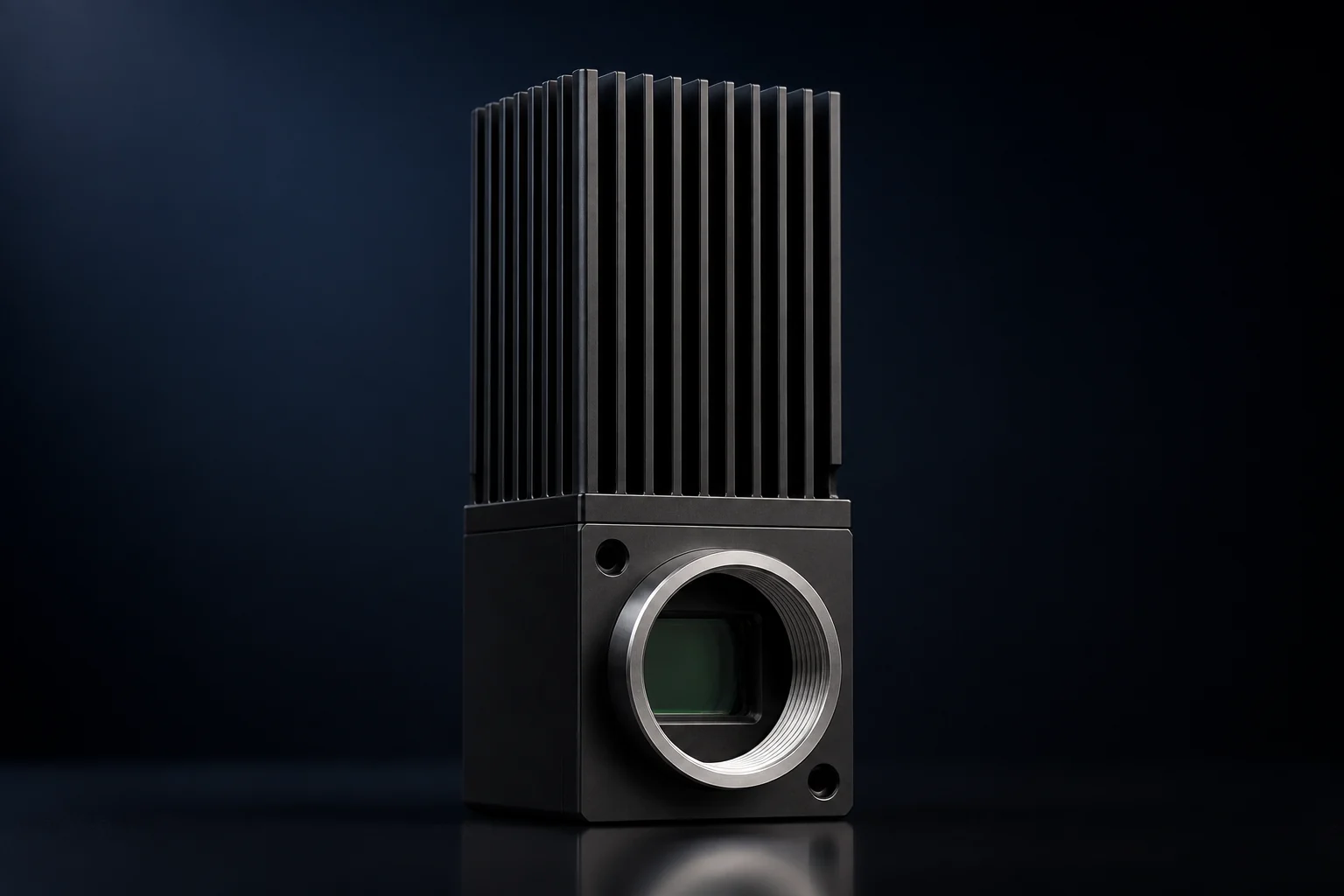

Hikrobot MV-CH120-90Y1C-NH
4096 × 3072Gpixel GMAX341293.9 fps @ 4096 × 3072 Bayer GB 8CoaXPress with Micro-BNC interfaceIP40
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Product type | 12.6 MP CoaXPress Area Scan Camera |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX3412 |
| Sensor format | 1.1″ |
| Resolution | 4096 × 3072 |
| Pixel size | 3.4 µm × 3.4 µm |
| Maximum frame rate | 93.9 fps @ 4096 × 3072 Bayer GB 8 |
| Mono color | Color |
| Dynamic range | 59.7 dB |
| Exposure time | 6 μs to 10 sec |
| Gain | 0 dB to 6.1 dB |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Lens mount | C-mount, optical back focal length 17.52 mm (0.7″) |
| Power supply | 12 VDC to 24 VDC, supports PoCXP |
| Power consumption | Typ. 5 W @ 12 VDC |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Dimensions | 29 mm × 85 mm × 42 mm (1.1″ × 3.3″ × 1.7″) |
| Weight | Approx. 170 g (0.4 lb.) |
| Certification | CE-EMC, KC |
| Compatibility | CoaXPress, GenICam |
| Cooling | With heat sink |
