CoaXPress CXP-6 and CXP-12 cables (MV-ACXP)

CoaXPress

CoaXPress cables for high-resolution Hikrobot cameras: CXP-6 and CXP-12, DIN and HD-BNC connectors, high-flex construction. Lane count depends on the camera and frame grabber — confirm the configuration with an engineer.

Price on requestAn engineer will confirm pricing and lead time in the first reply.
Find the right model

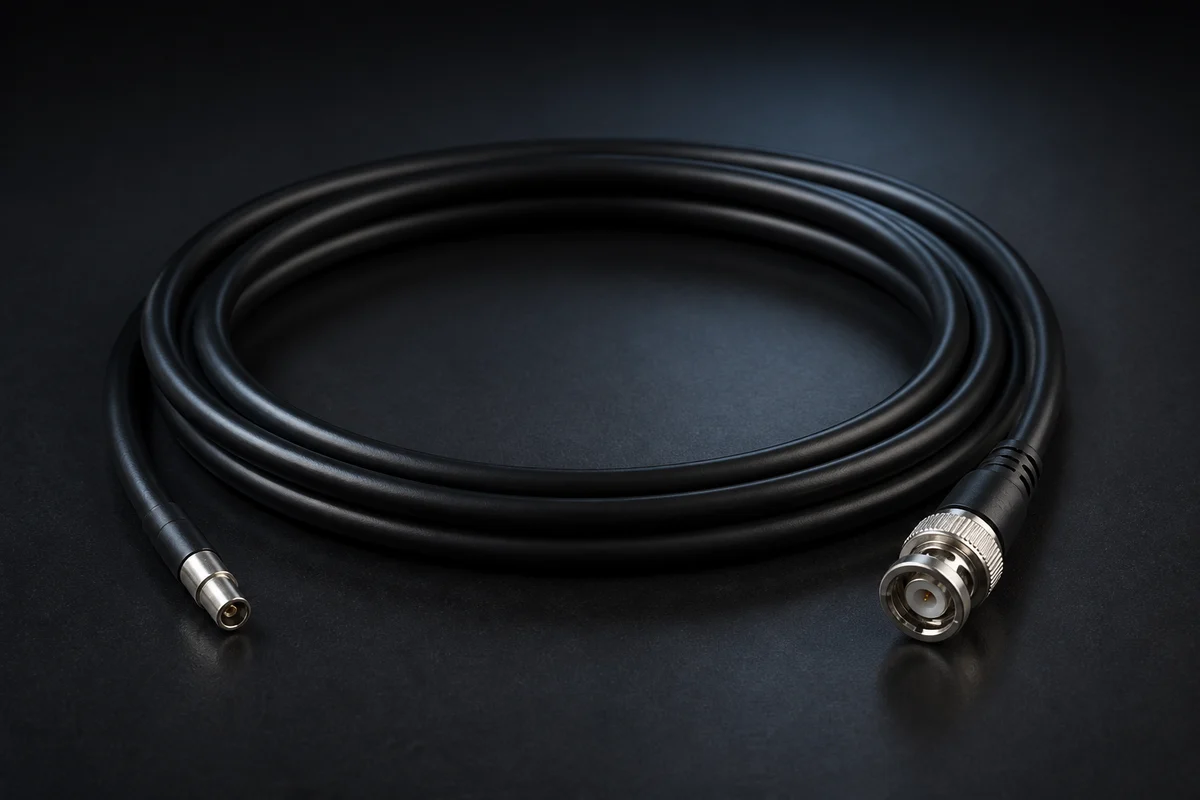

Hikrobot CoaXPress CXP-6 and CXP-12 cables (MV-ACXP)

Part numbers and versions

Standard (ST)

Part numberPNConnectorsLength
MV-ACXP12-HDBNC-HDBNC-ST-3m310100820HD-BNC → HD-BNC3 m
MV-ACXP6-DIN-BNC-ST-3m310100887DIN → BNC3 m
MV-ACXP6-DIN-DIN-ST-3m310100884DIN → DIN3 m
MV-ACXP12-HDBNC-HDBNC-ST-5m310100821HD-BNC → HD-BNC5 m
MV-ACXP6-DIN-BNC-ST-5m310100888DIN → BNC5 m
MV-ACXP6-DIN-DIN-ST-5m310100885DIN → DIN5 m
MV-ACXP6-DIN(up)-DIN-ST-8m310102556DIN → DIN (upward-facing connector)8 m
MV-ACXP12-HDBNC-HDBNC-ST-10m310100822HD-BNC → HD-BNC10 m
MV-ACXP6-DIN-BNC-ST-10m310100889DIN → BNC10 m
MV-ACXP6-DIN-DIN-ST-10m310100886DIN → DIN10 m

High-flex (HF)

Part numberPNConnectorsLength
MV-ACXP6-DIN(up)-DIN-HF-1.5m310102282DIN → DIN (upward-facing connector)1.5 m
MV-ACXP12-HDBNC(up)-HDBNC-HF-3m310102202HD-BNC → HD-BNC (upward-facing connector)3 m
MV-ACXP12-HDBNC-HDBNC-HF-3m310100919HD-BNC → HD-BNC3 m
MV-ACXP6-DIN(up)-DIN-HF-3m310102283DIN → DIN (upward-facing connector)3 m
MV-ACXP6-DIN-BNC-HF-3m310100913DIN → BNC3 m
MV-ACXP6-DIN-DIN-HF-3m310100910DIN → DIN3 m
MV-ACXP6-DIN-HDBNC(up)-HF-3m310102661DIN → HD-BNC (upward-facing connector)3 m
MV-ACXP6-DIN-HDBNC-HF-3m310100916DIN → HD-BNC3 m
MV-ACXP12-HDBNC(up)-HDBNC-HF-4m310102203HD-BNC → HD-BNC (upward-facing connector)4 m
MV-ACXP12-HDBNC-HDBNC-HF-4m310102201HD-BNC → HD-BNC4 m
MV-ACXP12-HDBNC-HDBNC-HF-5m310100920HD-BNC → HD-BNC5 m
MV-ACXP6-DIN(up)-DIN-HF-5m310102284DIN → DIN (upward-facing connector)5 m
MV-ACXP6-DIN-BNC-HF-5m310100914DIN → BNC5 m
MV-ACXP6-DIN-DIN-HF-5m310100911DIN → DIN5 m
MV-ACXP6-DIN-HDBNC(up)-HF-5m310102662DIN → HD-BNC (upward-facing connector)5 m
MV-ACXP6-DIN-HDBNC-HF-5m310100917DIN → HD-BNC5 m
MV-ACXP12-HDBNC-HDBNC-HF-7m310102096HD-BNC → HD-BNC7 m
MV-ACXP6-DIN-HDBNC-HF-7m310102664DIN → HD-BNC7 m
MV-ACXP6-DIN(up)-DIN-HF-8m310102285DIN → DIN (upward-facing connector)8 m
MV-ACXP12-HDBNC(up)-HDBNC-HF-10m310102828HD-BNC → HD-BNC (upward-facing connector)10 m
MV-ACXP12-HDBNC-HDBNC-HF-10m310100921HD-BNC → HD-BNC10 m
MV-ACXP6-DIN-BNC-HF-10m310100915DIN → BNC10 m
MV-ACXP6-DIN-DIN-HF-10m310100912DIN → DIN10 m
MV-ACXP6-DIN-HDBNC(up)-HF-10m310102663DIN → HD-BNC (upward-facing connector)10 m
MV-ACXP6-DIN-HDBNC-HF-10m310100918DIN → HD-BNC10 m
MV-ACXP12-HDBNC(up)-HDBNC-HF-15m310103029HD-BNC → HD-BNC (upward-facing connector)15 m

Compatible cameras and code readers

MV-CH050-90XM-C-NNMV-CH140-90YM-M58S-NFMV-CH1510-10XM-M72-NFMV-CH1510-11XM-M72-TFMV-CH210-90YM-M58S-NNMV-CH2450-10YM-M72-TFMV-CH6040-10XM-M72-NFMV-CH650-90XM-F-NF

Fits every camera with a CoaXPress interface:

Area scan cameras
