Area camera · CH320 series

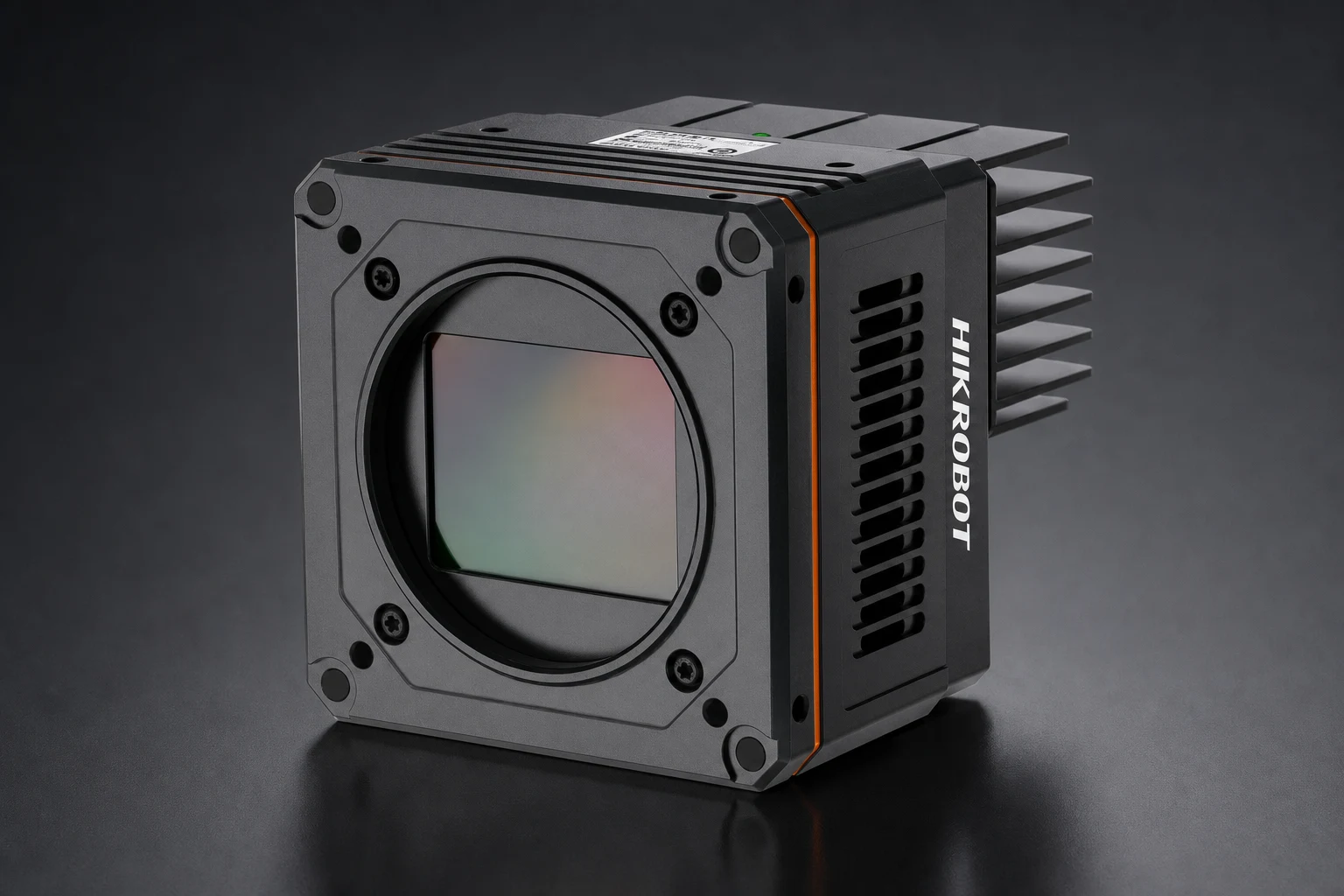

Hikrobot MV-CH320-60TM-M58S-NN
7744 × 4336 pxStacked BSI30 fps10 Gigabit EthernetIP40 (under proper lens installation and wiring)
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, rolling shutter |
| Sensor model | Stacked BSI |
| Sensor format | 22.6 × 12.7 mm |
| Resolution | 7744 × 4336 px |
| Pixel size | 2.9 × 2.9 µm |
| Maximum frame rate | 30 fps |
| Mono color | Mono |
| Exposure time | 12 µs to 10 s |
| Gain | 0 to 24 dB |
| SNR | 41 dB |
| Data interface | 10 Gigabit Ethernet, compatible with Gigabit Ethernet |
| Digital I/O | 12-pin P10; opto-isolated input × 1, opto-isolated output × 1, bi-directional non-isolated I/O × 1, RS-232 × 1 |
| Lens mount | M58×0.75 |
| Power supply | 9 to 24 VDC |
| Power consumption | Typ. 10.6 W @12 VDC (TM); Typ. 11.2 W @12 VDC (TC) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -30 to 80 °C |
| Humidity | 20% RH to 95% RH, no condensation |
| Dimensions | 84 × 84 × 92.5 mm |
| Weight | 600 g |
| Dynamic range | 70.6 dB |
| Flange back length | 11.48 mm |
