3D stereo camera · DB7000 series

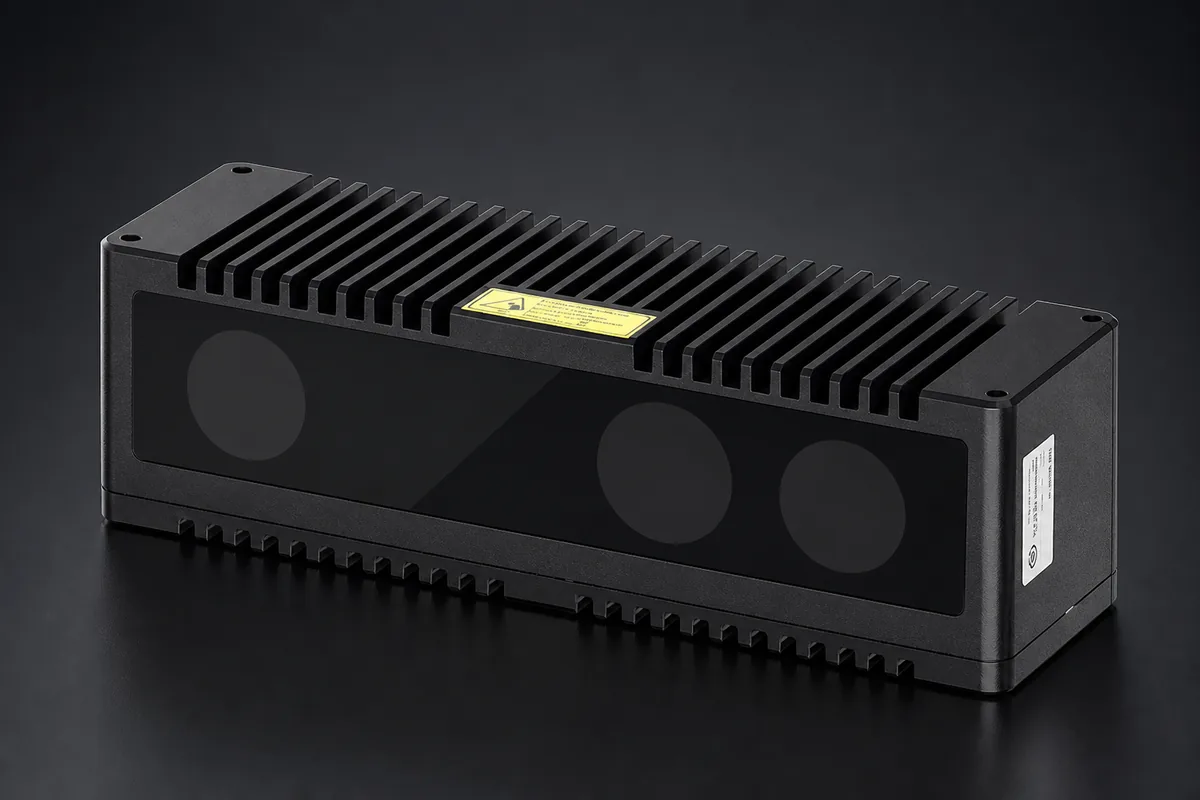

Hikrobot MV-DB700S-C V3.0
Depth 1408 × 1024 @ 30 fps; RGB 1536 × 1280 @ 30 fpsGigabit Ethernet (1000 Mbit/s)IP65
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Resolution | Depth 1408 × 1024 @ 30 fps; RGB 1536 × 1280 @ 30 fps |
| Scan frame rate | 30 fps |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 interface; opto-isolated input ×3, output ×3 |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | 8.2 W @ 24 VDC |
| Ingress protection | IP65 |
| Operating temperature | 0 to 45 °C |
| Storage temperature | -30 to 80 °C |
| Humidity | 20% to 85% RH (no condensation) |
| Dimensions | 184 × 55 × 53 mm |
| Weight | 700 g |
| Near field of view | 590 × 470 mm |
| Far field of view | 2200 × 1500 mm |
| Clearance distance (cd) | 300 mm |
| Measurement range (mr) | 700 mm |
| Object detection range | 50 × 50 × 10 to 450 × 450 × 200 at 500 mm installation height |
| Depth image detection accuracy | Z: 2.5 mm @ 0.5 m; 5 mm @ 1 m |
| Laser safety class | Class 1 |
| Color image detection accuracy | X,Y 2.6 mm @ 1 m |
