3D laser profile sensor · DP4000 series

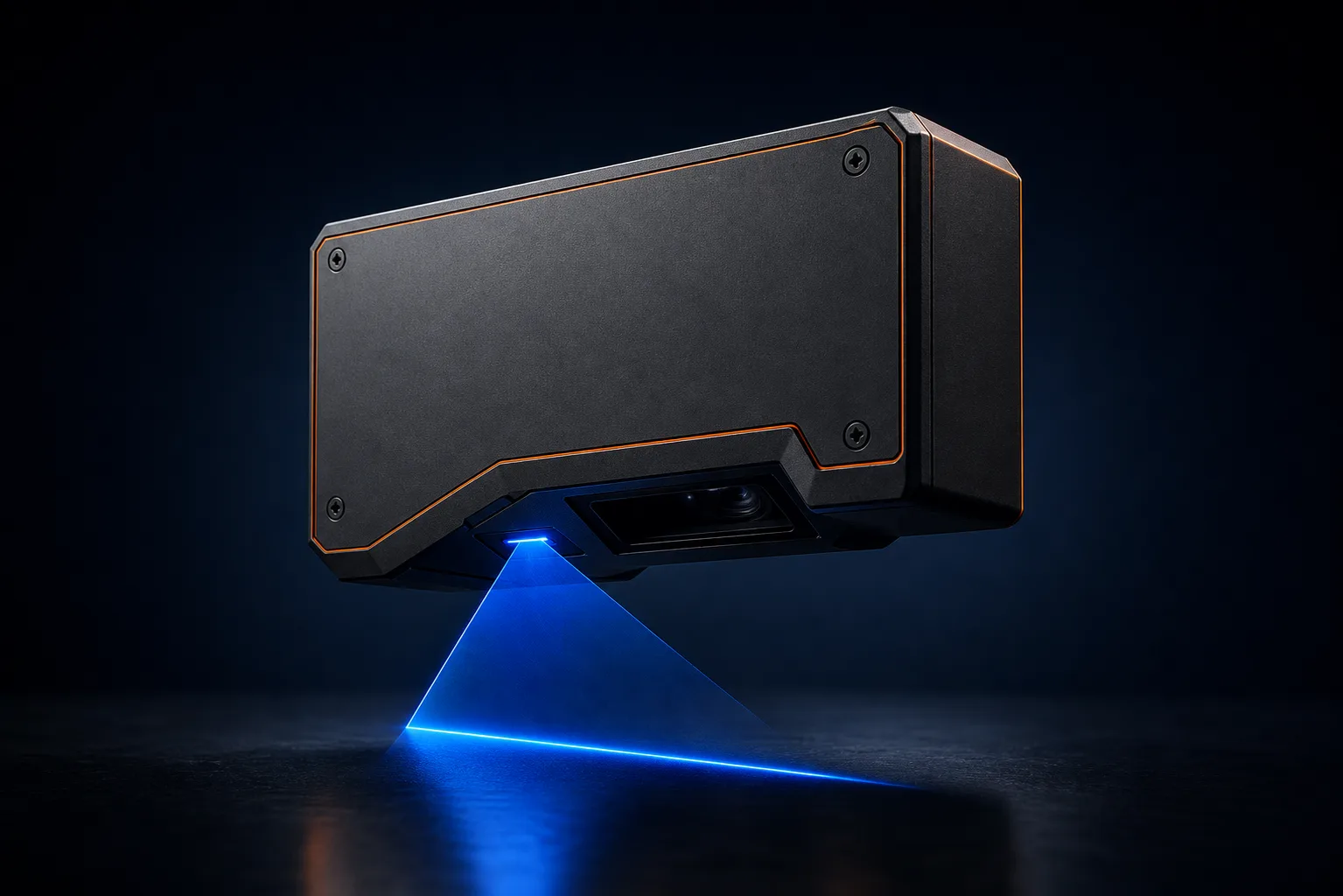

Hikrobot MV-DP4020-01P
Gigabit Ethernet (1000 Mbit/s)IP67
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Scan frame rate | 2.5 kHz |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface; differential input × 3, differential output × 1, RS-232 × 1 |
| Wavelength | 405 nm |
| Reference distance | 22.6 mm |
| Power supply | 24 VDC |
| Power consumption | 20.6 W |
| Ingress protection | IP67 |
| Operating temperature | 0 to 45 °C |
| Storage temperature | -30 to 80 °C |
| Humidity | 20 to 85 % RH |
| Dimensions | 129 × 125 × 69 mm |
| Weight | 1330 g |
| Data points per profile | 4080 |
| Measurement range (z axis) | 5.2 mm |
| Measurement range (x axis) near field of view | 13.5 mm |
| Measurement range (x axis) reference distance | 14 mm |
| Measurement range (x axis) far field of view | 14.5 mm |
| Resolution (z axis) | 0.41 to 0.58 μm |
| Repeatability (z axis) | 0.15 μm |
| Profile data interval | 3.3 to 3.9 µm |
| Max scan rate (ROI) | 49 kHz |
| Data output | Profile data, depth image, brightness image |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | Class 3B |
