FA lens · KF series

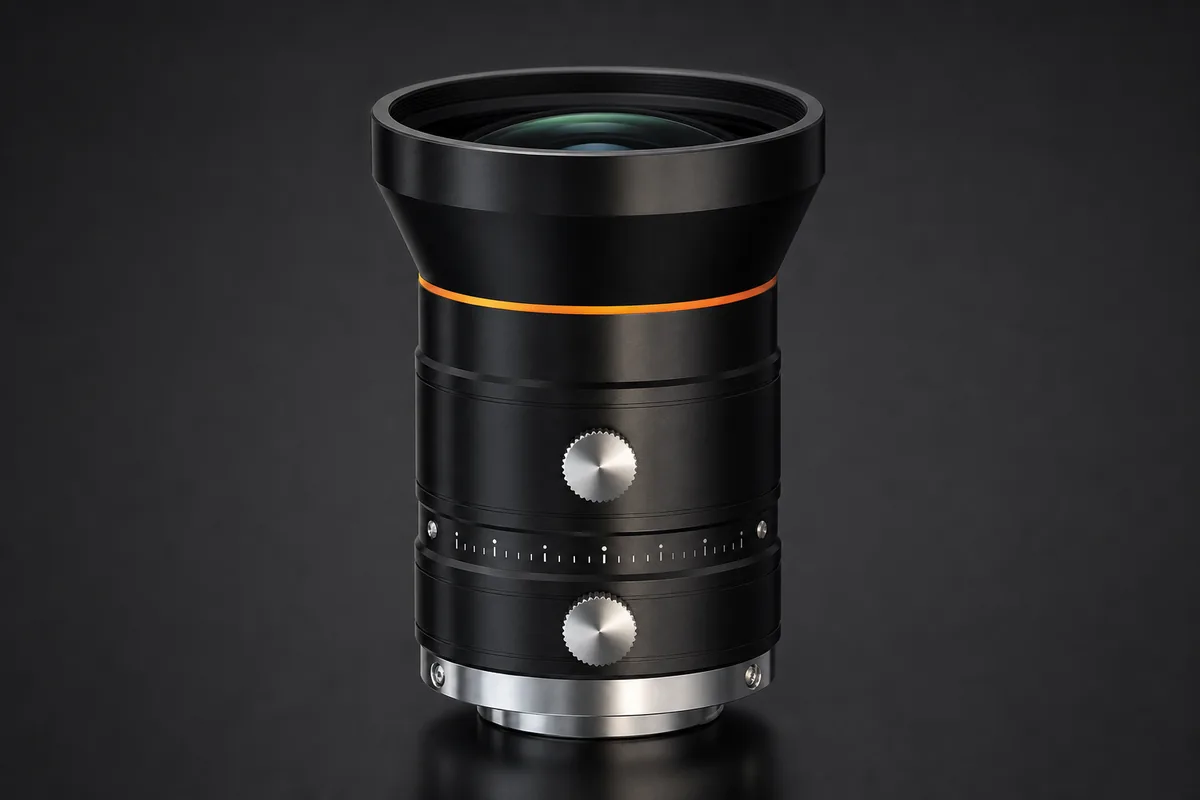

Hikrobot MVL-KF1628M-12MPE
16 mm
The manufacturer is transitioning this series to newer line-ups. The model is on the current price list — an engineer will confirm availability, lead time and the current successor in the first reply.
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Mount | C-mount |
| Focal length | 16 mm |
| Aperture | F2.8 to F16 |
| Image circle | Ø 17.6 mm (1.1″) |
| Minimum object distance (MOD) | 0.1 m |
| Operating temperature | –10°C to 50°C |
| Dimensions | Ø 45.6 mm × 68.2 mm |
| Weight | 189 g |
| Certification | RoHS 2.0 |
| Distortion | 0.15 % |
| Field of view diagonal | 55.6 ° |
| Field of view horizontal | 45.8 ° |
| Field of view vertical | 35.3 ° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M43 × 0.75 |
| Flange back length | 17.526 mm |
