Area camera · CH140 series

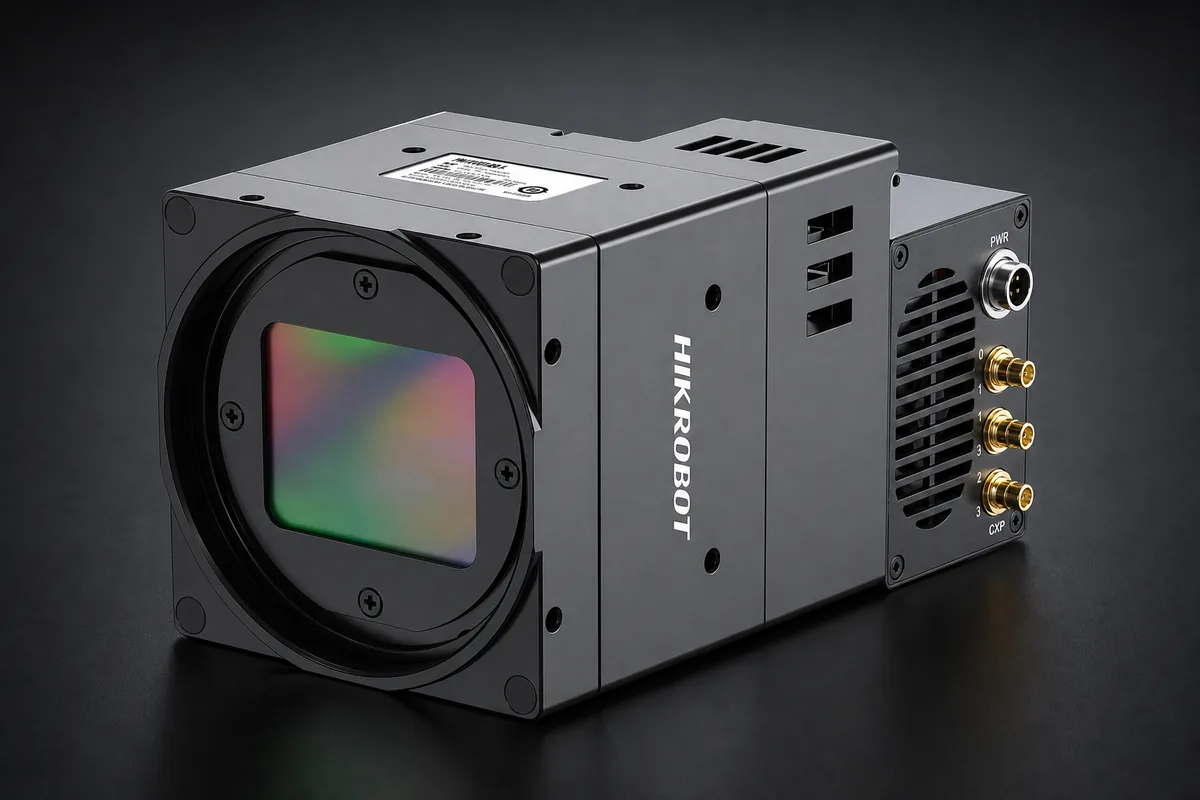

Hikrobot MV-CH140-90YM-M58S-NF
4608 × 3072 pxGpixel Gsprint 5514339 fpsCoaXPress with Micro-BNC interfaceIP40
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel Gsprint 5514 |
| Resolution | 4608 × 3072 px |
| Pixel size | 5.5 × 5.5 µm |
| Maximum frame rate | 339 fps |
| Mono color | Mono |
| SNR | 44.7 dB |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector; opto-isolated input ×1, opto-isolated output ×1, bi-directional non-isolated I/O ×1, RS-232 ×1 |
| Lens mount | M58 × 0.75 |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 15.1 W @ 24 VDC |
| Power consumption typ | 14.2 W |
| Ingress protection | IP40 |
| Operating temperature | 0 to 50 °C |
| Humidity | 20 to 95 % RH |
| Dimensions | 60 × 60 × 77 mm |
| Weight | Approx. 790 g |
| Compatibility | CoaXPress, GenICam |
| Power over cxp | True |
| Flange back length | 11.48 mm |
| Dynamic range | 75 dB |
