Area camera · CH245 series

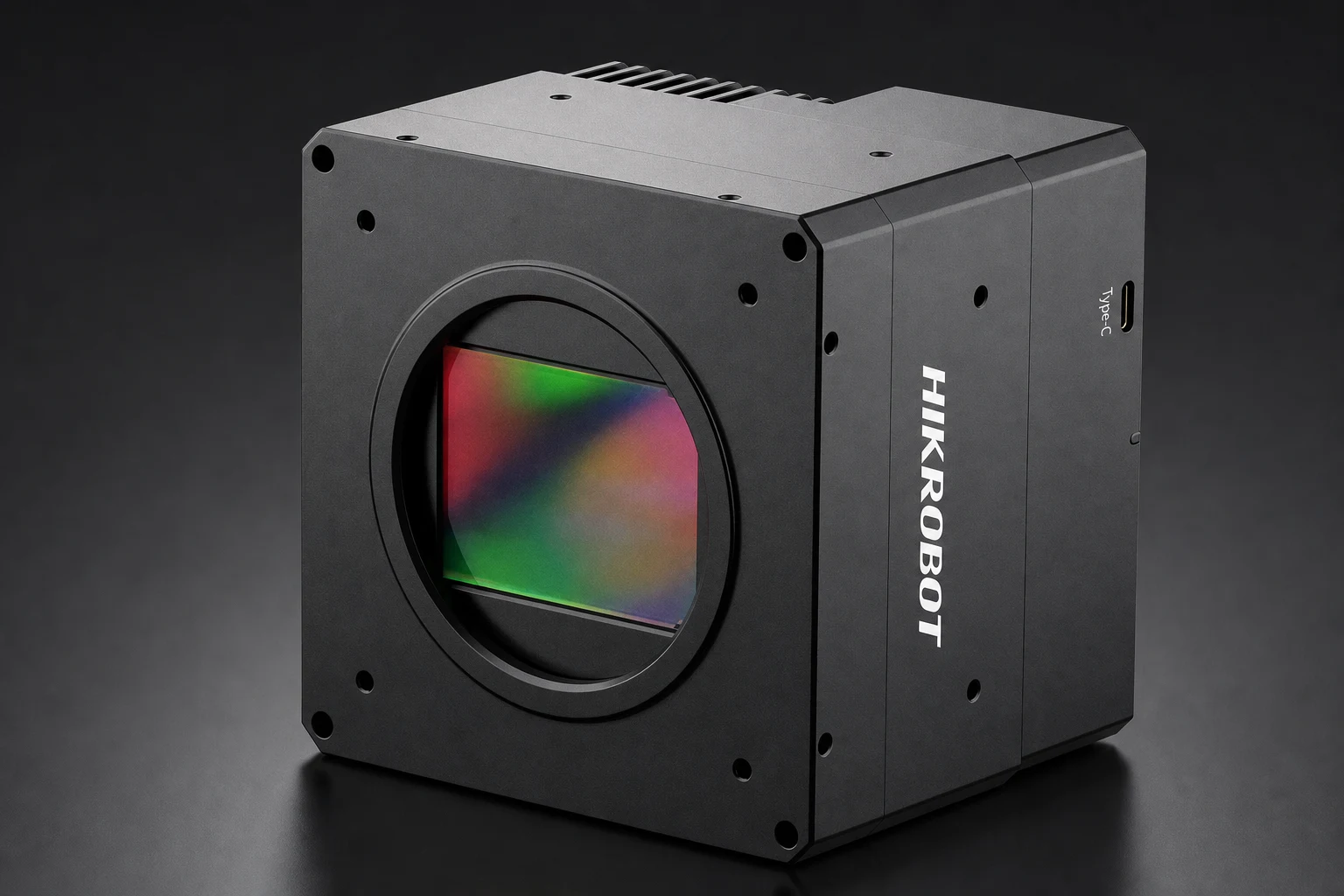

Hikrobot MV-CH2450-10YM-M72-TF
19200 × 12800 pxSony IMX81112.4 fpsCoaXPress with HDBNC interfaceIP40
Price on requestAn engineer will confirm pricing and lead time in the first reply.
Specifications
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX811 |
| Sensor format | 64.84 mm |
| Resolution | 19200 × 12800 px |
| Pixel size | 2.81 × 2.81 µm |
| Maximum frame rate | 12.4 fps |
| Mono color | Mono |
| Exposure time | 98 µs to 60 sec |
| Gain | 0 to 24 dB |
| SNR | 44.1 / 44.2 dB mono/color |
| Data interface | CoaXPress with HDBNC interface |
| Lens mount | M72×0.75 |
| Power supply | 24 VDC |
| Power consumption | 19 W non-cooling; 33 W cooling @ 24 VDC W @ 24 VDC |
| Ingress protection | IP40 |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -30 to 80 °C |
| Humidity | 20 to 95 % RH |
| Dimensions | 100 × 100 × 82 mm |
| Weight | 1216.9 g approx. |
| Dynamic range | 71.9 / 71.8 dB mono/color |
| Flange back length | 19.55 mm |
